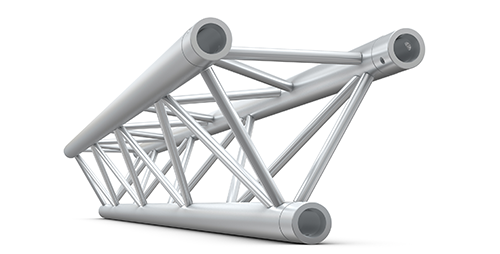

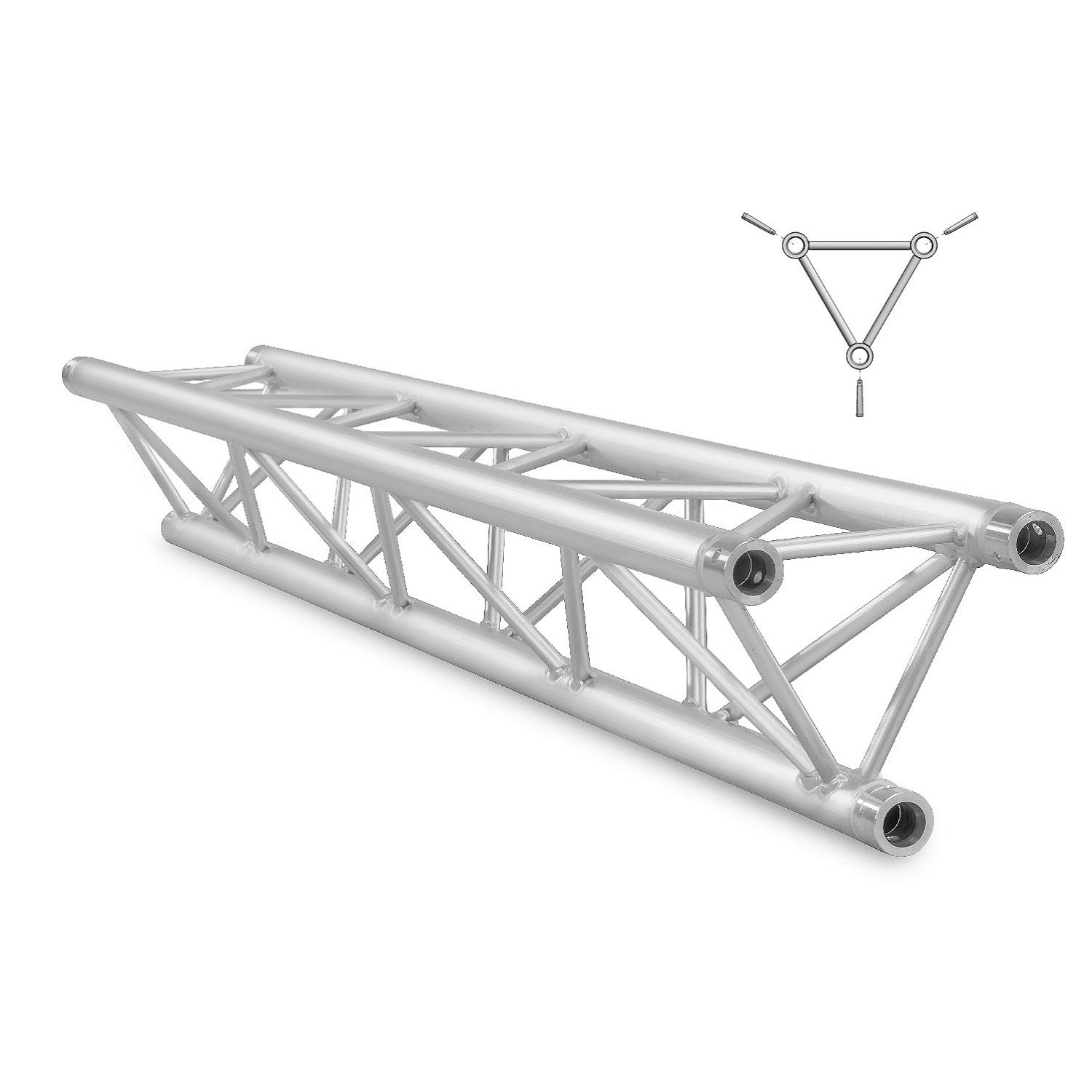

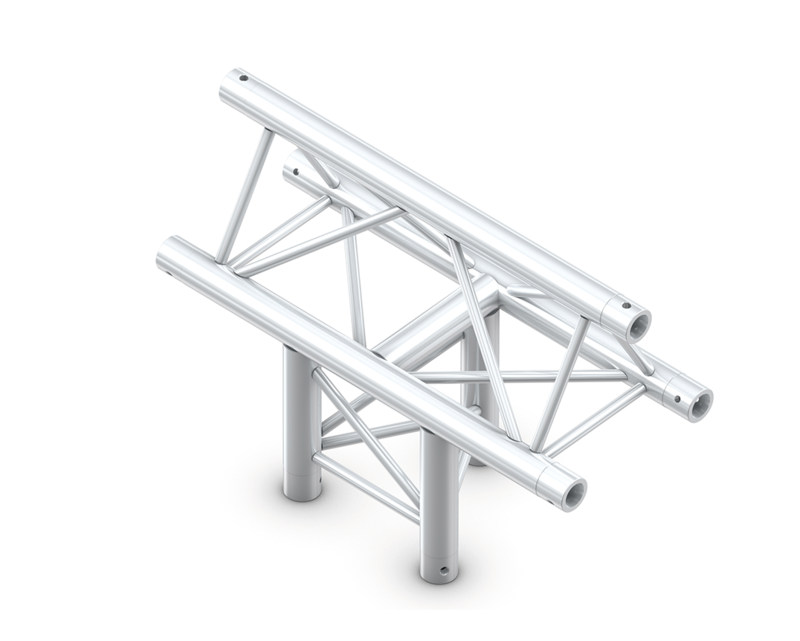

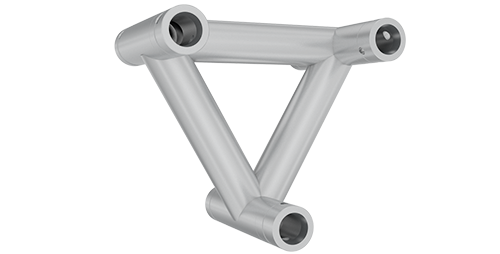

M290 - Mid range system - Trio z

Stlylish modular pipe & drape solution compatible with 200/400/500/600 series cell clamps and Xtruss accessories
Select format:
QuatroTrioDuo
Select load:
RegularHeavy duty
Code
STB, STF, STU
Main Tube
1.97 x 0.08 inch
Braces
0.63 x 0.08 inch
STU: 0,78 x 0,08 inch
Available Length
1.64 - 16.41 ft
Max. SWL
2222.26 lbs
Size
11.41 x 10.11 inch
Span
52.50 ft

Download PDF

Basic info

Description

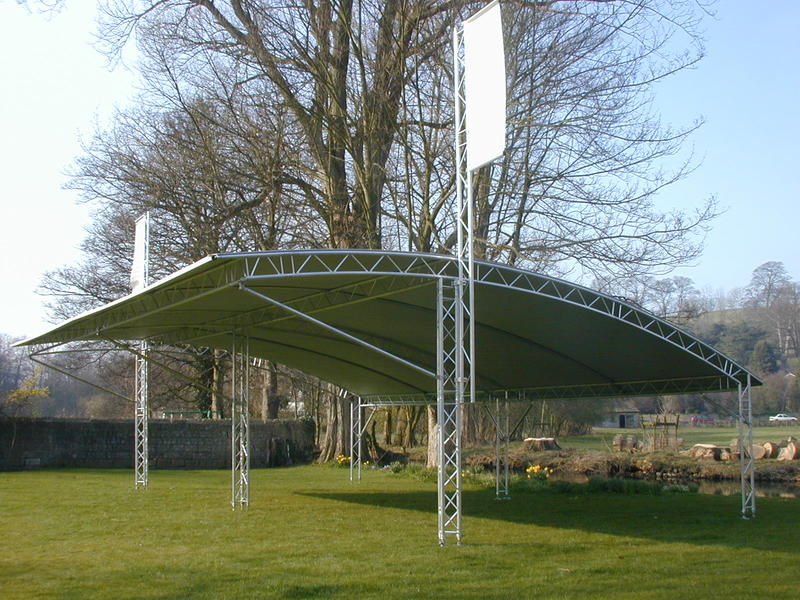

The M290 system is our mid-sized stage truss line that can be used for both small and large applications. The M290 aluminum truss comes in a "B" and "V" range, which are designed for both large and small applications. The "V" Range is for heavy duty use, while the "B" Range is for medium duty use. Both trussing systems offer excellent spanning and weight loading capabilities while providing a decorative touch!
Call or e-mail us today for more information or to request a quote.

Key benefits

  • Certified 50mm tube M290 Series modular truss range
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Interior & exterior applications
  • Connection kit supplied with every truss length & junction
  • Durable construction with diagonal anti-twist end brace
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Fast connection for quick, simple and secure assembly
  • x.Truss accessories compatible
  • Powder coat colour finish available on request

Tables

M290 Regular - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 3.31 lbs 7.39 lbs 11.02 lbs 13.23 lbs 16.53 lbs 19.84 lbs 26.46 lbs 33.07 lbs
Trio 4.96 lbs 9.92 lbs 14.99 lbs 19.84 lbs 24.8 lbs 29.76 lbs 39.68 lbs 49.6 lbs
Quatro 6.5 lbs 13.01 lbs 19.62 lbs 26.01 lbs 32.52 lbs 39.02 lbs 52.03 lbs 65.04 lbs
M290 Heavy Duty - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 3.64 lbs 8.49 lbs 12.79 lbs 14.55 lbs 17.64 lbs 21.83 lbs 29.1 lbs 36.38 lbs
Trio 5.51 lbs 11.02 lbs 16.53 lbs 22.05 lbs 27.56 lbs 33.07 lbs 44.09 lbs 55.12 lbs
Quatro 7.05 lbs 17.64 lbs 25.35 lbs 28.22 lbs 35.27 lbs 42.33 lbs 56.44 lbs 70.55 lbs
