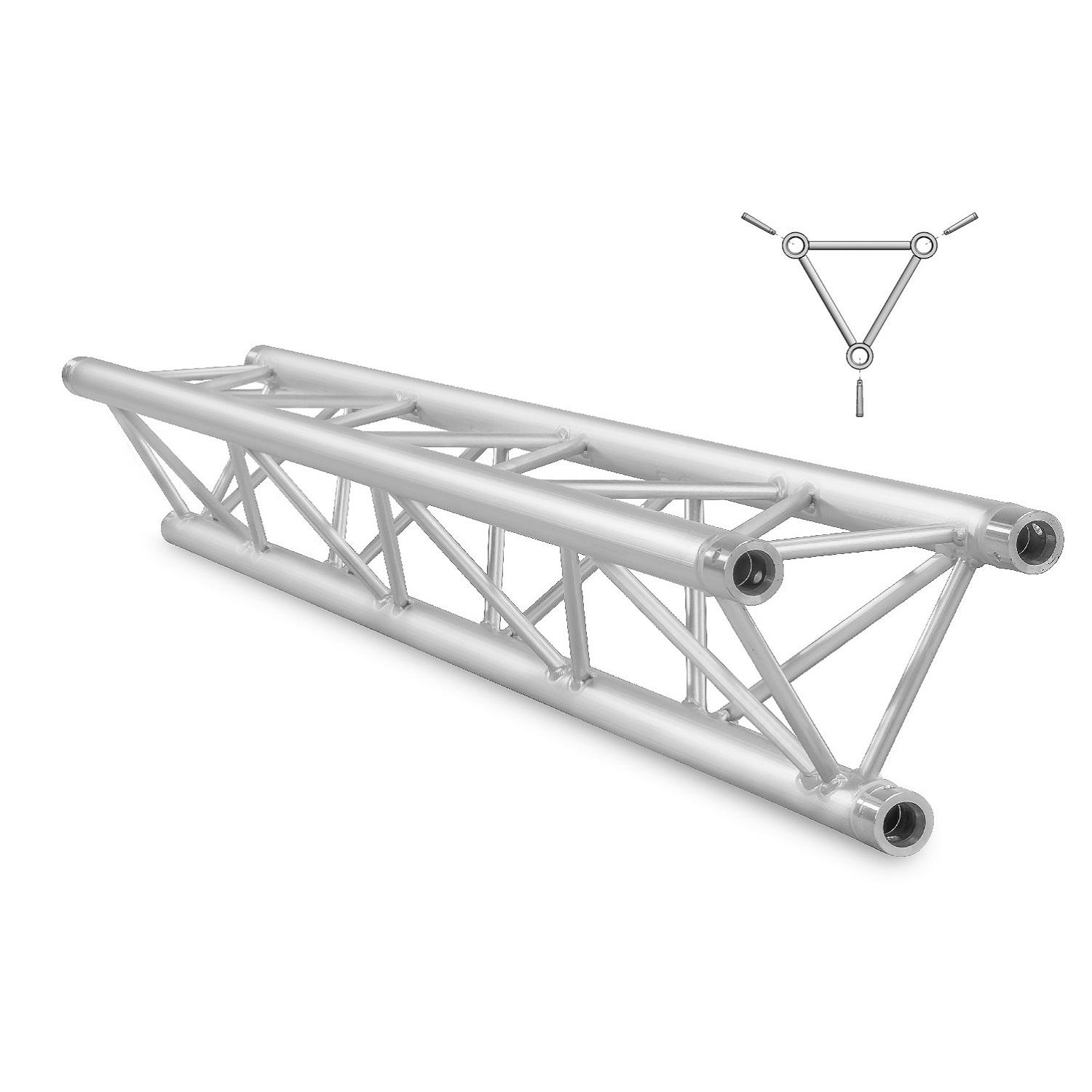

M290 - Mid range system - Trio z

Stlylish modular pipe & drape solution compatible with 200/400/500/600 series cell clamps and Xtruss accessories
Available colors:
Code
STV
Main Tube
1.89 x 0.12 inch
Braces
0.62 x 0.08 inch
STVU: 0,78 x 0,08 inch
Available Length
1.64 - 16.41 ft
Max. SWL
2777.82 lbs
Size
11.33 x 10.03 inch
Span
65.61 ft
M290 - Mid range system - Trio  z
M290 - Mid range system - Trio  z

Detailed information

Description

The M290 system is our mid-sized stage truss line that can be used for both small and large applications. The M290 aluminum truss comes in a "B" and "V" range, which are designed for both large and small applications. The "V" Range is for heavy duty use, while the "B" Range is for medium duty use. Both trussing systems offer excellent spanning and weight loading capabilities while providing a decorative touch!
Call or e-mail us today for more information or to request a quote.

Key benefits

  • Certified 48mm tube heavy-duty M290 Series truss range
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Keystone system used within PA & Rigging Towers & Roofs
  • Connection kit supplied with every truss length & junction

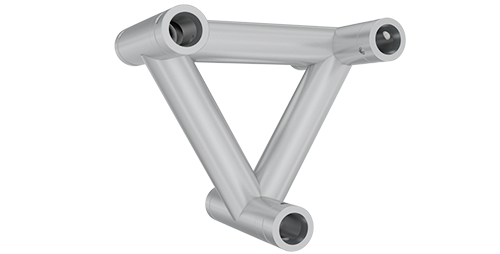

  • Durable construction with diagonal anti-twist end brace
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Fast connection for quick, simple and secure assembly
  • Xtruss accessories compatible
  • Powder coat colour finish available on request
M290 Regular - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 3.52 lbs 5.73 lbs 7.94 lbs 9.92 lbs 11.90 lbs 14.55 lbs 18.29 lbs 22.71 lbs
Trio 5.73 lbs 9.47 lbs 13.22 lbs 16.98 lbs 20.06 lbs 23.81 lbs 31.09 lbs 39.68 lbs
Quatro 6.5 lbs 13.01 lbs 19.62 lbs 26.01 lbs 32.52 lbs 39.02 lbs 52.03 lbs 65.04 lbs
M290 Heavy Duty - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 3.96 lbs 6.83 lbs 9.57 lbs 12.57 lbs  15.21 lbs 18.07 lbs 23.70 lbs 29.34 lbs
Trio 6.39 lbs 11.02 lbs 15.65 lbs 20.50 lbs 25.13 lbs 29.76 lbs 39.68 lbs 48.50 lbs
Quatro 8.59 lbs 15.43 lbs 21.83 lbs 27.56 lbs 33.28 lbs 40.35 lbs 52.91 lbs 65.48 lbs

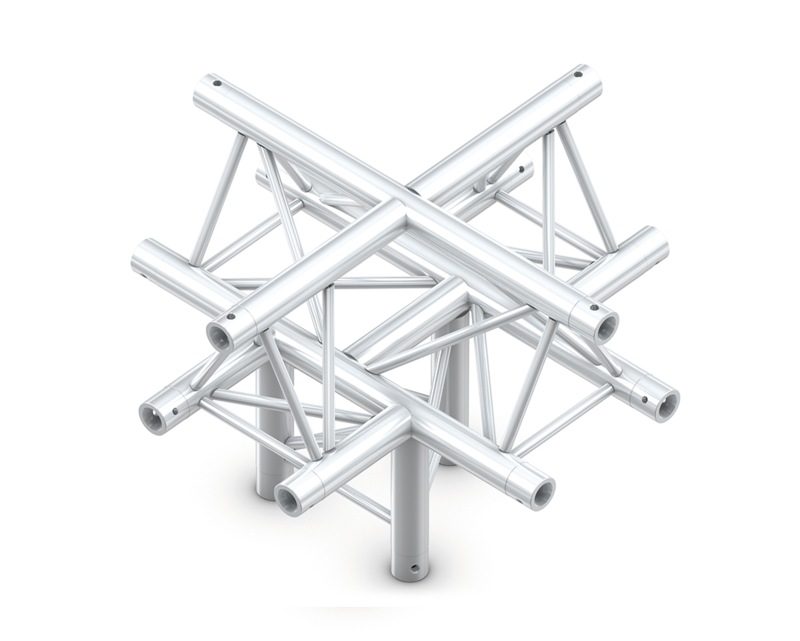

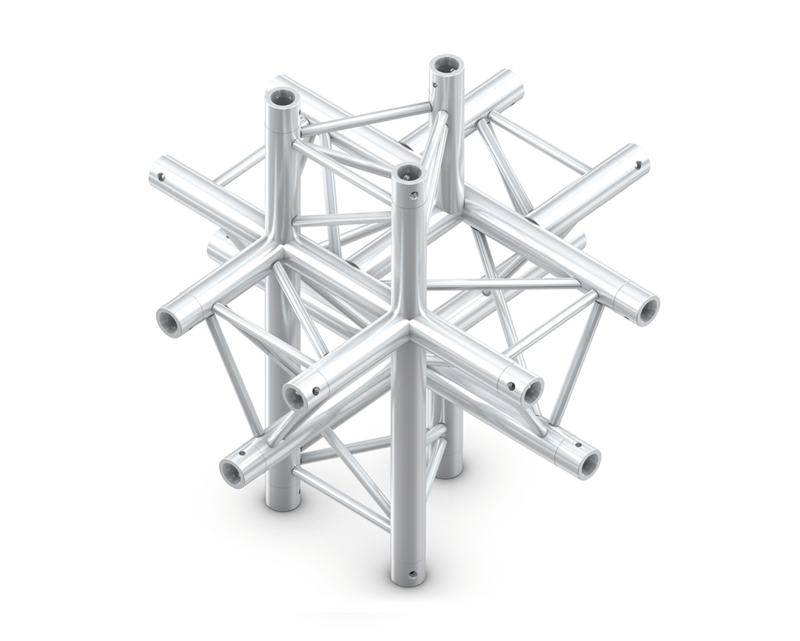

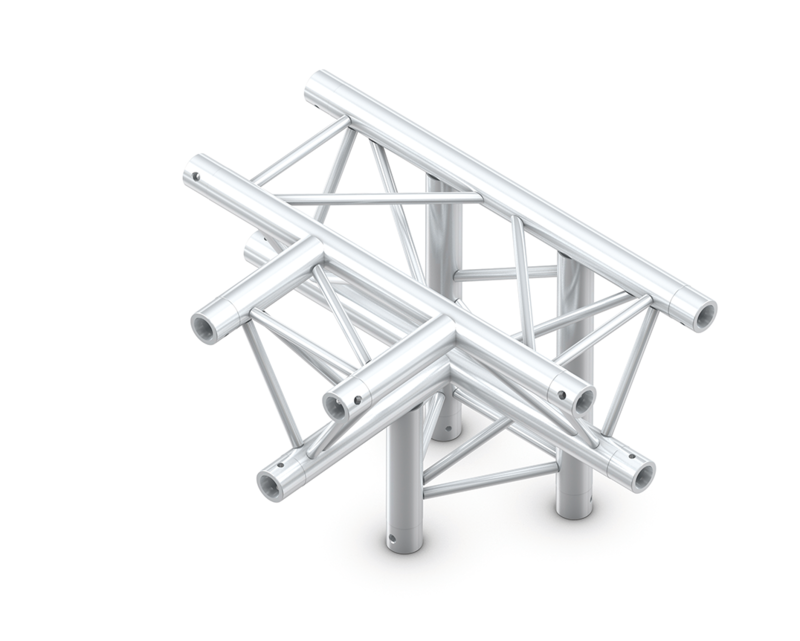

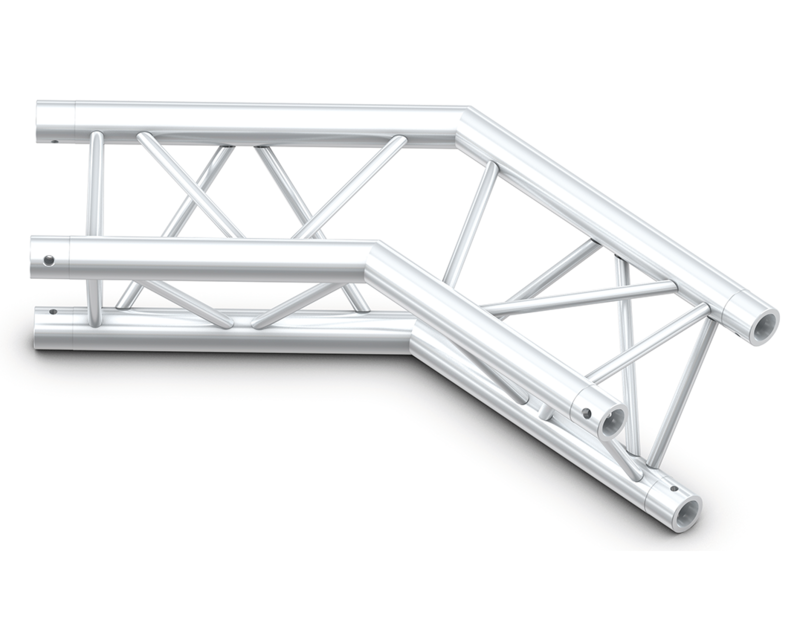

Accessories
