MT-PA5030 PA Tower (300 kg)

Compact PA fly tower for smaller, indoor or outdoor live event systems.
16.4 ft
Max. SWL
660 lbs

Download PDF

Basic info

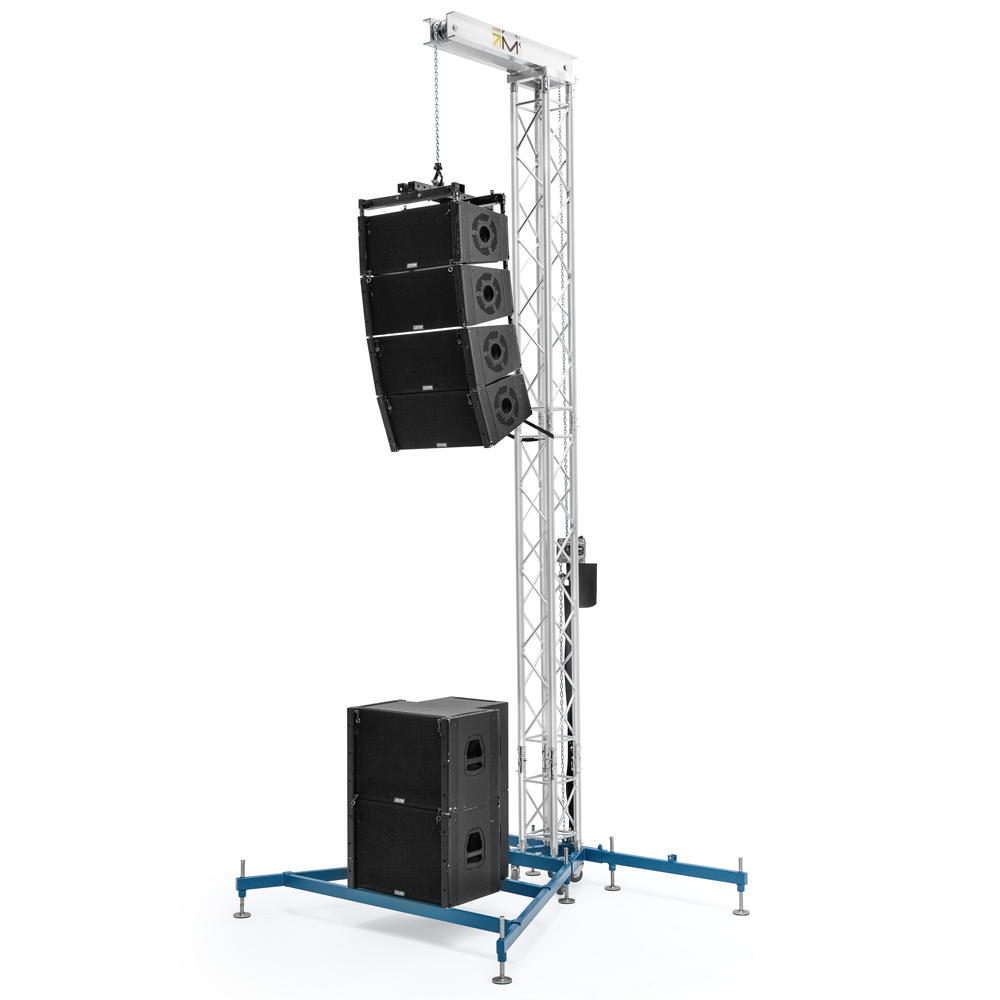

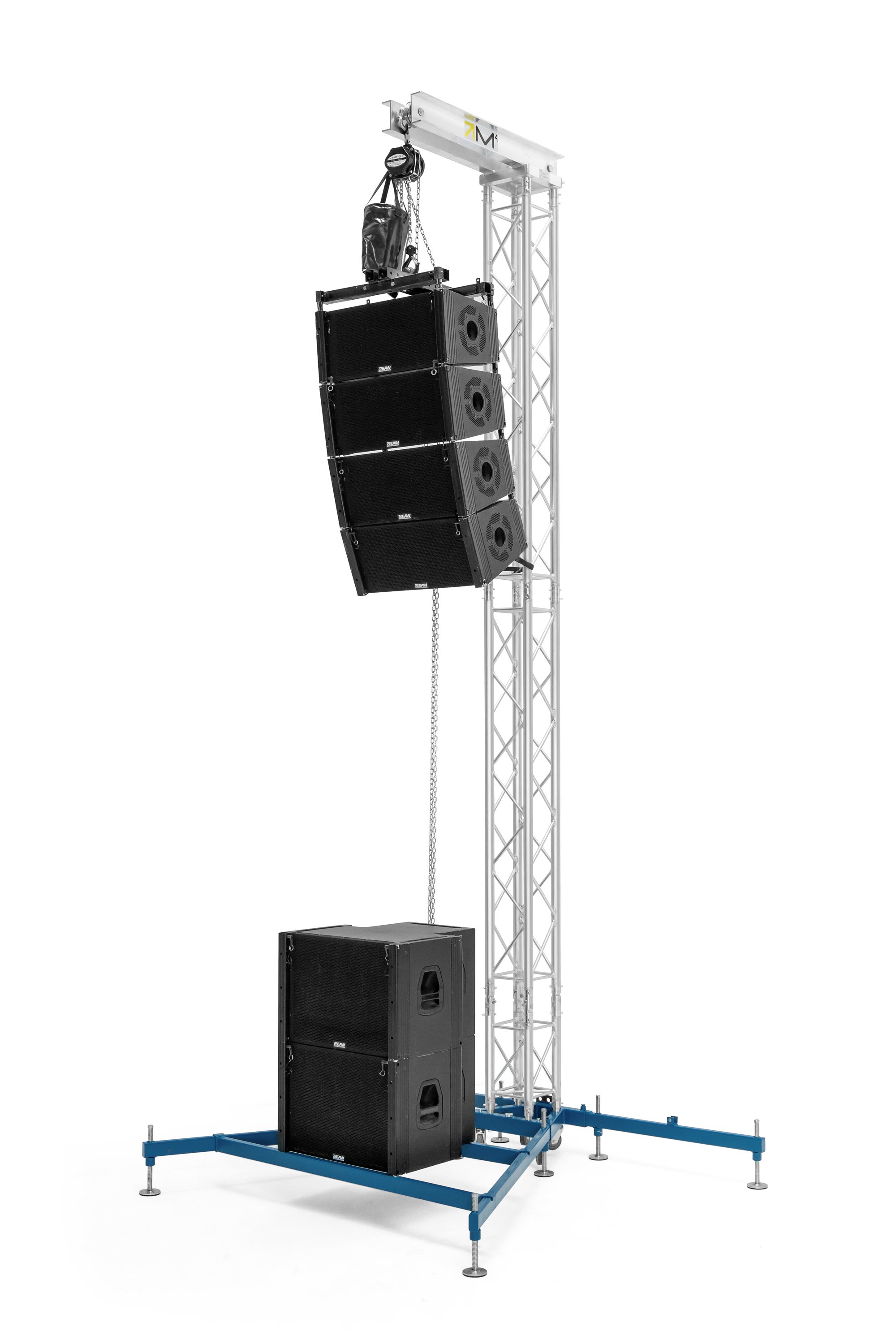

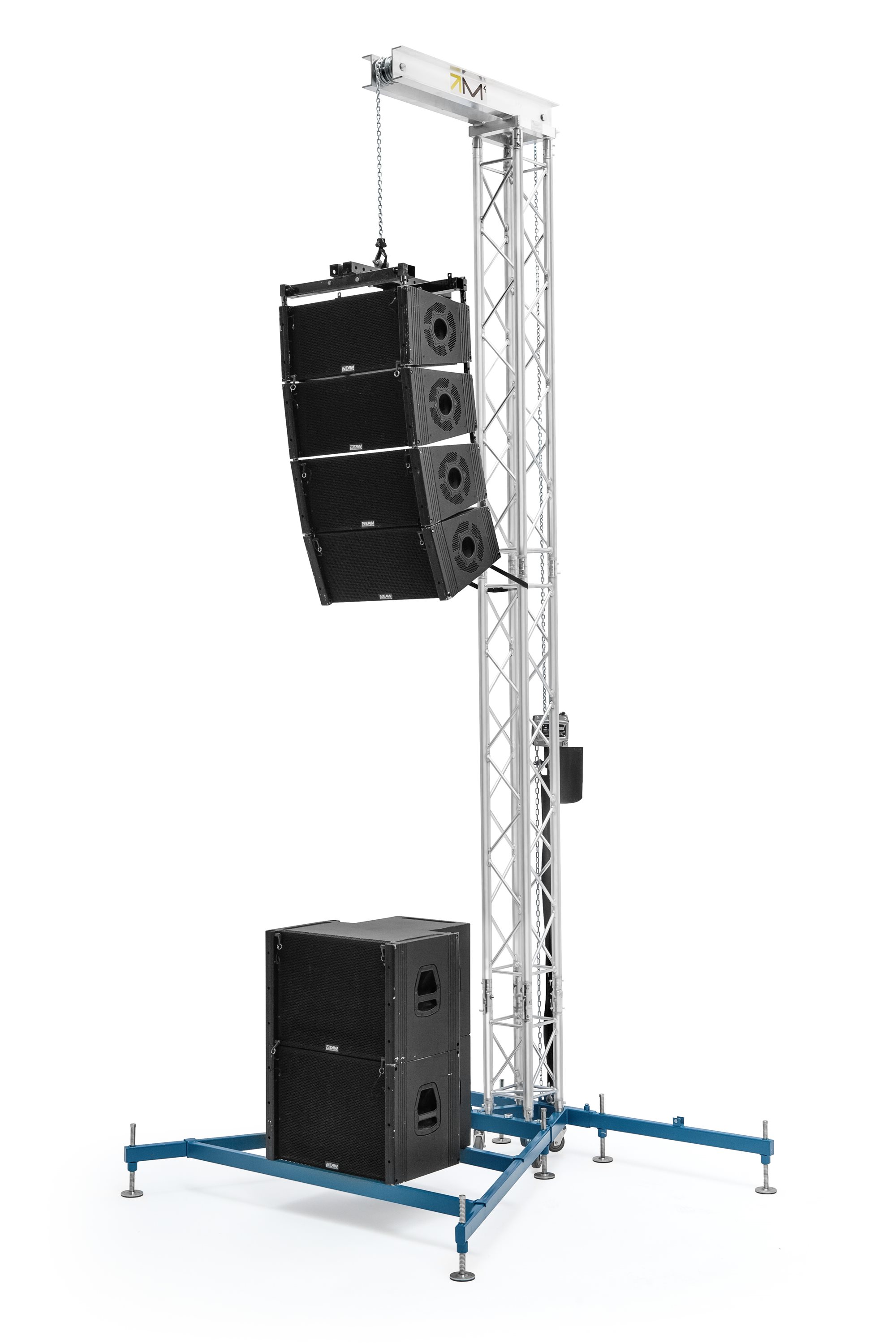

The new MILOS MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.
Set up is easy. Only a few 290 QTV truss components are needed to erect the tower and only 2 persons are required to accomplish this feat. Due to a height of just under 5 meters, approvals by authorities are not necessary. The design allows for placement of base cabinets or amplifier racks on top of the outriggers.

Key benefits

- Footprint at set up is 8.2' x 6.6' (width x depth)
- Max. load 660 lbs
- 16.15 ft2 max. front surface area of the PA
- 10.76 ft2 max. side surface area of the PA
- 110 lbs required ballast
- 45 mph in-service wind loading
- Out-of-service wind loading as per DIN-EN 13814

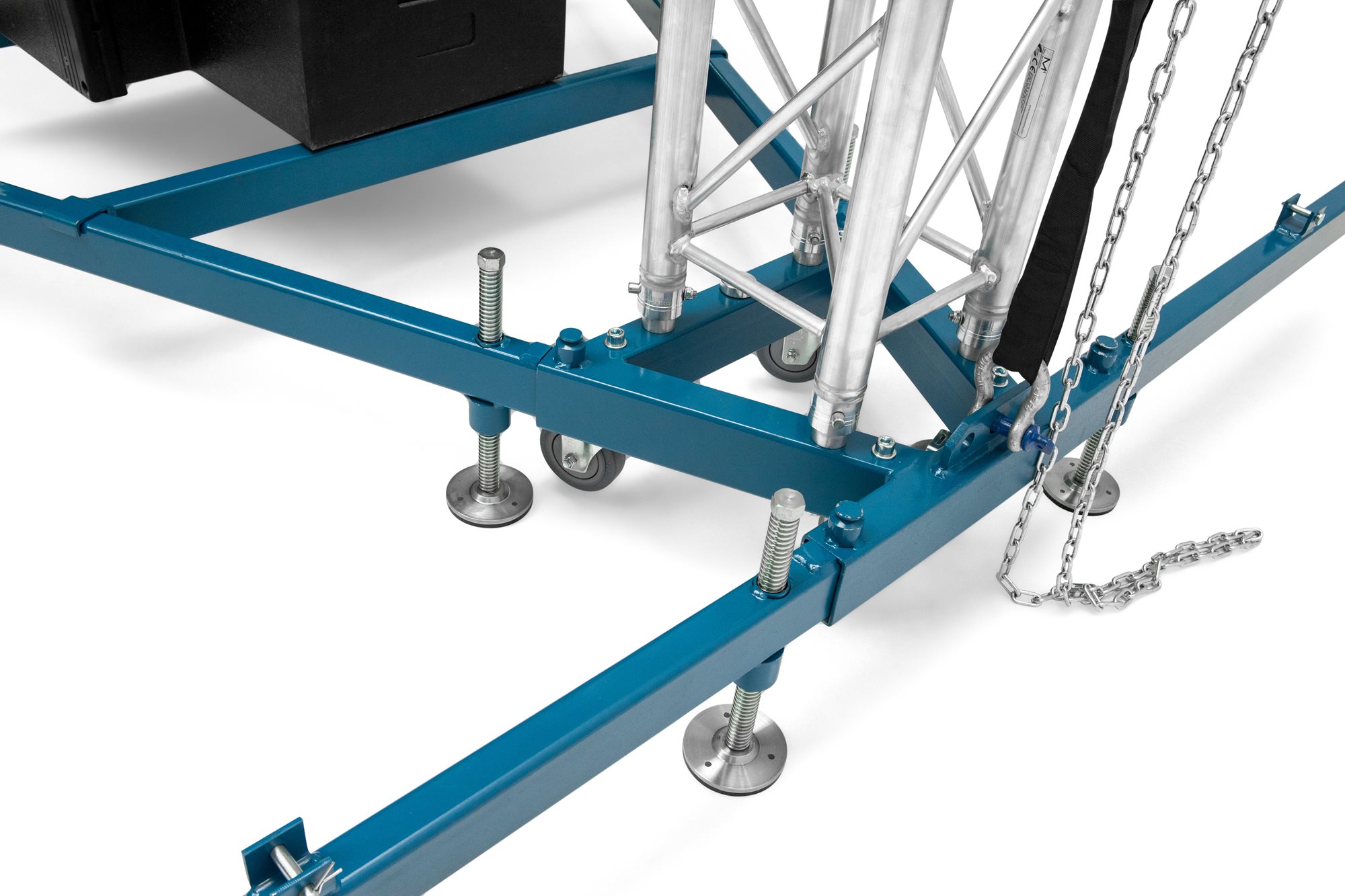

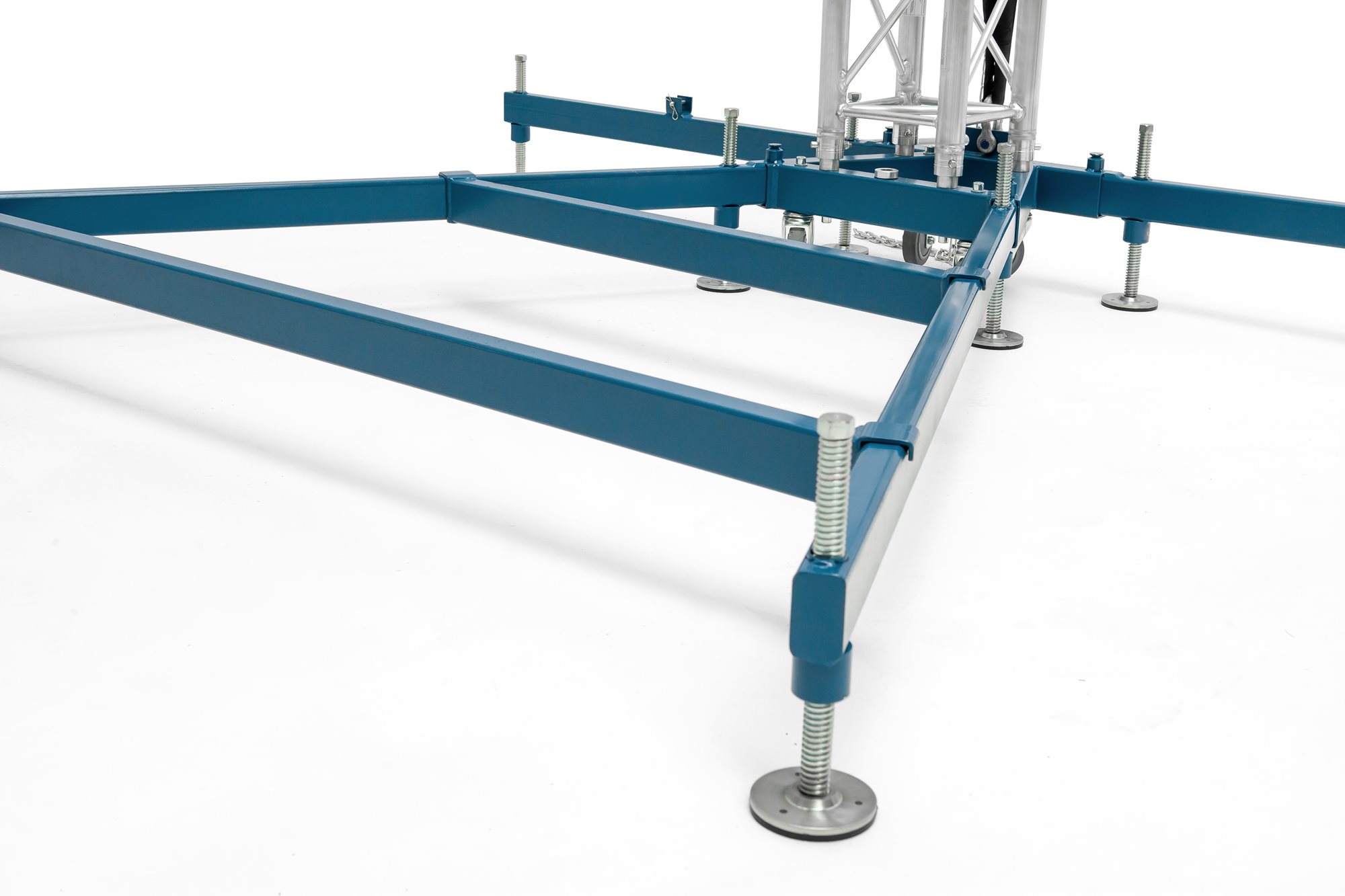

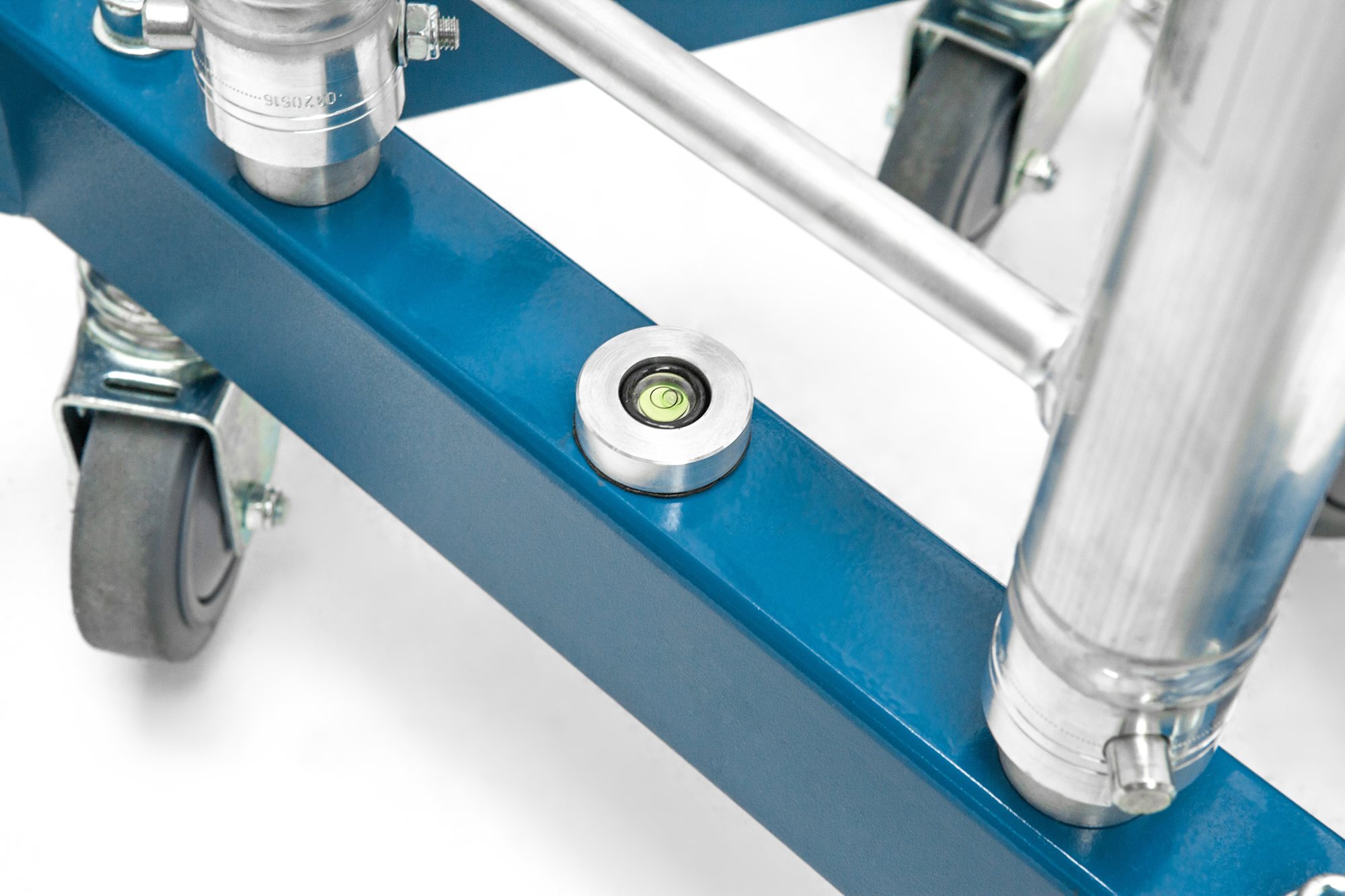

- Base frame is V-shaped steel centrepiece with set of 2 bespoke and 2 long MT2 outriggers

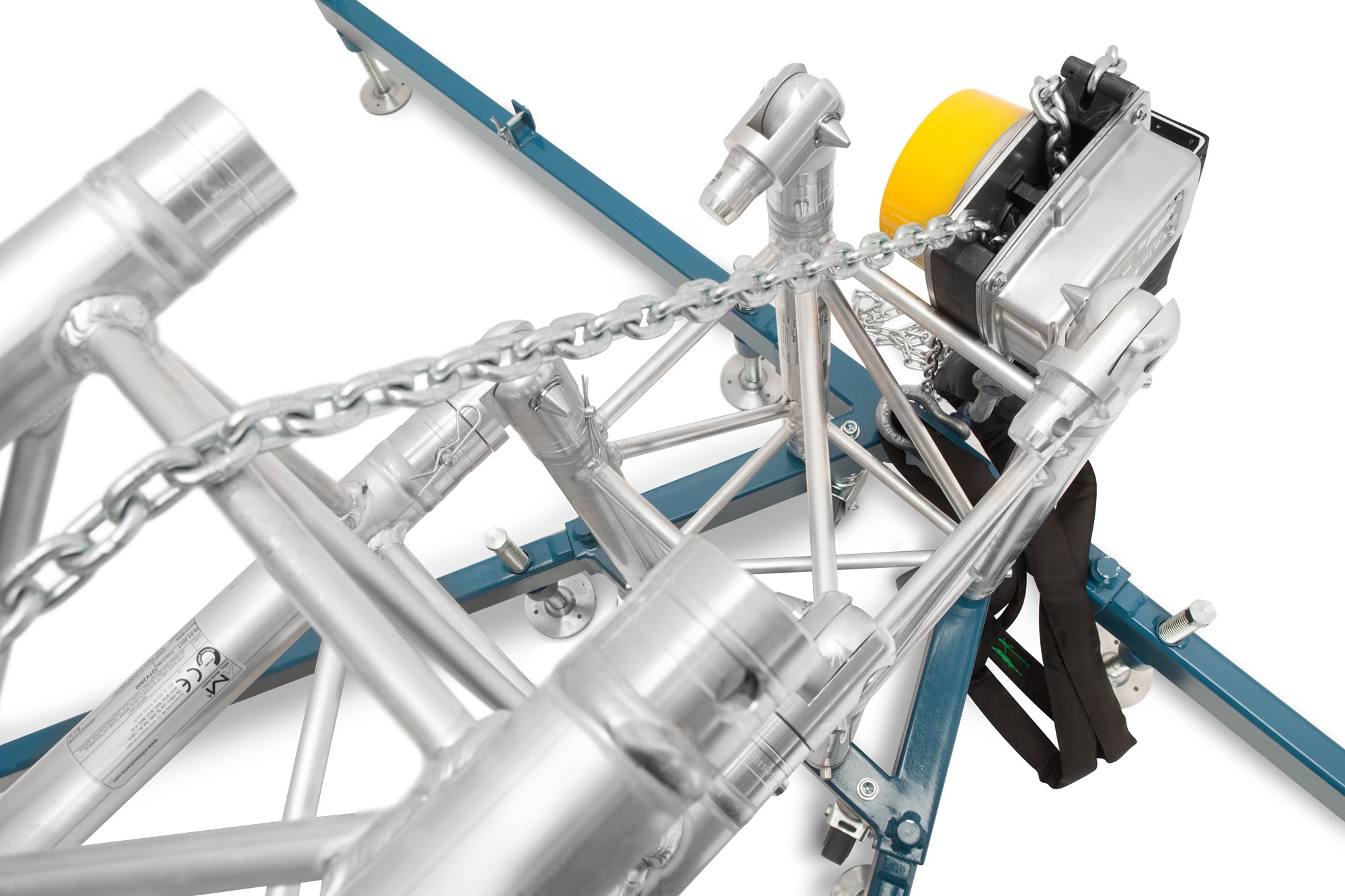

- Lifting operations with either electrical or manual chain hoists

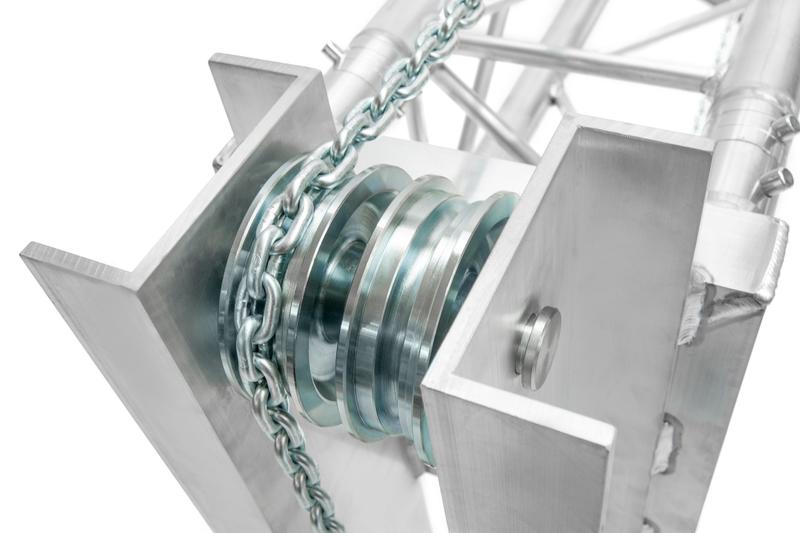

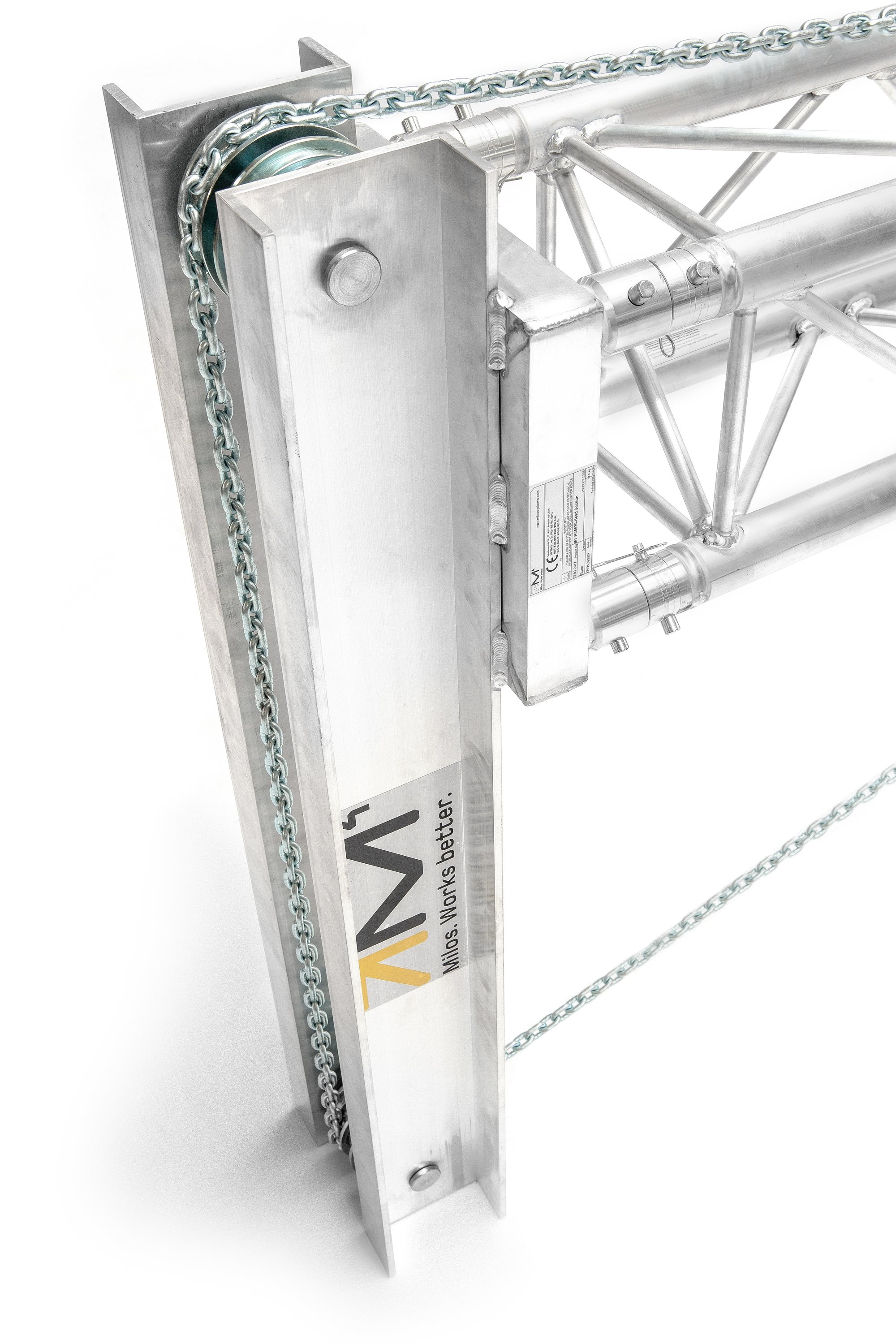

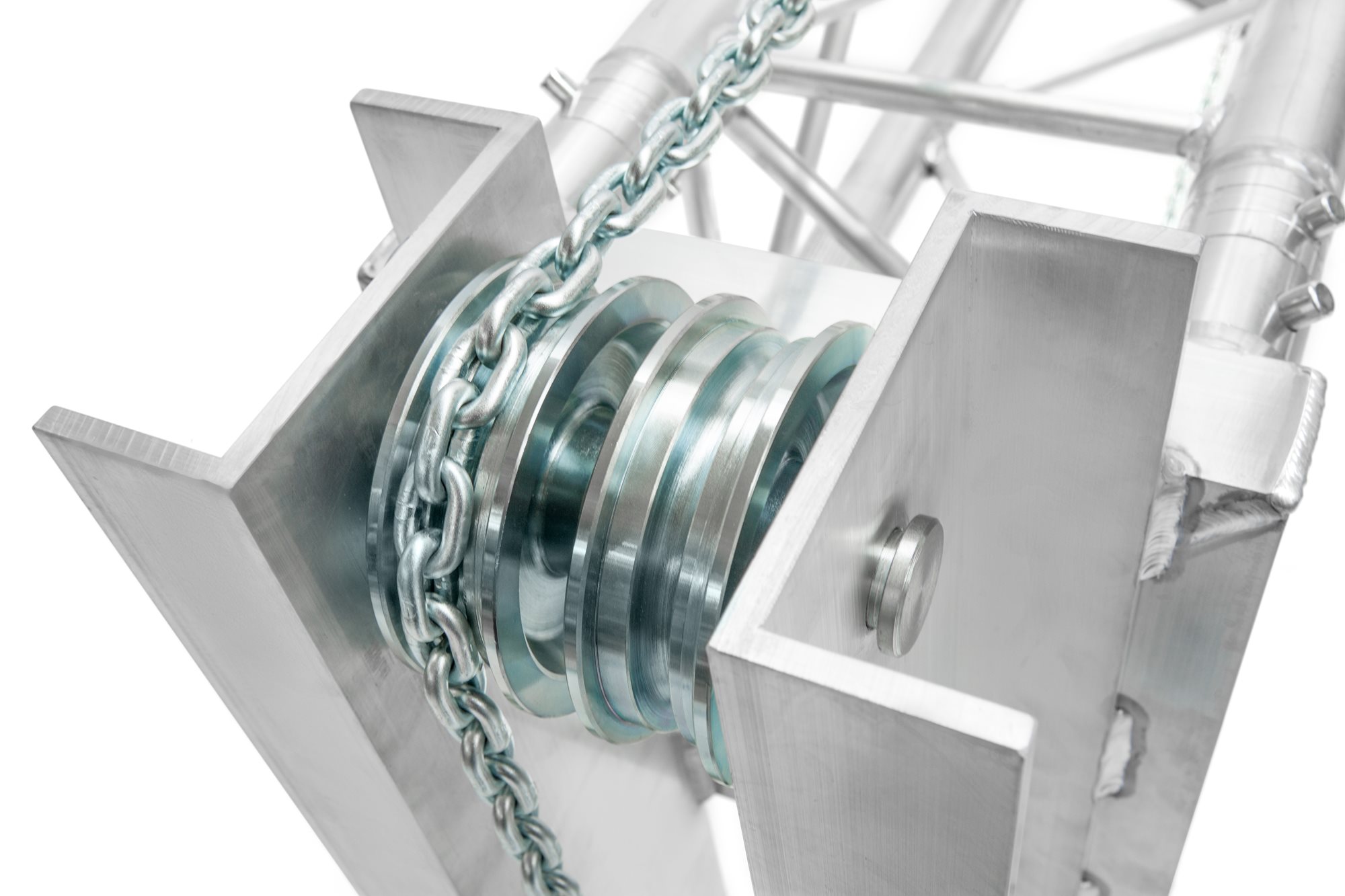

- Head block equipped with double pulley system for attachment of safety chain or safety wire parallel to lifting chain.
- Multiple attachment points on base for connection of hoists and safeties
