This rectangular truss combines the strength of 390 Quatro truss but saves 25% more space and has better possibilities for rigging. Diagonal webbing in the top allows for high lateral loading. Multicube corner blocks allow all 290 Quatro truss to be connected vertically.
The M290x390 comes in two connection system versions – B, F for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.
Key benefits
Trio truss can be put through as truss has parallel webbing
Horizontal bracing at node points to take horizontal force caused by slinging 4
48mm bottom brace for ease of lighting fixture installation due to compatibility with lighting fixture clamps
25% reduction of transport volume compared to QTP
Easy pin assembly due to 90 degree position of pin holes to the ground
Powder coat colour finish available on request
M290xM390 - Standard lengths and weights available
1.64 ft
3.28 ft
4.92 ft
6.56 ft
8.20 ft
9.84 ft
11.48 ft
13.12 ft
Rect
9.92 lbs
16.98 lbs
24.69 lbs
32.85 lbs
37.91 lbs
45.20 lbs
52.25 lbs
59.31 lbs
M290xM390_RTL

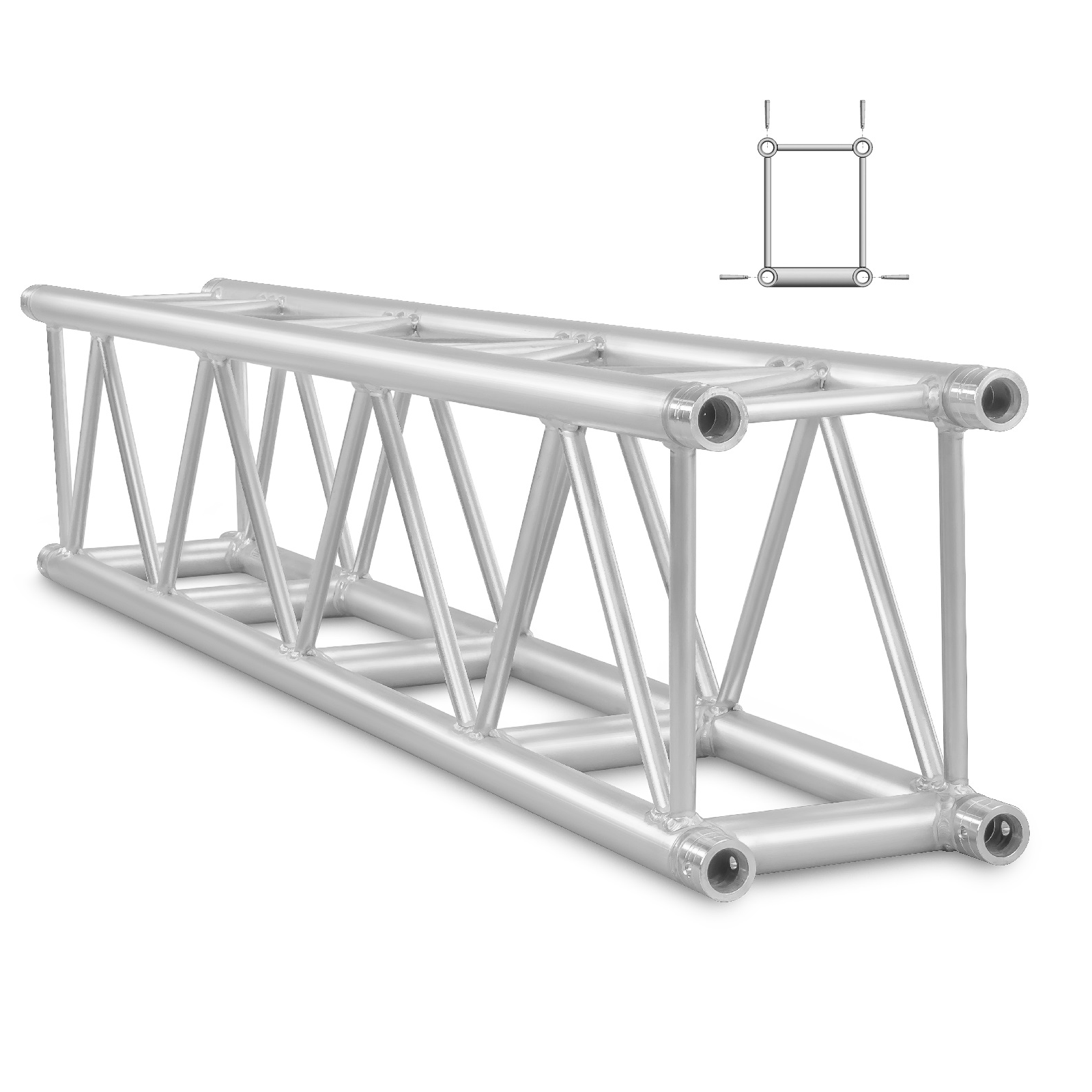

M290x390 - Medium duty truss range
Medium-duty rectangular truss with diagonal webbing designed to save 25% more space and offer better rigging options.
Available colors:
Code
RTL
Main Tube
1.89 x 0.12 inch
Braces
1.89 x 0.12 and 0.78 x 0.08 inch
Available Length
1.64 - 13.12 ft
Size
11.40 x 15.35 inch
Span
65.61 ft
Contact Us
UK
+44 (0)1945 410700
USA
+1 800 411 0065
DE
+49 251 2024014-0
EU
+420 416 837 846
Click here to contact us
RTL500|0.5m
RTL1000|1m
RTL1500|1.5m
RTL2000|2m
RTL2500|2.5m
RTL3000|3m
RTL4000|4m

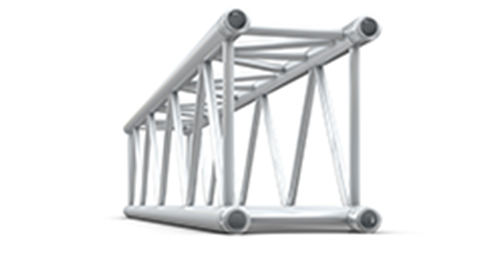

Straights
Show all straights

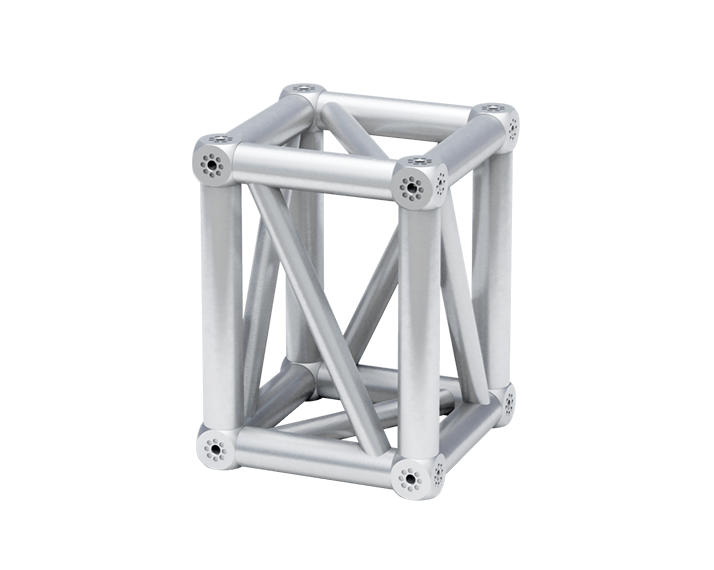

RC-M290/M390-HD
