Detailed information

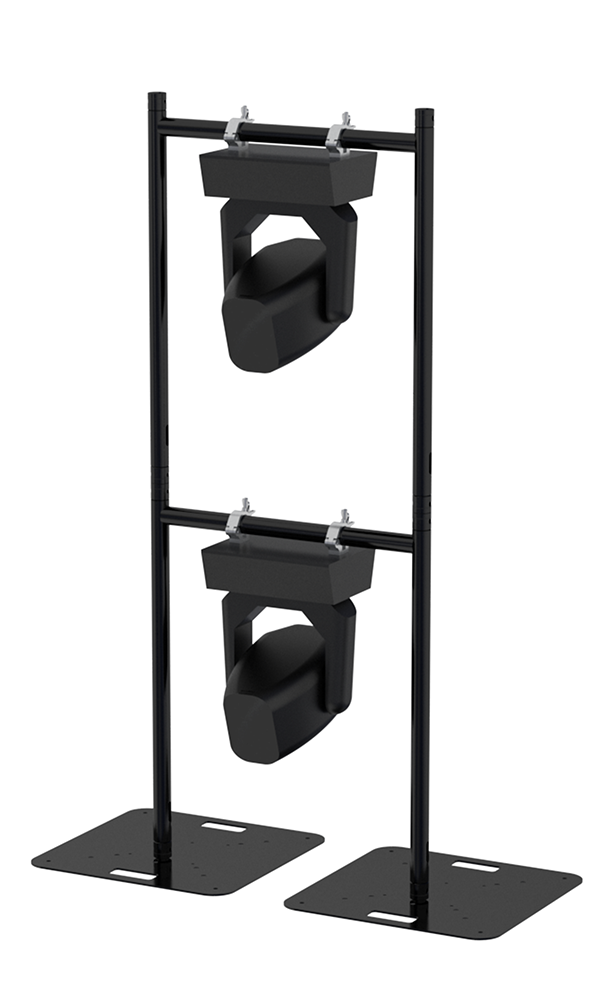

• Maximum flexibility for mounting lighting fixtures
• Connect fixtures quickly and securely via cell clamps or suspension cables
• Based on MILOS M100 series truss
• Conical connectors
• Durable 48 x 3mm extruded aluminium (EN AW-6082 T6)
• Available in natural aluminium or powder coated black finish

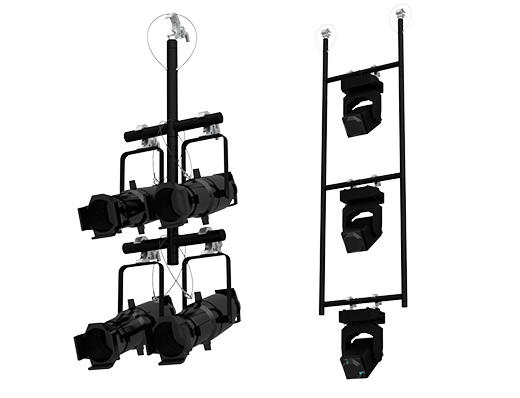

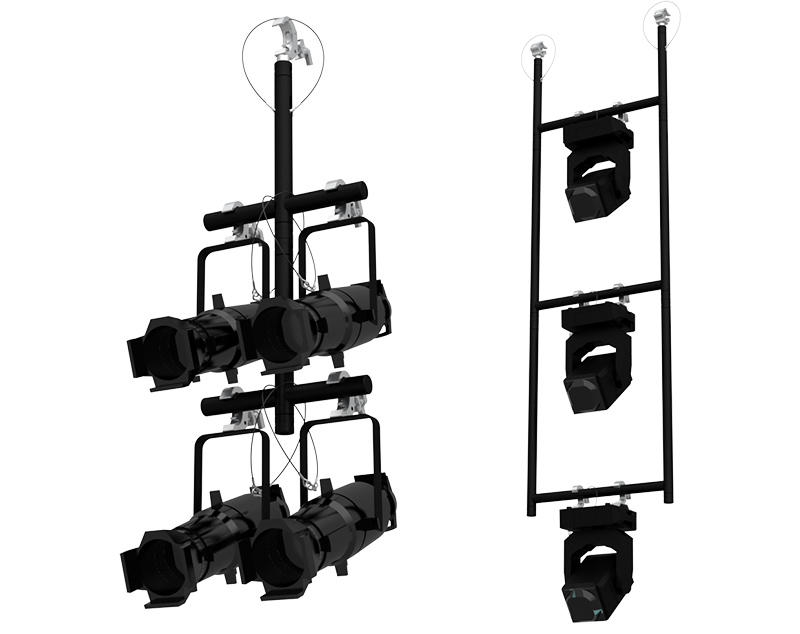

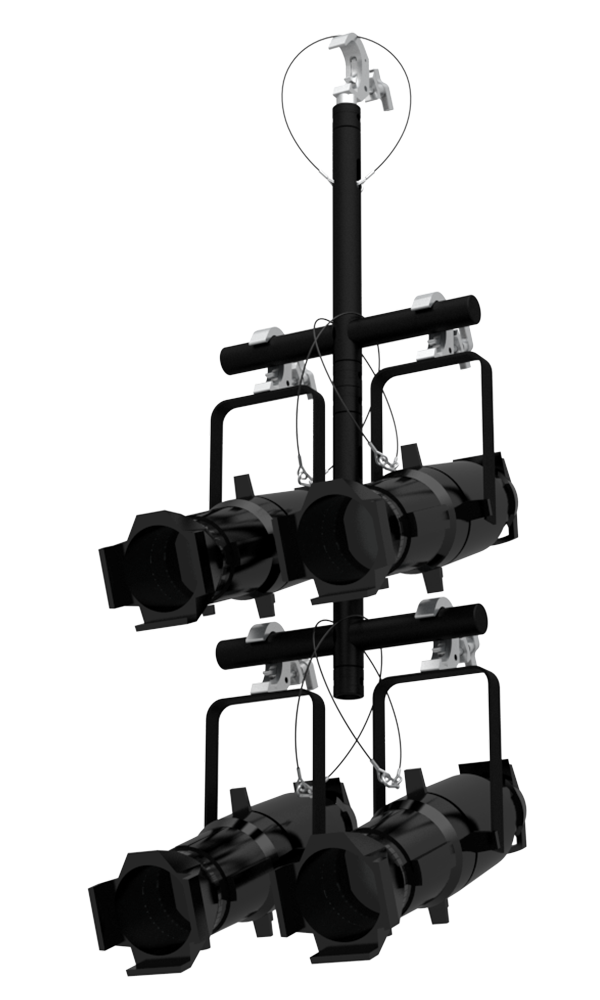

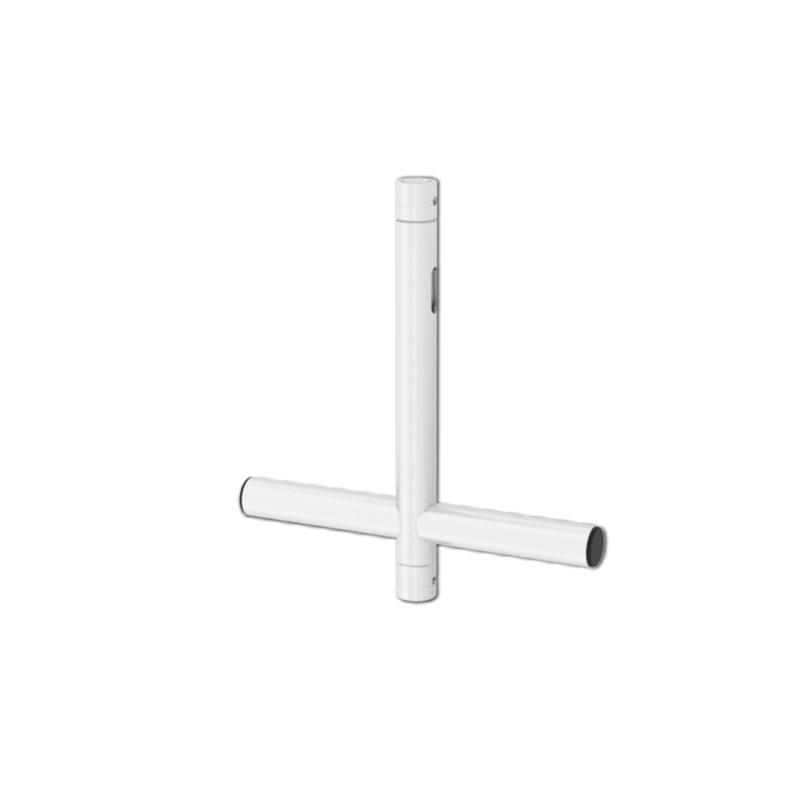

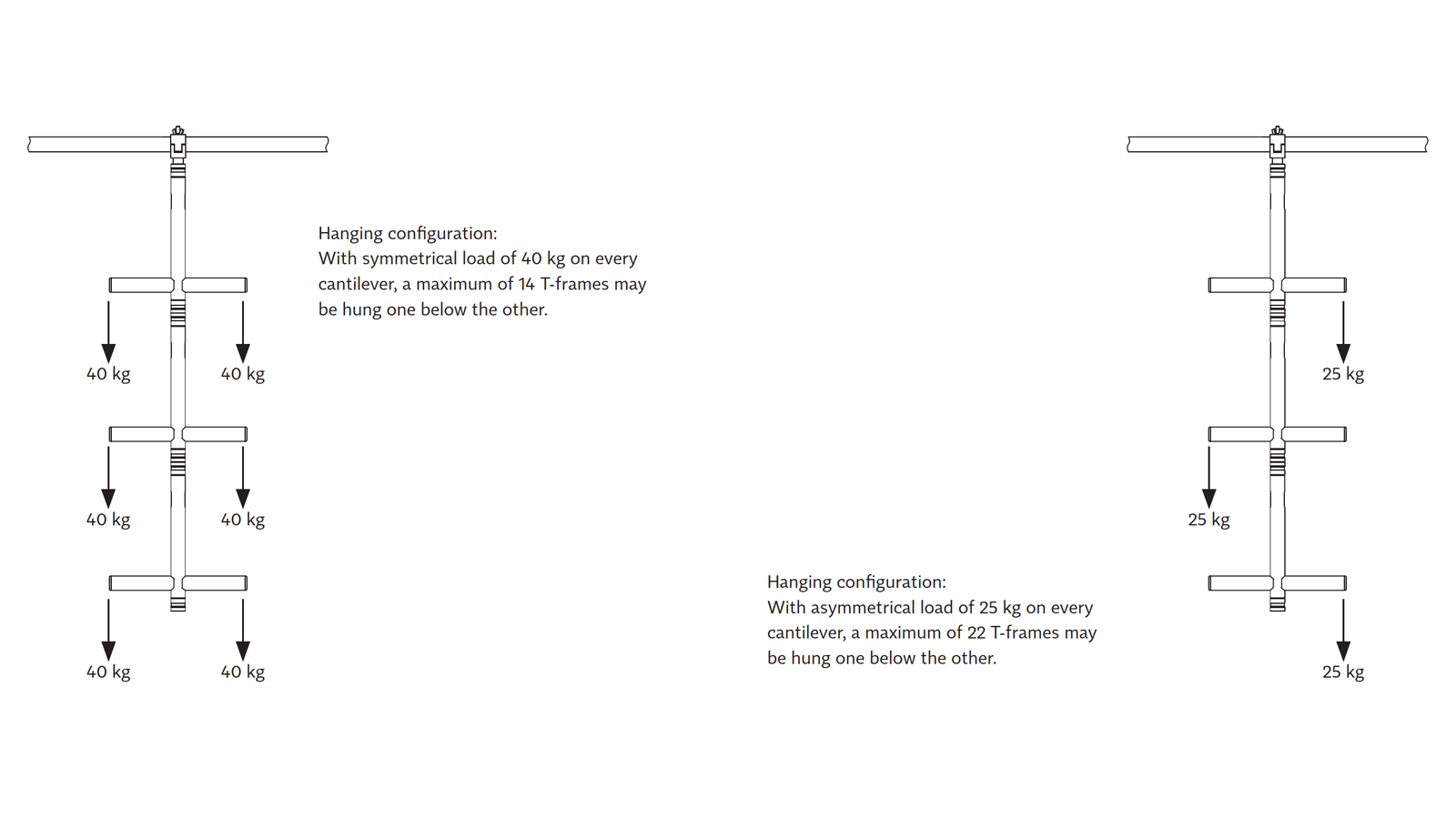

For T frames hanging configuration with symetrical load of 40kg on every cantilever can be use maximaly for 14 T -frames which may be hung on below the other.
For T frames hanging configuration with asymetrical load of 25kg on every cantilever can be use maximaly for 22 T -frames which may be hung on below the other.

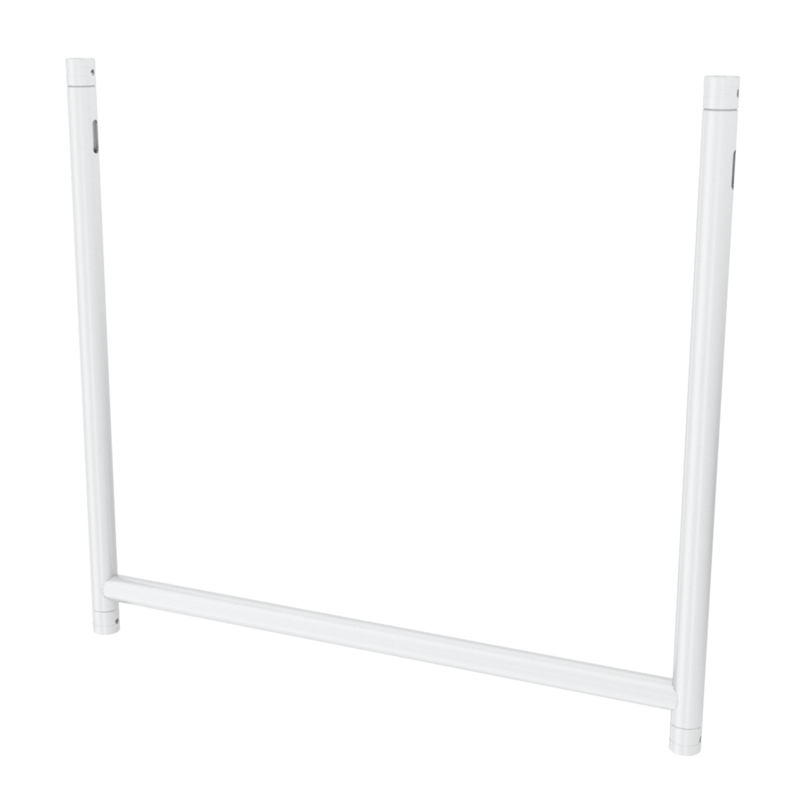

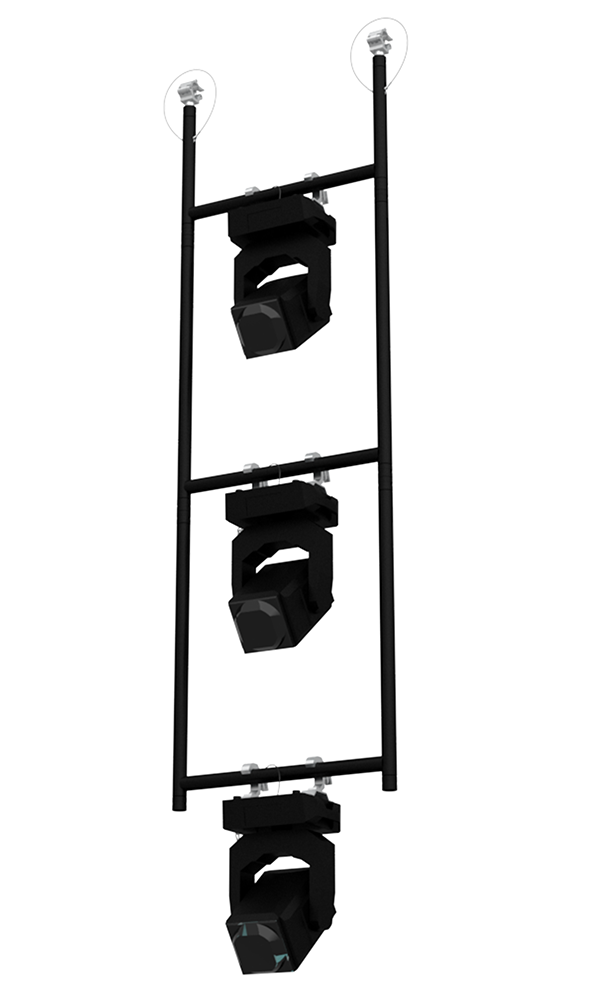

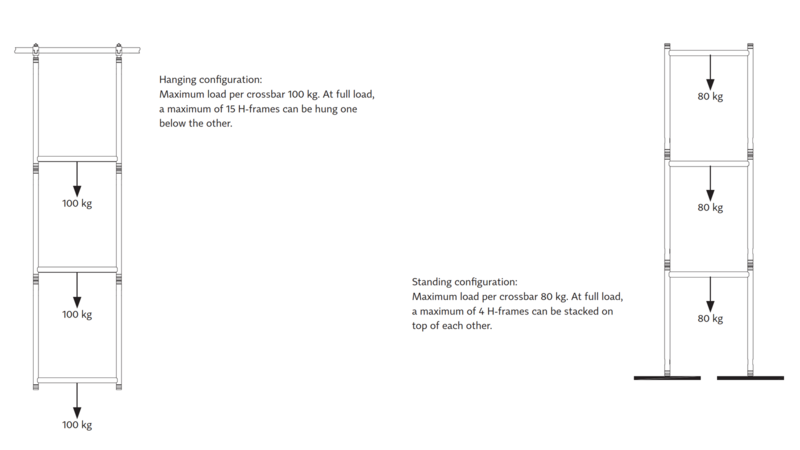

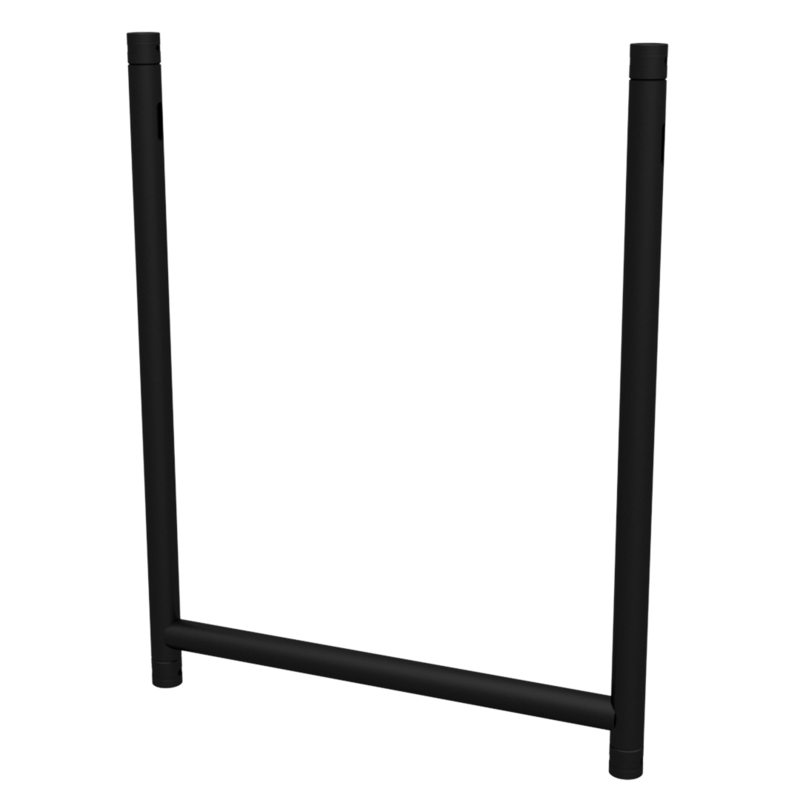

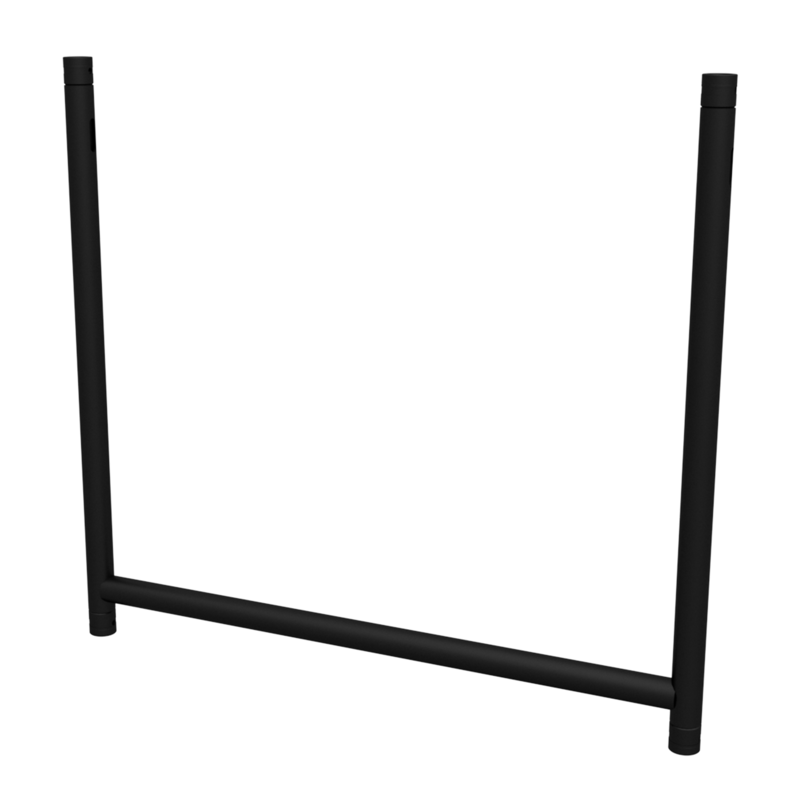

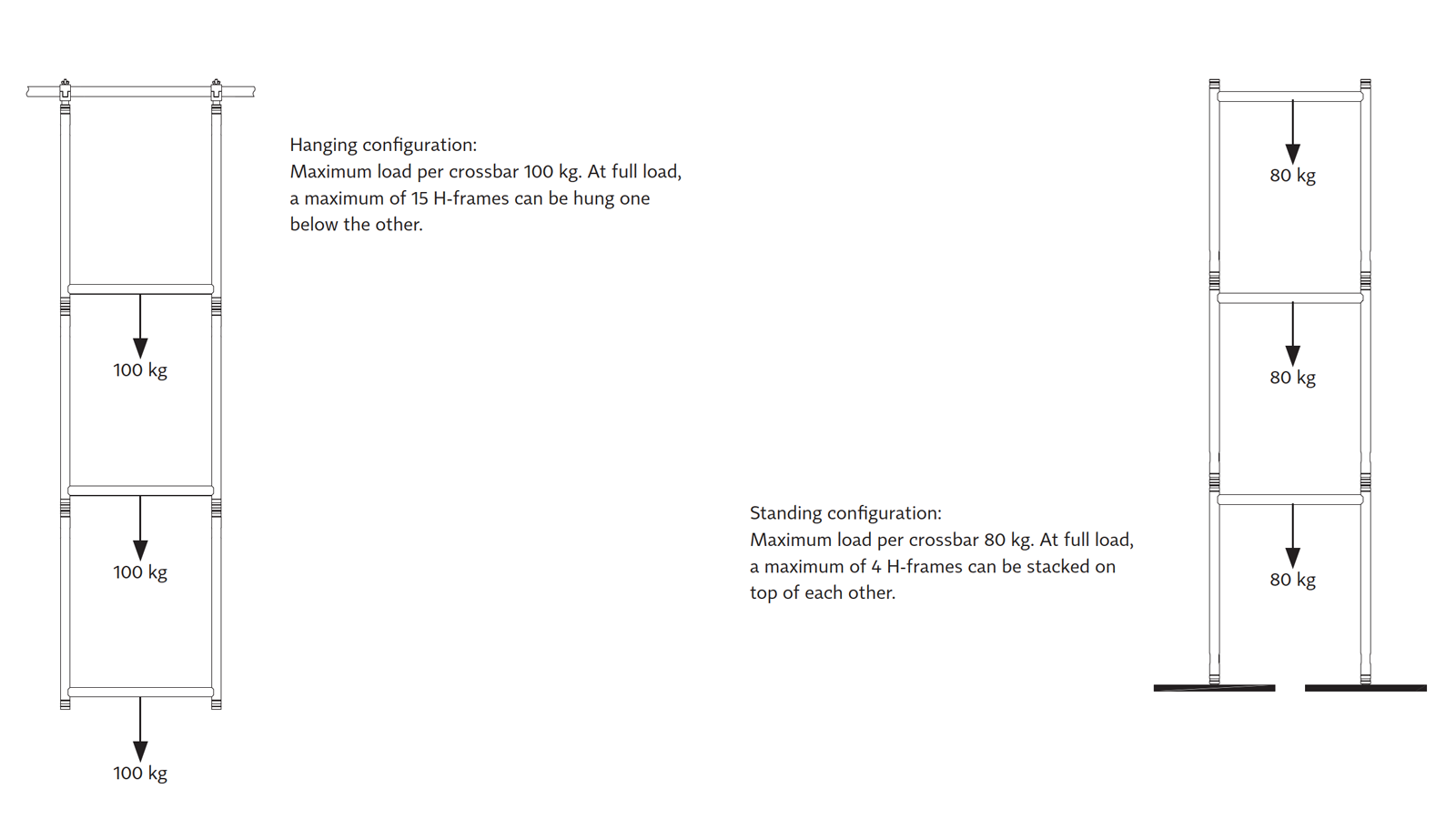

For H frames hanging configuration is a maximum load 100kg per crossbar. All full load a maximum of 15 H-frames can be hung one below the other
The load specifications given here only considers the frames and the connections between them, but do not include the top connection to the suspending truss. The total load capacity may be reduced depending on the lifting accessories selected.

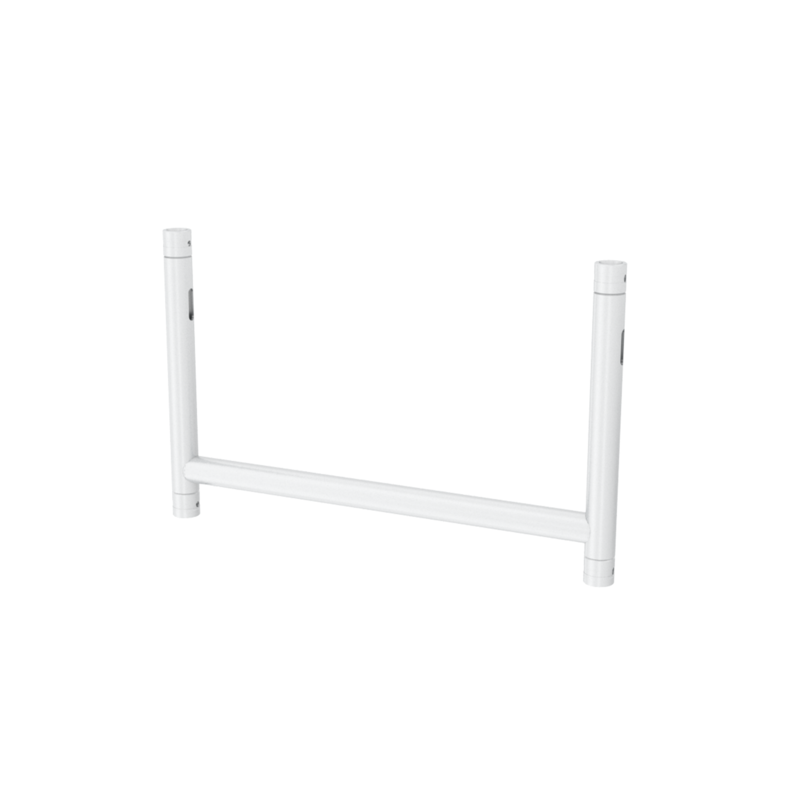

For H farmes standing configuration is the maximum load 80kg per crossbar. At full load a maximum of 4 H-frames can be stacked on top of each other.

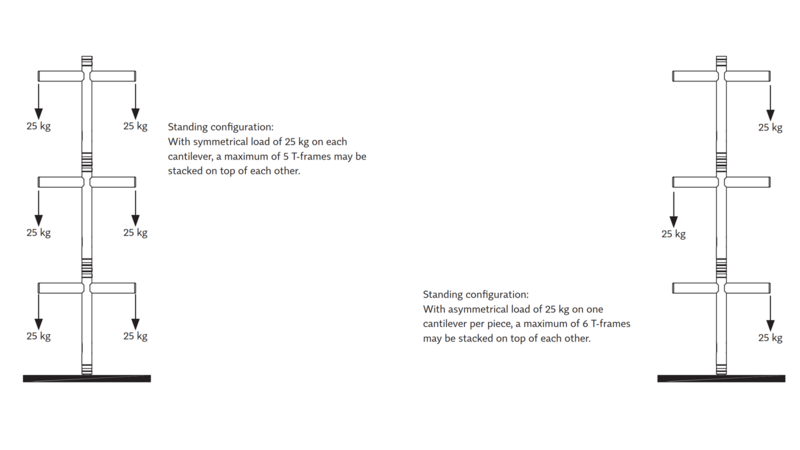

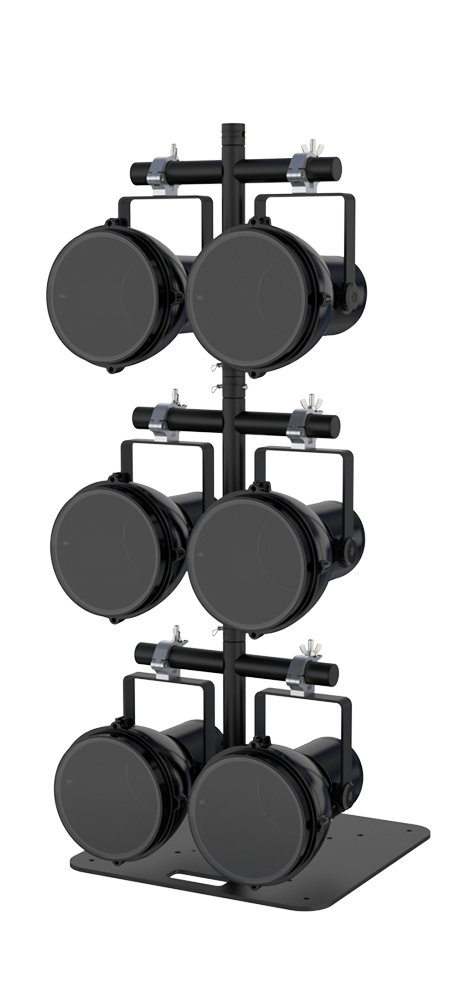

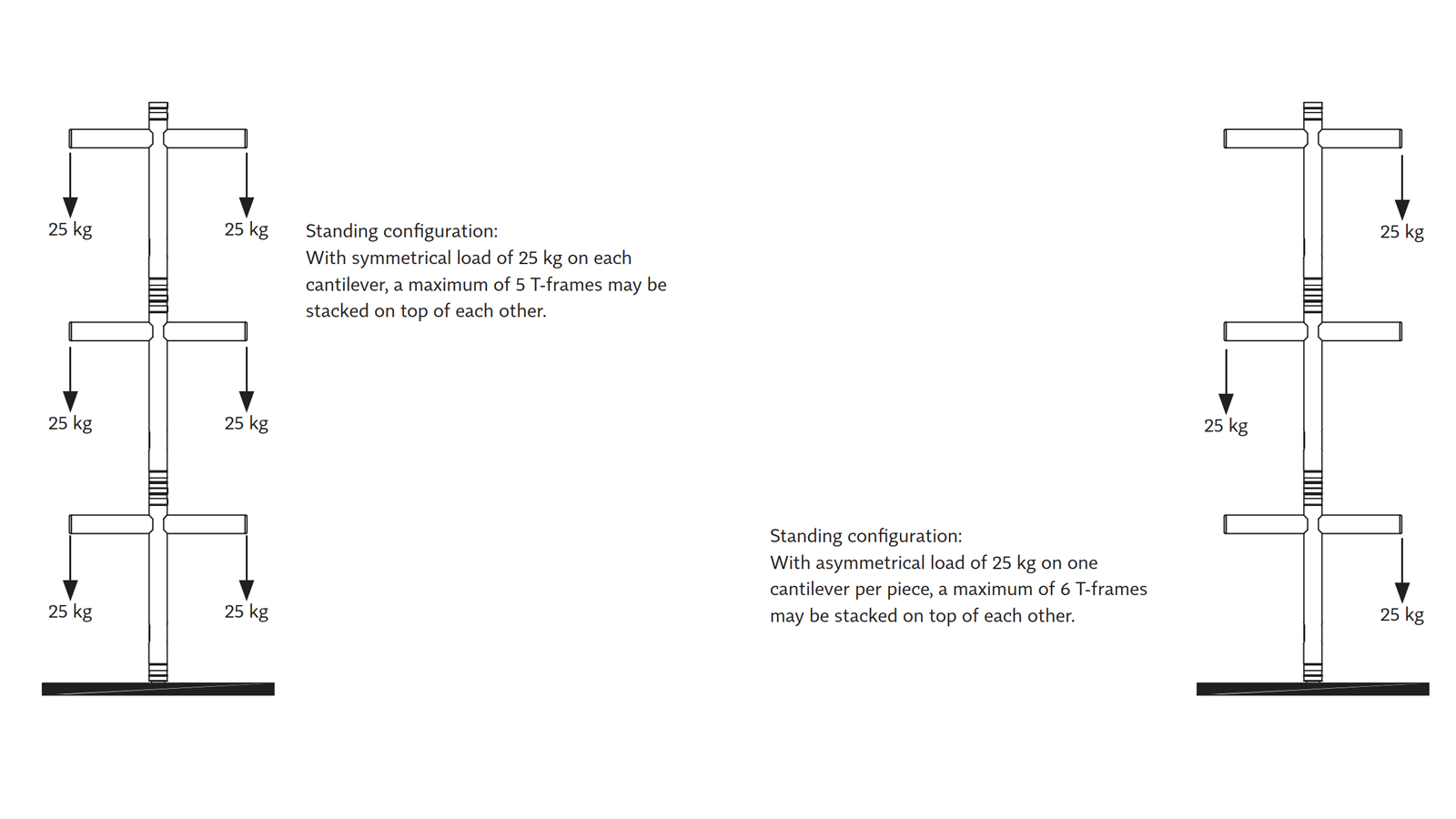

For T frames standing configuration with symetrical load of 25kg on each cantilever can be use maximaly for 5 T -frames which may be stacked  on top each other.
For T frames standing configuration with asymetrical load of 25kg on one  cantilever per piece , can be use maximaly for 6 T -frames which may be stacked  on top each other.

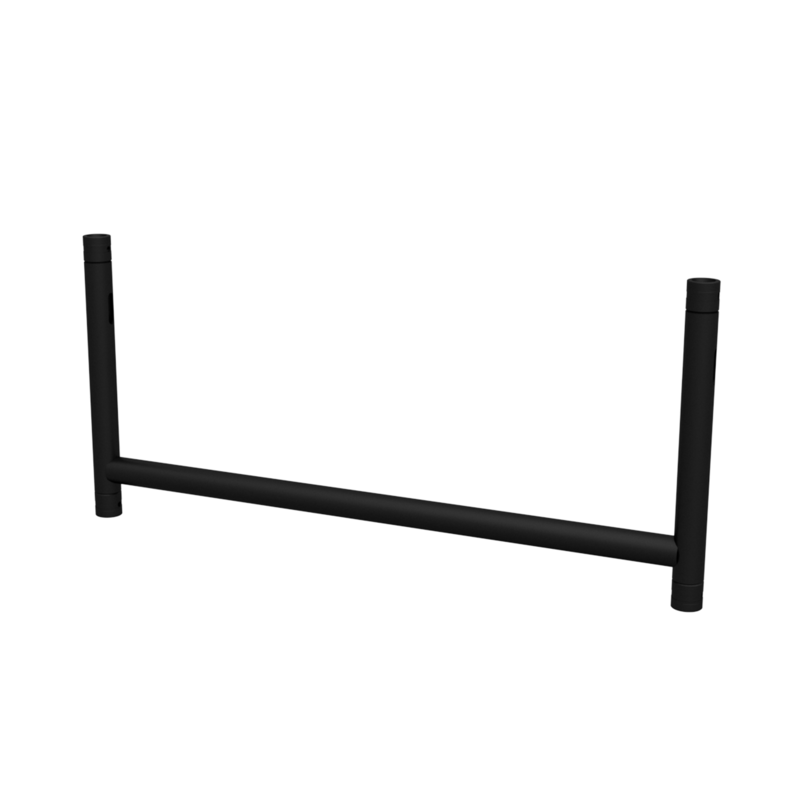

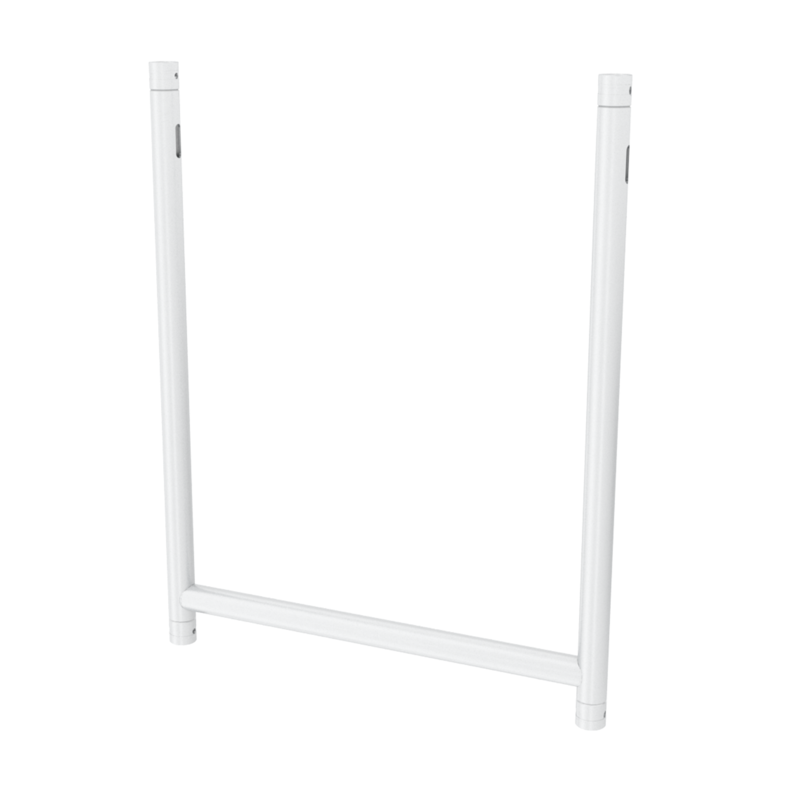

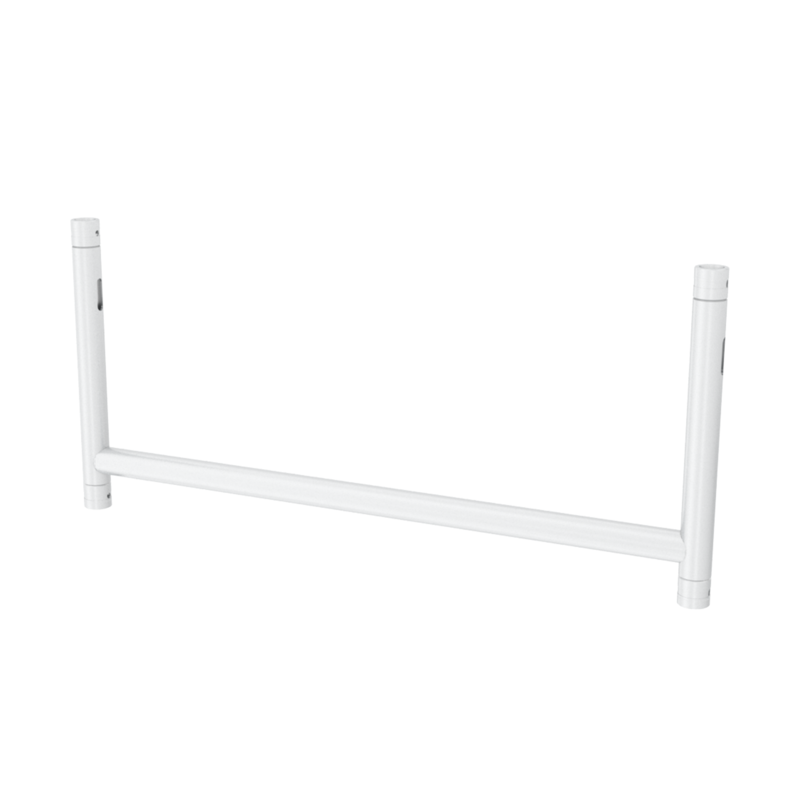

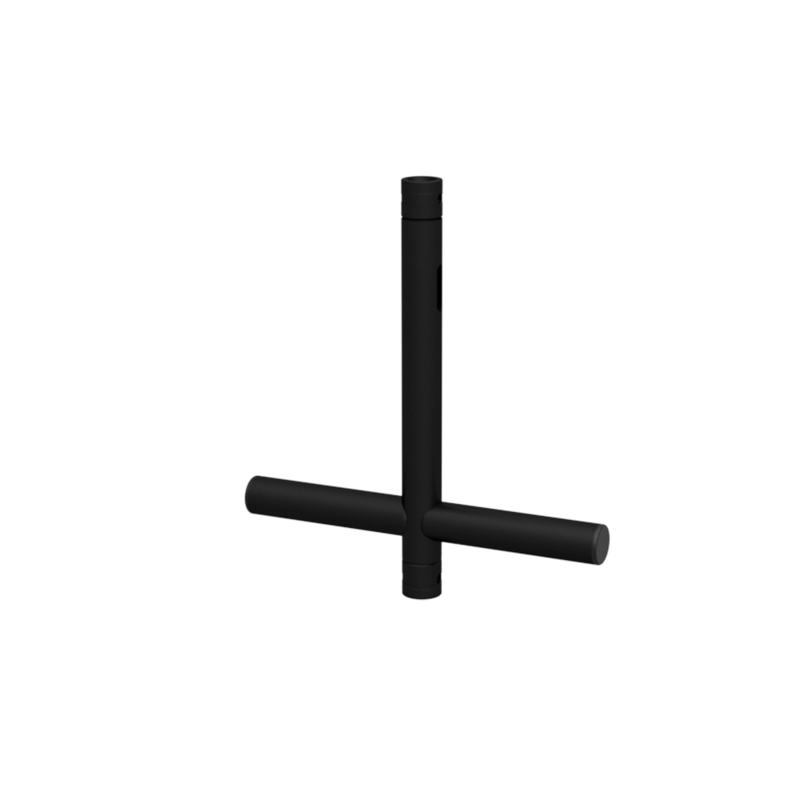

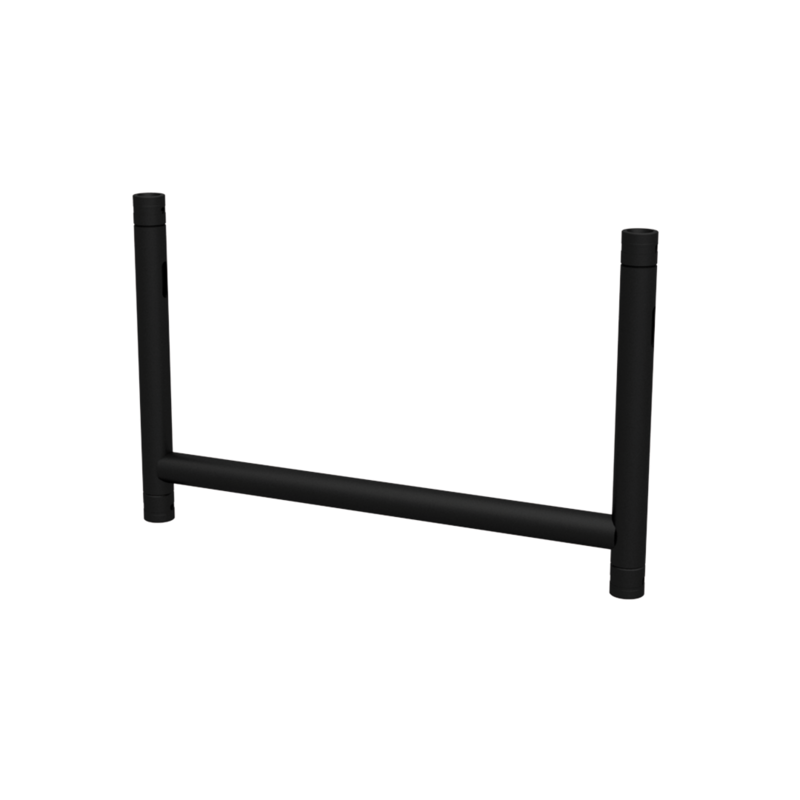

T/H Frames

All frames are based on our modular single tube M100 series, which features conical connection technology and our durable1.89 x 0..18 inch  extruded aluminium ( EN AW - 6082 T6) profile tubes that can be mixed and matched to achieve virtually any lighting or stage set configuration required.
Compatible with Milos cell clamps (200,400,500,600)

Available colors:
Main Tube
48 × 3 mm
T/H Frames
T/H Frames
