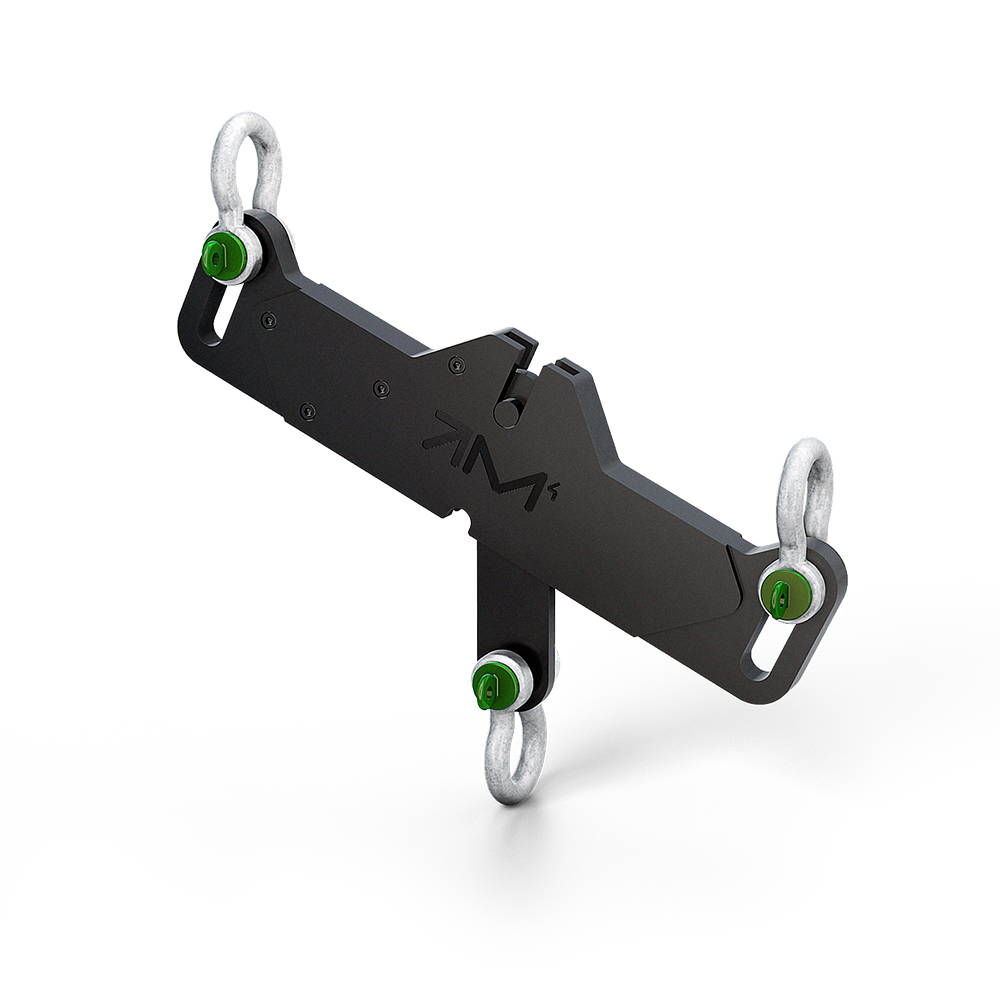

GravityBar

GravityBar
To achieve a perfectly balanced weight distribution even if one chain hoist moves slower than its partner.

Technical details

Code
GB-2t
Self Weight
38.80 lbs

Detailed information

Basic info

• Distribution of the load is always 50:50 between chain hoists
• Dynamic factor of 1.2
• WLL (4409 lbs (2000 Kg)
• Structural report according DGUV 17 with double safety factor
Two Products in One.
The idea was based on the design and functionality of a Delta Plate. Perhaps one disadvantage of the Delta Plate is that is unlikely to achieve a perfect 100% load distribution of 50-to-50.
Thanks to our new design you will always achieve a perfectly balanced weight distribution even if one chain hoist moves slower than its partner.
The second functionality utilises the Delta Plate to rotate the gravity bar vertically. The Delta Plate rigging accessory can also be used to control the horizontal direction of an array to distribute the weight of array to two points.

Download PDF
