Description

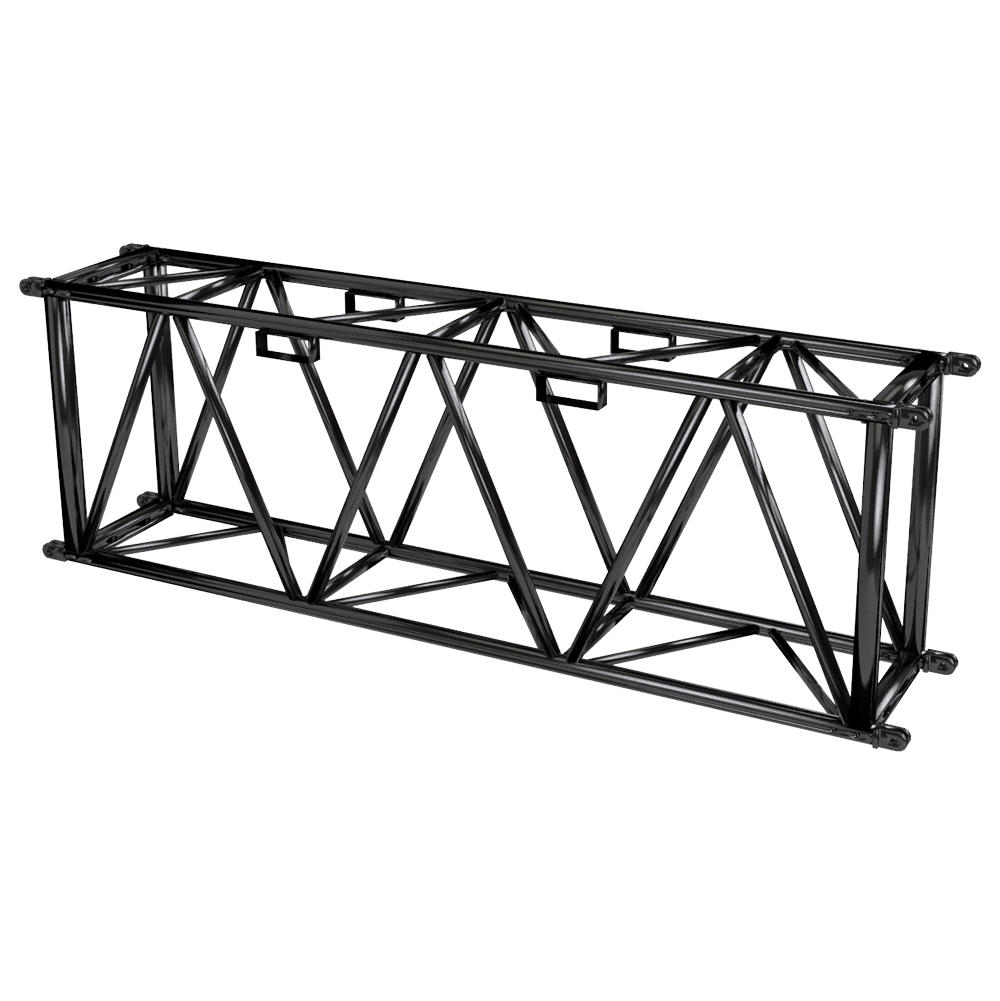

The 1010 x 580 mm MILOS 1010 Rectangular ultra-strength steel span section is made from special, ultra-high strength steel alloys with 2.7 times higher strength against bending compared to aluminium truss.

It features connection points in the end frames and compression tubes for slinging relevant framework nodes. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

Key benefits

  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses
  • End braces with 22mm holes for lateral connection
  • Connection kit supplied with every truss length
Standard lengths and weights available
Lengths 3.28ft 6.56ft 8.20ft 9.84ft 13.12ft 16.41ft 19.68ft
Weights 234.57 lbs 332.24 lbs 381.18 lbs 429.90 lbs 527.57 lbs 626.11 lbs 724.66 lbs

Loading chart
Span 32 ft 49,2 ft 65,6 ft 82 ft 98,4 ft 114,8 ft 131,2 ft 147,6 ft
Point load 31767 lbs 20599 lbs 14842 lbs 11248 lbs 8736 lbs 6844 lbs 5338 lbs 4088 lbs
Deflection 0,9 inch 2,03 inch 3,67 inch 5,85 inch 8,62 inch 12,01 inch 16,15 inch 21,06 inch
Two point load 23825 lbs 15450 lbs 11131 lbs 8436 lbs 6553 lbs 5133 lbs 4002 lbs 3067 lbs
Deflection 1,13 inch 2,57 inch 4,60 inch 7,18 inch 10,41 inch 14,27 inch 18,76 inch 23,91 inch
Three point load 15885 lbs 10300 lbs 7422 lbs 5625 lbs 4368 lbs 3422 lbs 2668 lbs 2044 lbs
Deflection 1,05 inch 2,42 inch 4,29 inch 6,75 inch 9,83 inch 13,53 inch 17,90 inch 22,97 inch
Four point load 12456 lbs 8584 lbs 6185 lbs 4688 lbs 3640 lbs 2851 lbs 2225 lbs 1704 lbs
Deflection 1,05 inch 2,54 inch 4,52 inch 7,10 inch 10,30 inch 14,12 inch 18,56 inch 23,71 inch
Distributed load 1519 lbs 837 lbs 452 lbs 274 lbs 177 lbs 119 lbs 81 lbs 55 lbs
Deflection 0,9 inch 2,54 inch 4,49 inch 7,06 inch 10,22 inch 14,04 inch 18,49 inch 23,63 inch

S-RTD 101 Rectangular Steel Truss

Rectangular steel span truss for the ultimate in high strength spans
Code
S-RTD
Width
580 mm
Height
1010 mm
Main Tube
60.3 x 4 mm
Braces
48.3 x 3 mm / 33.7 x 2.6 mm
Span
45 m
Self Weight
65 kg/m (for 3m piece)
S-RTD 101 Rectangular Steel Truss
