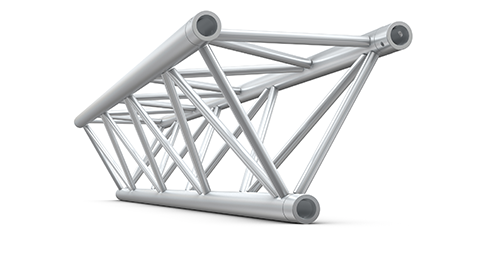

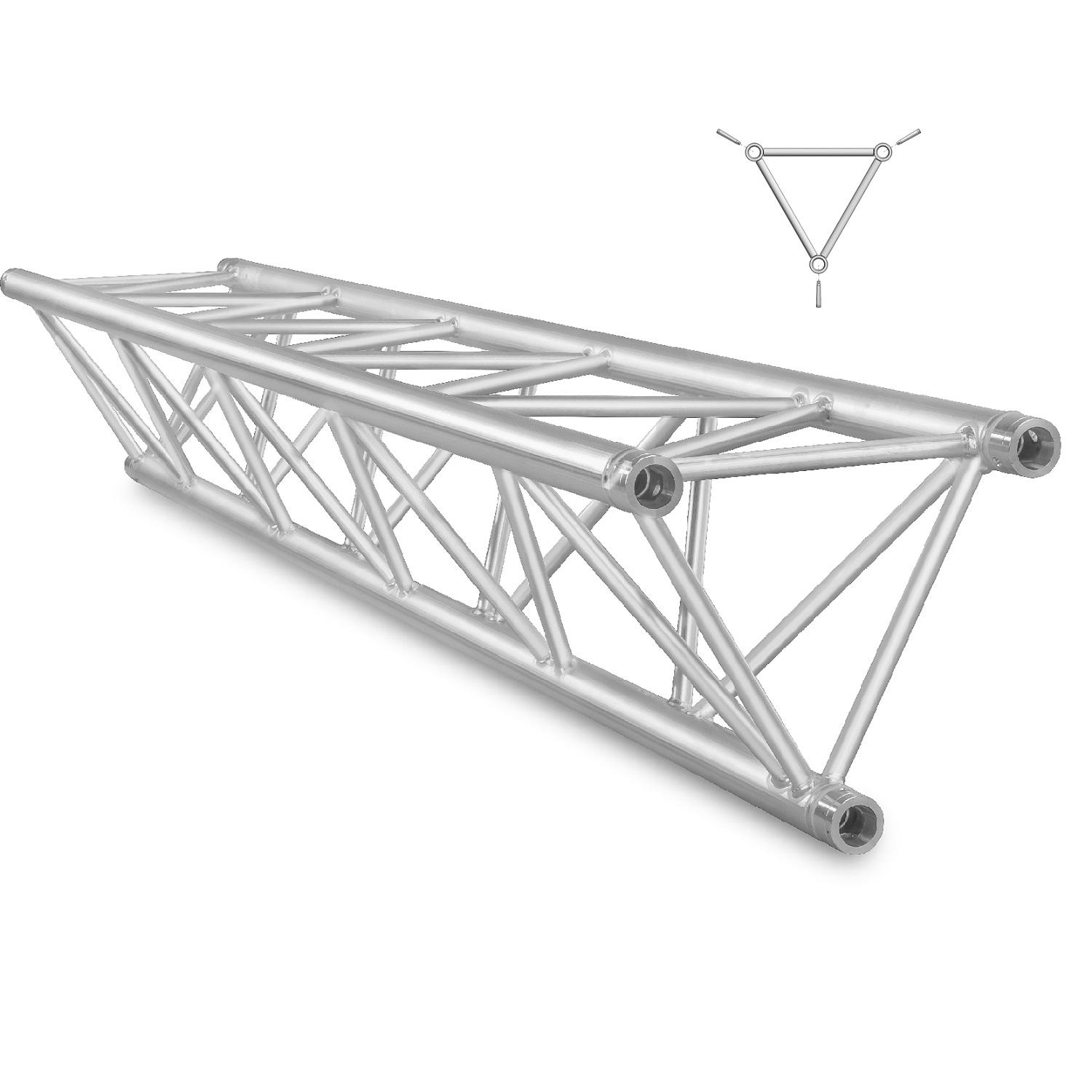

M390 - Medium duty truss with Regular & Heavy-Duty options

Available colors:
Code
STK
Main Tube
1,89 x 0,12 inch
Braces
0,78 x 0,06 inch
Available Length
1,64 - 16,41 ft
Size
15,28 x 13,46 inch
Span
65.61 ft
M390 - Medium duty truss with Regular & Heavy-Duty options
M390 - Medium duty truss with Regular & Heavy-Duty options

Detailed information

Description

M390 is a larger format product line available in both a heavy duty "L" Range and regular duty "K" Range. It provides remarkable weight loading capabilities while fitting the needs of more substantial spans and booth designs such as concert stages, larger exhibit displays or any other types of indoor or outdoor stages. The M390 provides optimal truss support in every situation.
Call or e-mail us today for more information or to request a quote.

The M390 comes in two connection system versions – B, F for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Key benefits

  • Certified 50mm tube M390 Series truss range

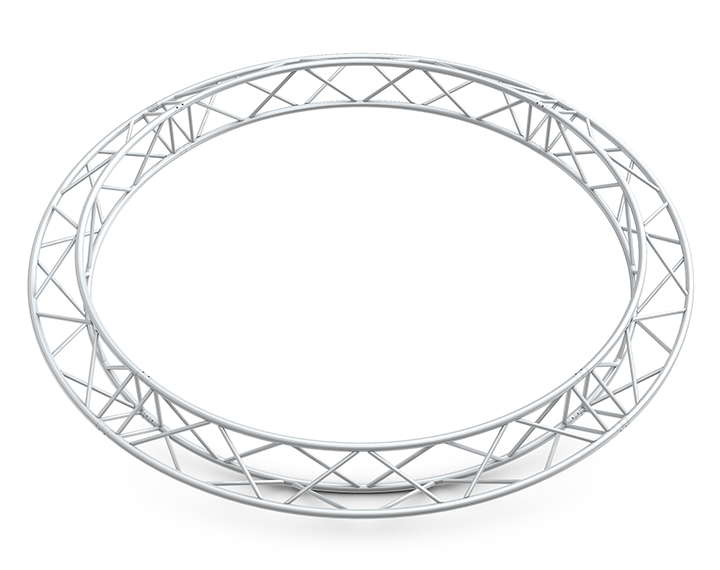

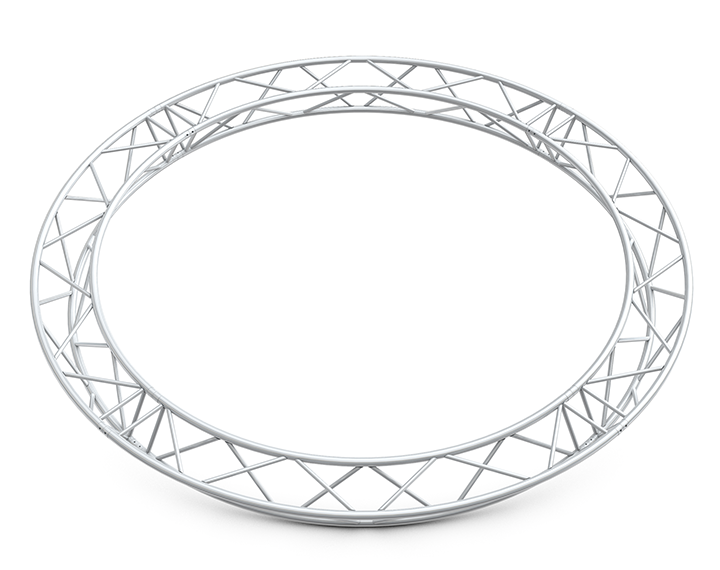

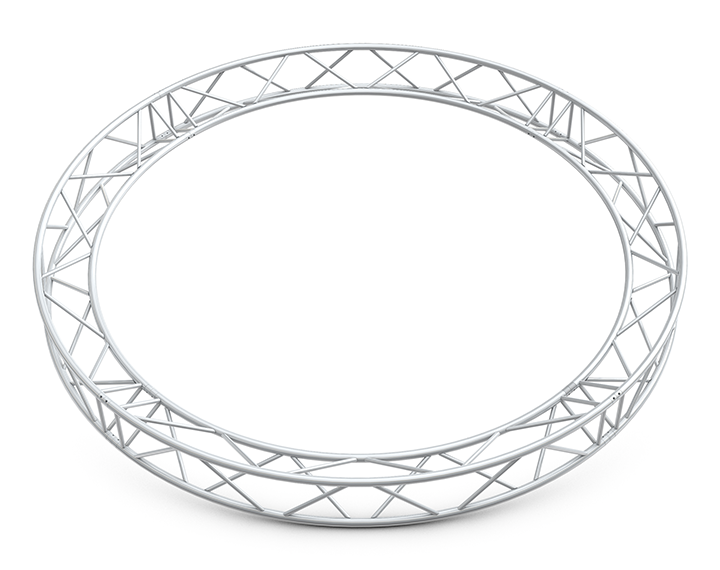

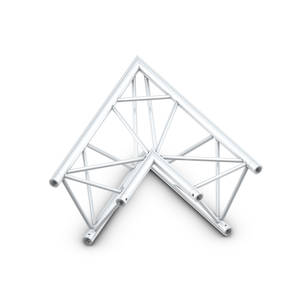

  • Custom lengths, junctions & curves available
  • Interior & exterior applications

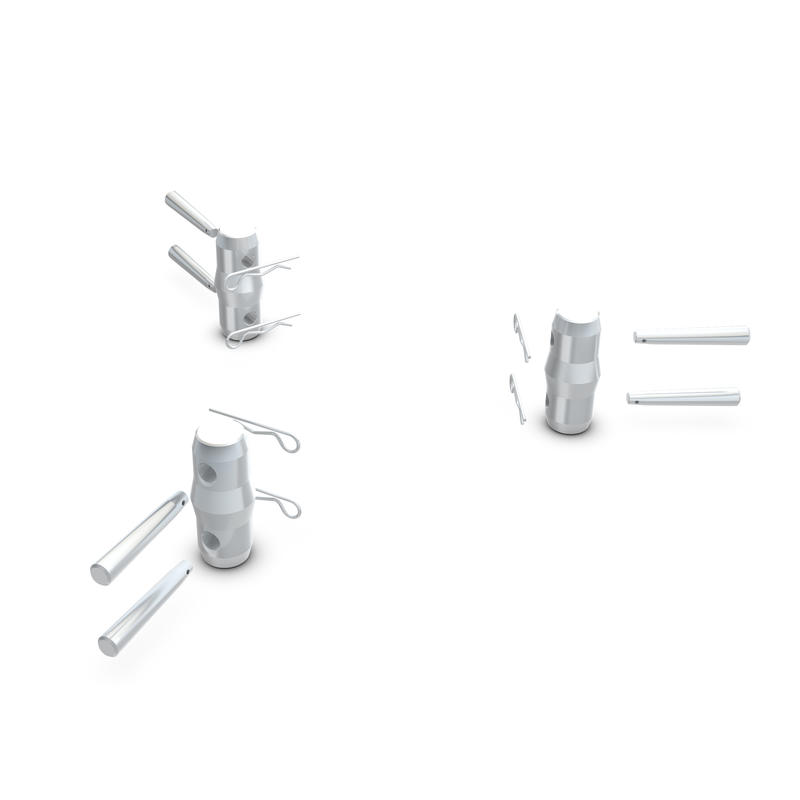

  • Connection kit supplied with every truss length & junction
  • Fast connection for quick, simple and secure assembly
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Great free-span & loading characteristics (upto 20m / 65.61 ft)
  • Powder coat colour finish available on request
M390 regular - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 3.74 lbs 5.95 lbs 8.16 lbs 10.43 lbs 12.78 lbs 14.99 lbs 19.62 lbs 24.12 lbs
Trio 6.84 lbs 10.58 lbs 15.65 lbs 18.37 lbs 22.27 lbs 22.48 lbs 35.71 lbs 43.65 lbs
Quatro 9.04 lbs 14.10 lbs 20.06 lbs 25.79 lbs 30.64 lbs 37.47 lbs 47.17 lbs 58.20 lbs
M390 Heavy Duty - Standard lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft 16.41 ft
Duo 4.18 lbs 7.28 lbs 10.01 lbs 13.23 lbs  16.09 lbs 19.05 lbs 25.13 lbs  31.11 lbs
Trio 7.49 lbs 12.12 lbs 17.46 lbs 23.15 lbs 27.99 lbs 33.28 lbs 45.20 lbs 55.12 lbs
Quatro 9.92 lbs 16.76 lbs 23.81 lbs 30.87 lbs 37.70 lbs 44.75 lbs 58.20 lbs 72.75 lbs
