Detailed information

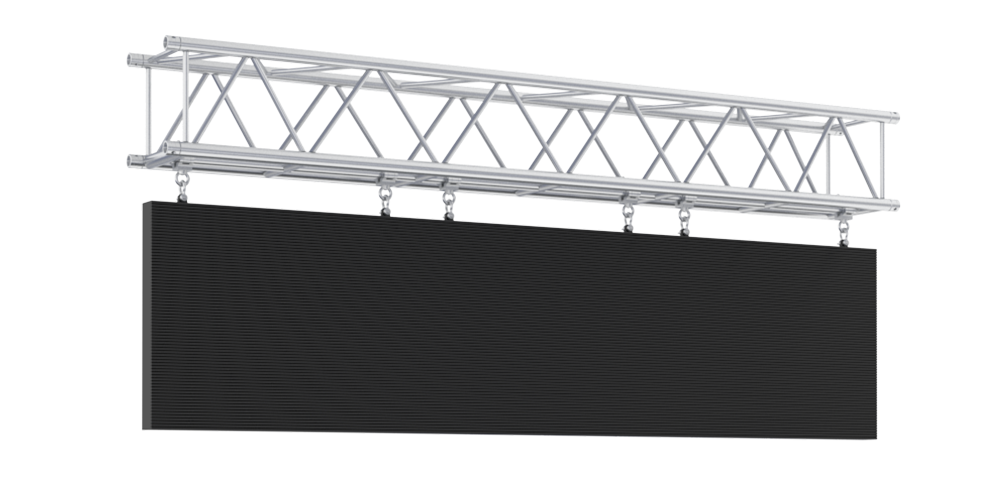

Wherever the venue, whatever the event, hanging an LED screen in the truss’ centre of gravity is absolutely crucial. Even the largest and most prestigious concert or sporting event counts for nothing if the screen is invisible to sections of the audience. The MILOS M390 LED Truss features a central chord, allowing the possibility of using clamps to secure the LED screen. Welcome to the ultimate viewing experience on the market.

Produced in MILOS’ state-of-the-art factories, the M390 Truss offers safe, easy, and stable hanging of QTL-LED screens. And because it is clamped in the centre of the rigging, you gain lots more clear hanging space.

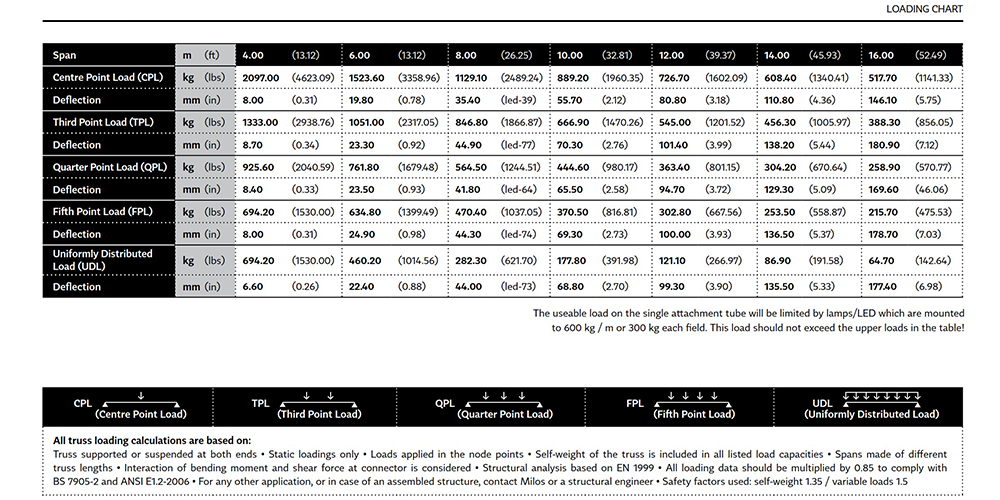

The truss is available in standard lengths from 0.5 metres up to 5 metres. Mounting with the included connector set is fast, safe, and secure. As usual, the payloads are specified in a load table for different load figures.
With 48x3 mm main chords and 20x2 mm diagonals, the truss is sufficiently robust for all standard LED screens. By using a 50 mm additional chord, the M390 Truss is fully compatible with the coupler series Cell200, Cell400, and Cell500. It is able to carry local point loads of up to 150 kg.
Powder coat colour finishes are available on request.
Using the Milos M390 LED Truss means you can prepare and deliver screened events to huge numbers of people secure in the knowledge that all participants will see all the visuals clearly and accurately. Satisfaction guaranteed.

Milos, a brand with 25+ years’ experience with fast, flexible, and affordable quality solutions. “MILOS. Works Better”

• Features a central bar for the safe, easy and balanced
   hanging of LED screens
• Available in 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m
   and 5m lengths
• Quick, simple and secure assembly
• Connection kit supplied with every truss length
   and junction
• Compatible with 200/400/500/600 series cell clamps
• Powder coat colour finish available on request
M390 LED - Standard lenghts and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.20 ft 9.84 ft 13.12 ft 16.40 ft
Quatro 9.03 lbs 13.88 lbs 20.06 lbs 25.35 lbs 30.64 lbs 35.93 lbs 47.39 lbs 57.98 lbs

M390 LED truss

Fully compatible with M390 truss
Available colors:
Main Tube
48 x 3 mm
Braces
20 x 2 mm
Available Length
0,5 - 5 m
Size
388 x 388 mm
Span
65.61 ft
M390 LED truss
M390 LED truss
