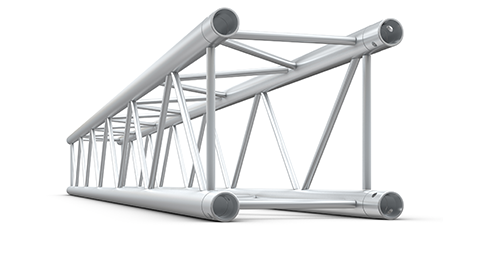

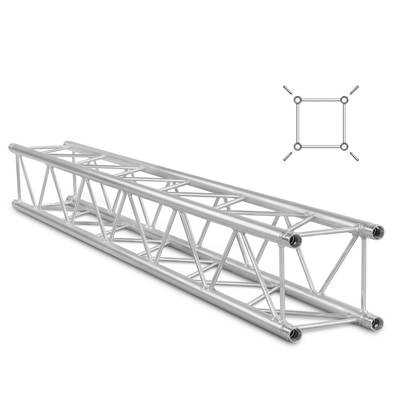

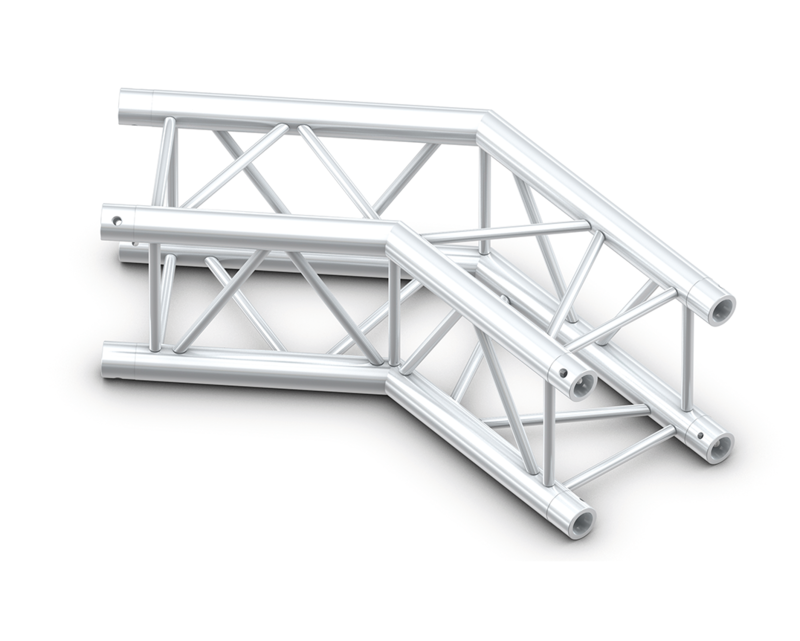

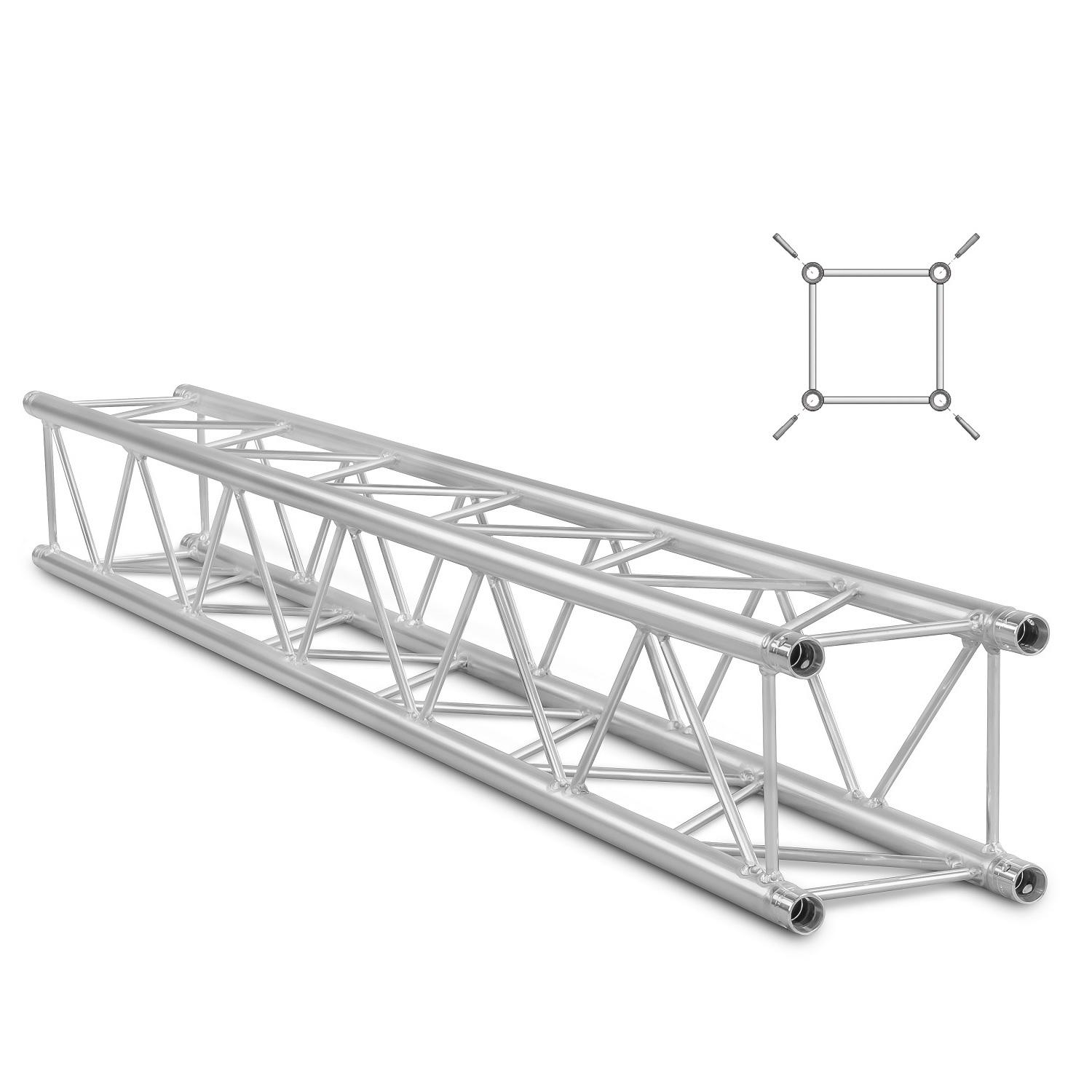

M222 - Compact & Lightweight

M222 conical truss is the right choice for retail, display booth and decorative applications.
Code
QTM
Main Tube
1.26 x 0.06 inch
Braces
0.39 x 0.06 inch
Available Length
1.64 - 13.12 ft
Size
222 x 222 mm
Span
26.25 ft
M222 - Compact & Lightweight

Detailed information

Description

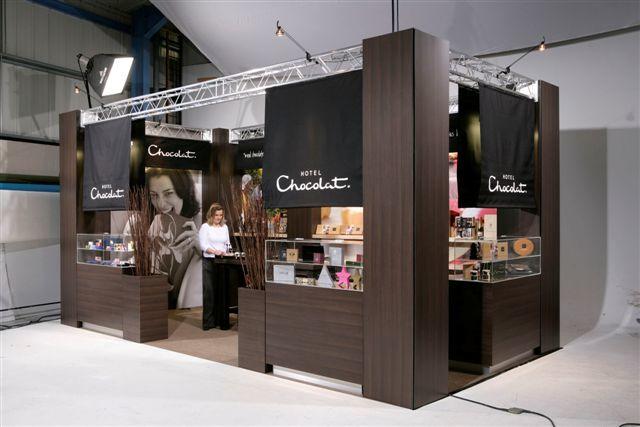

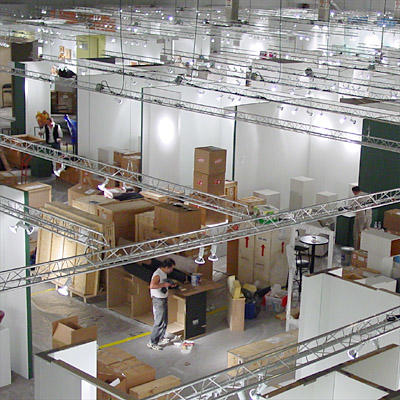

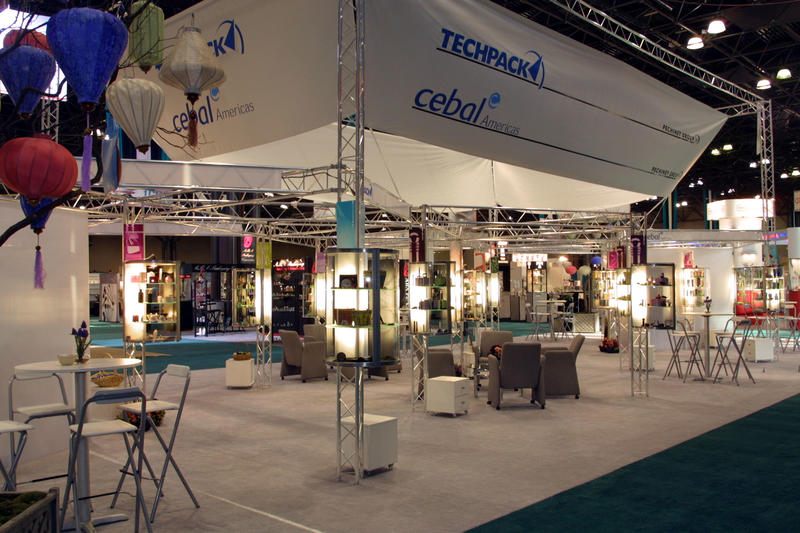

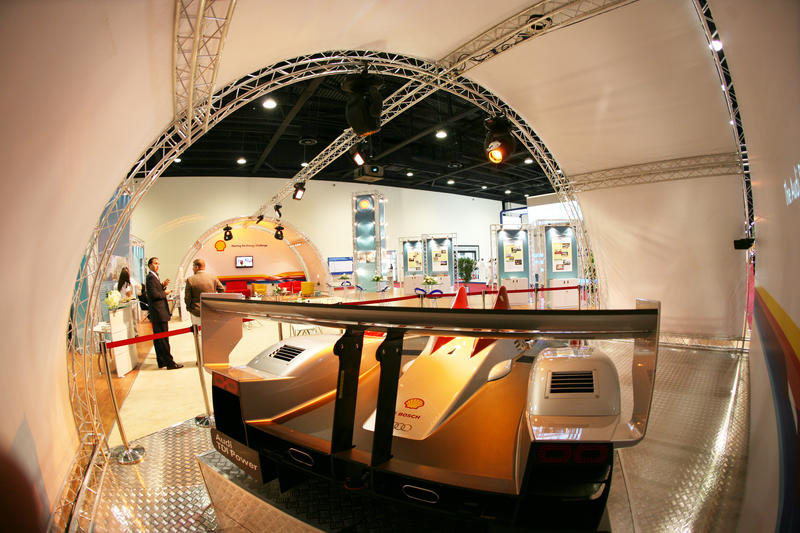

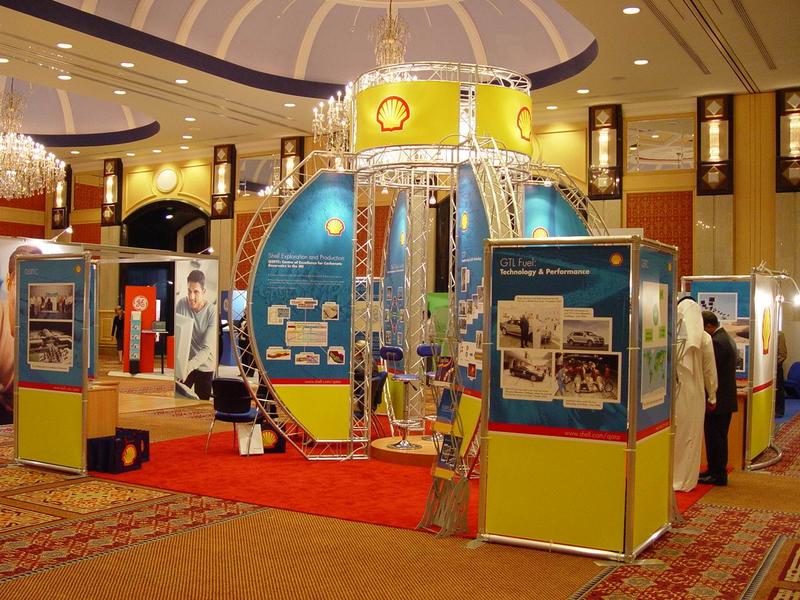

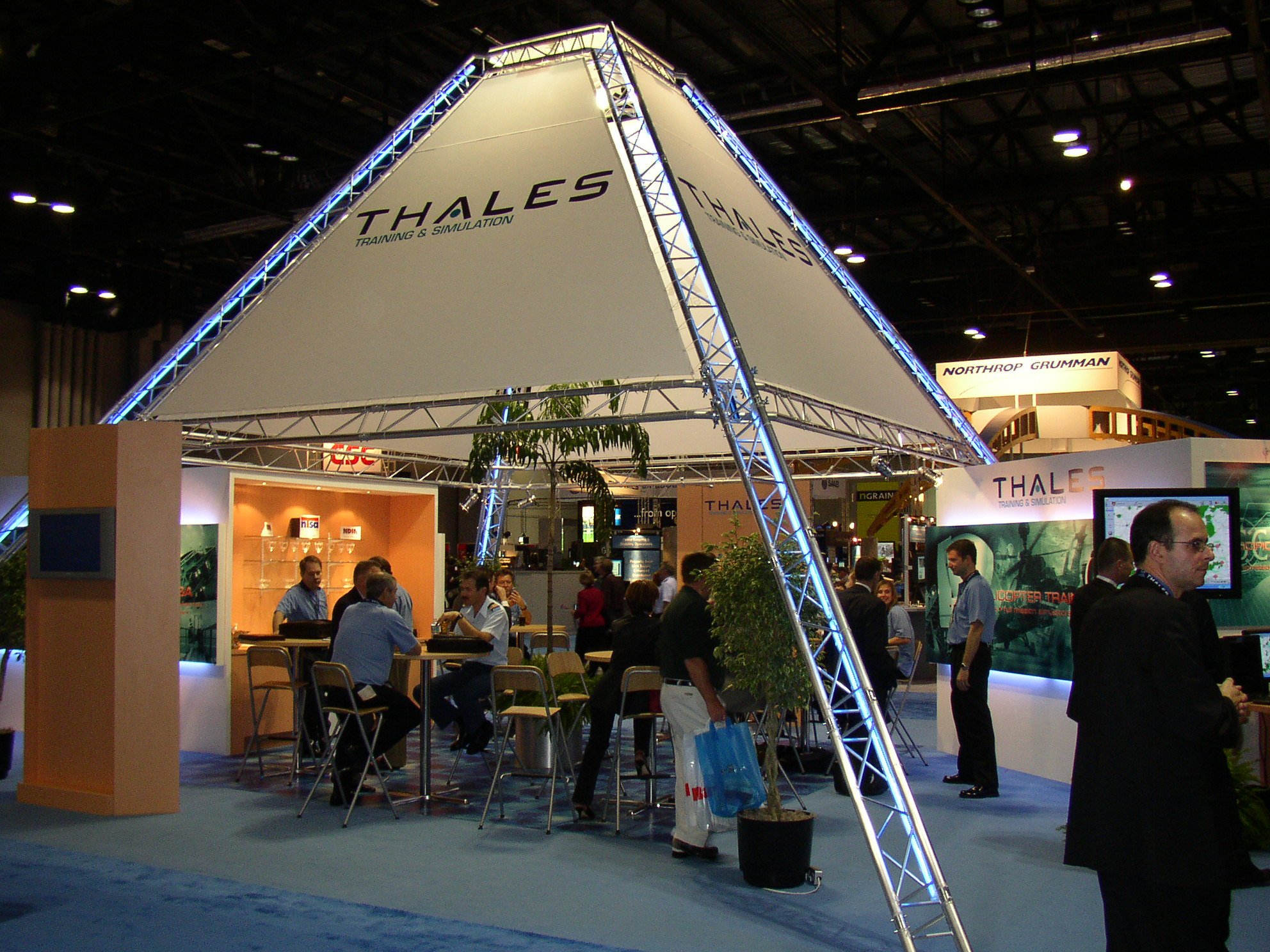

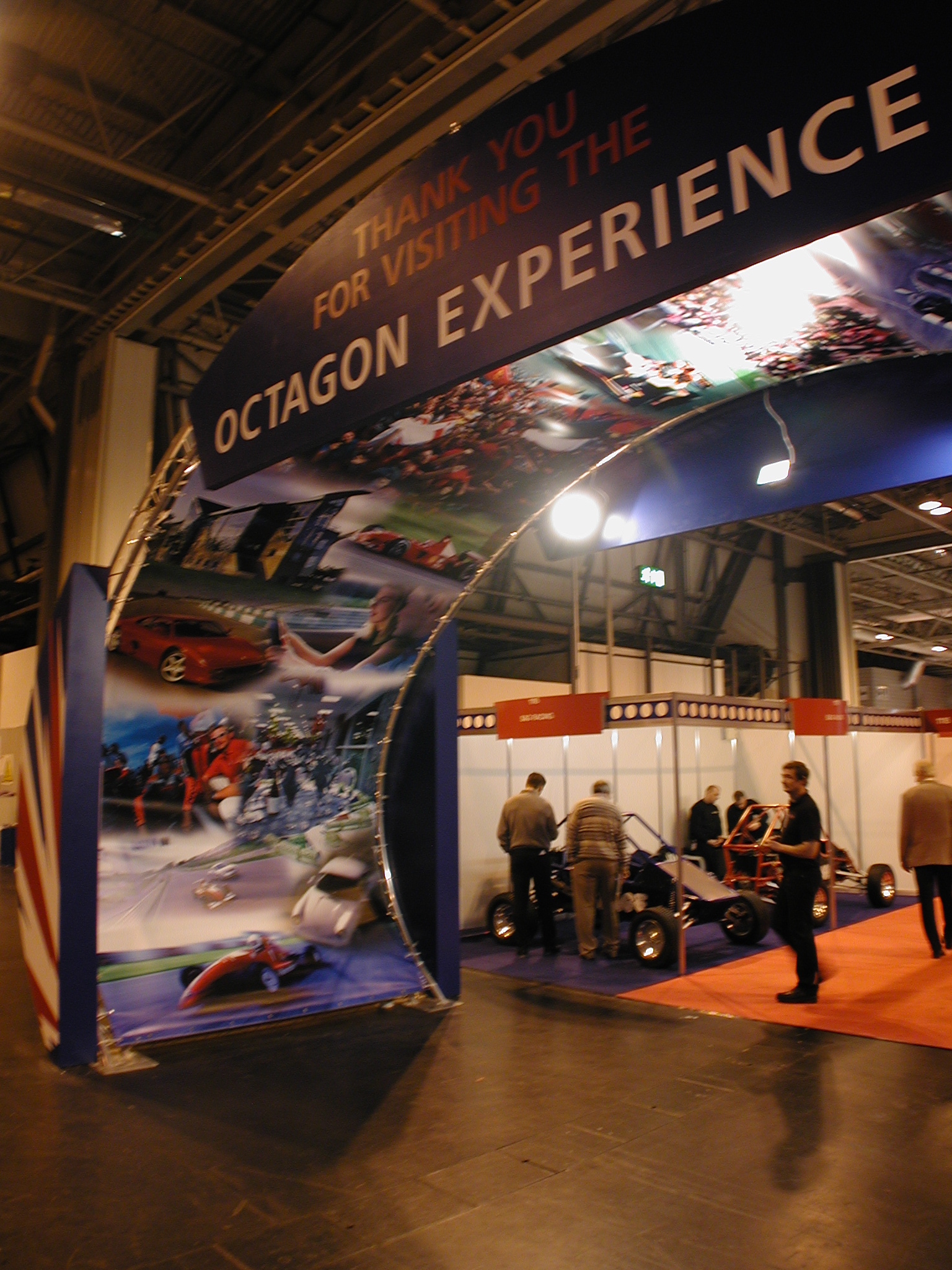

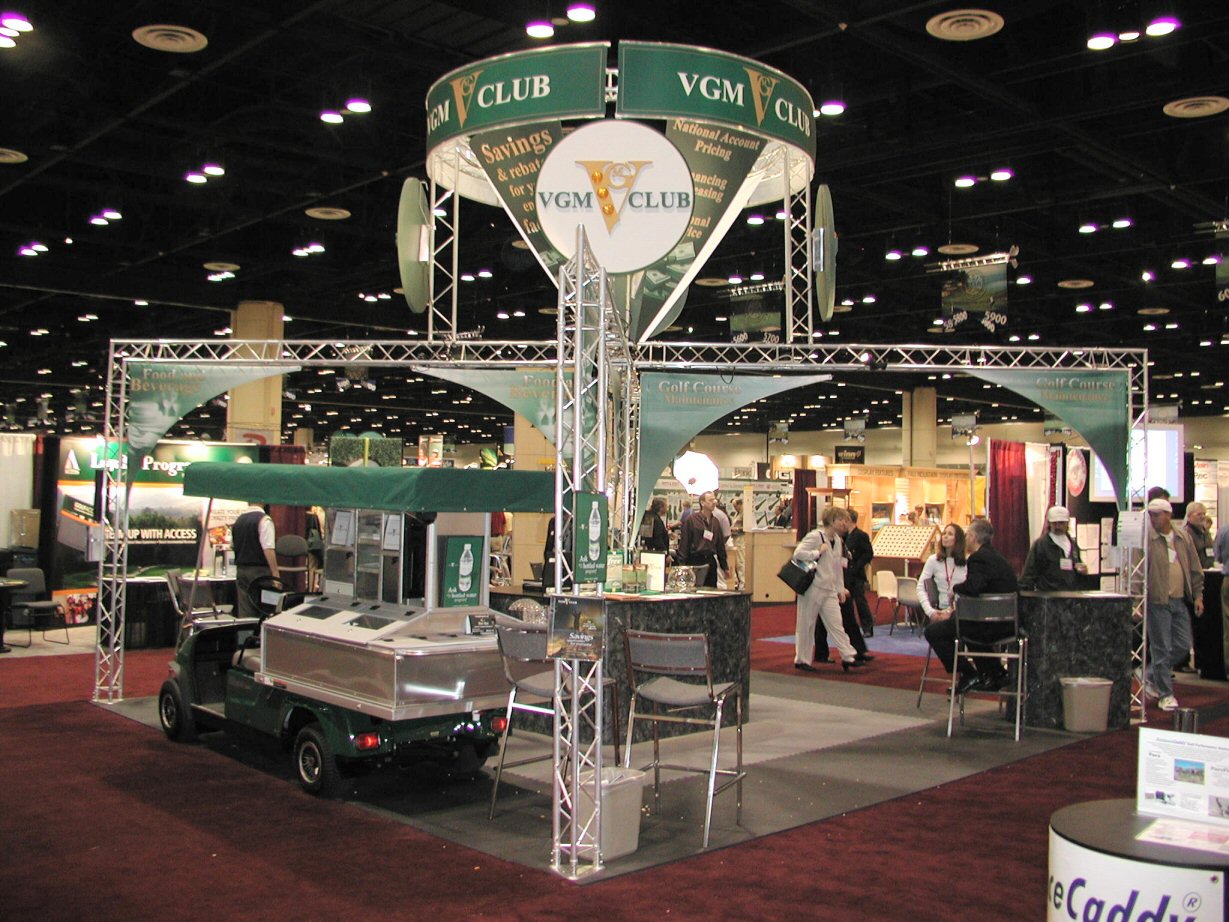

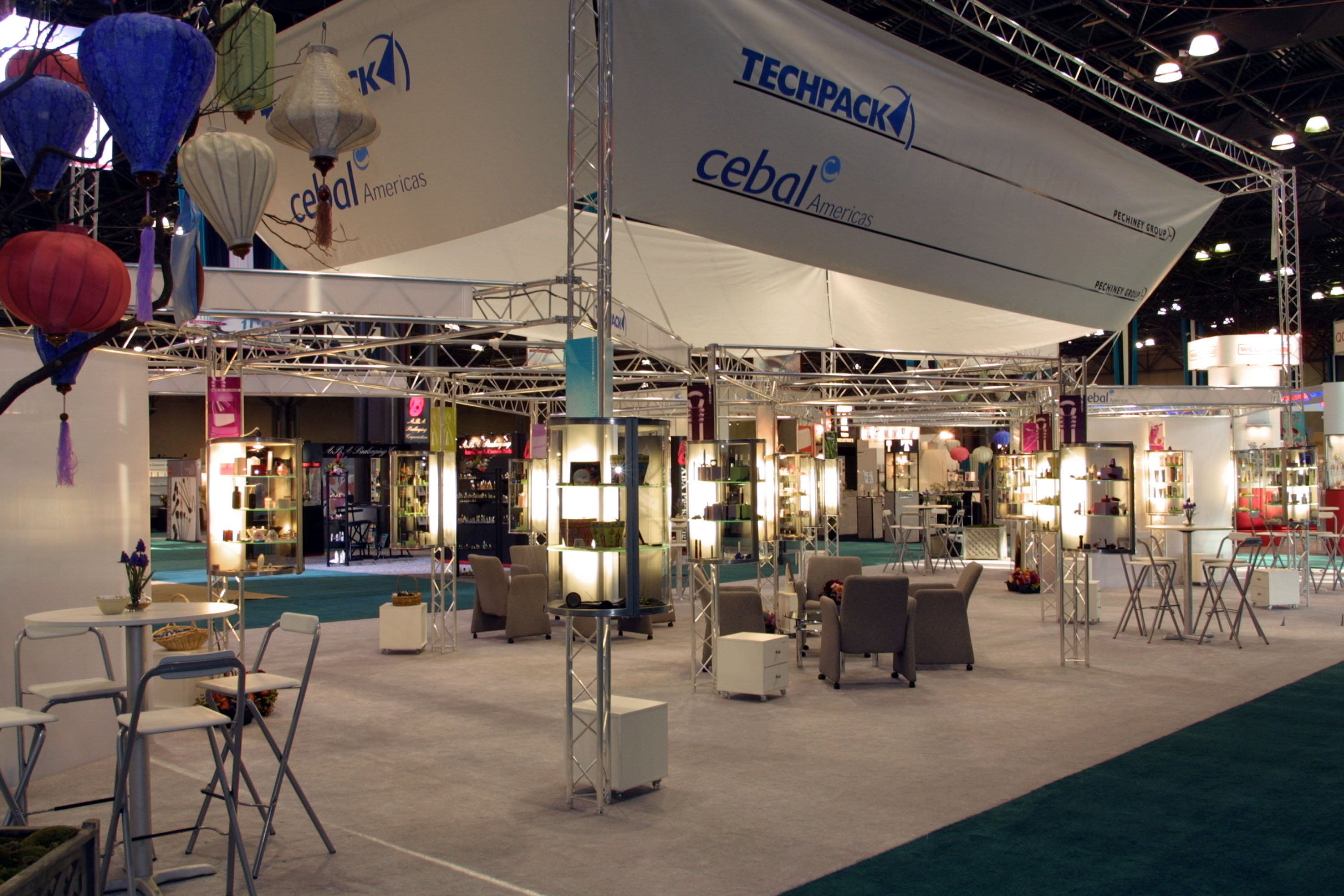

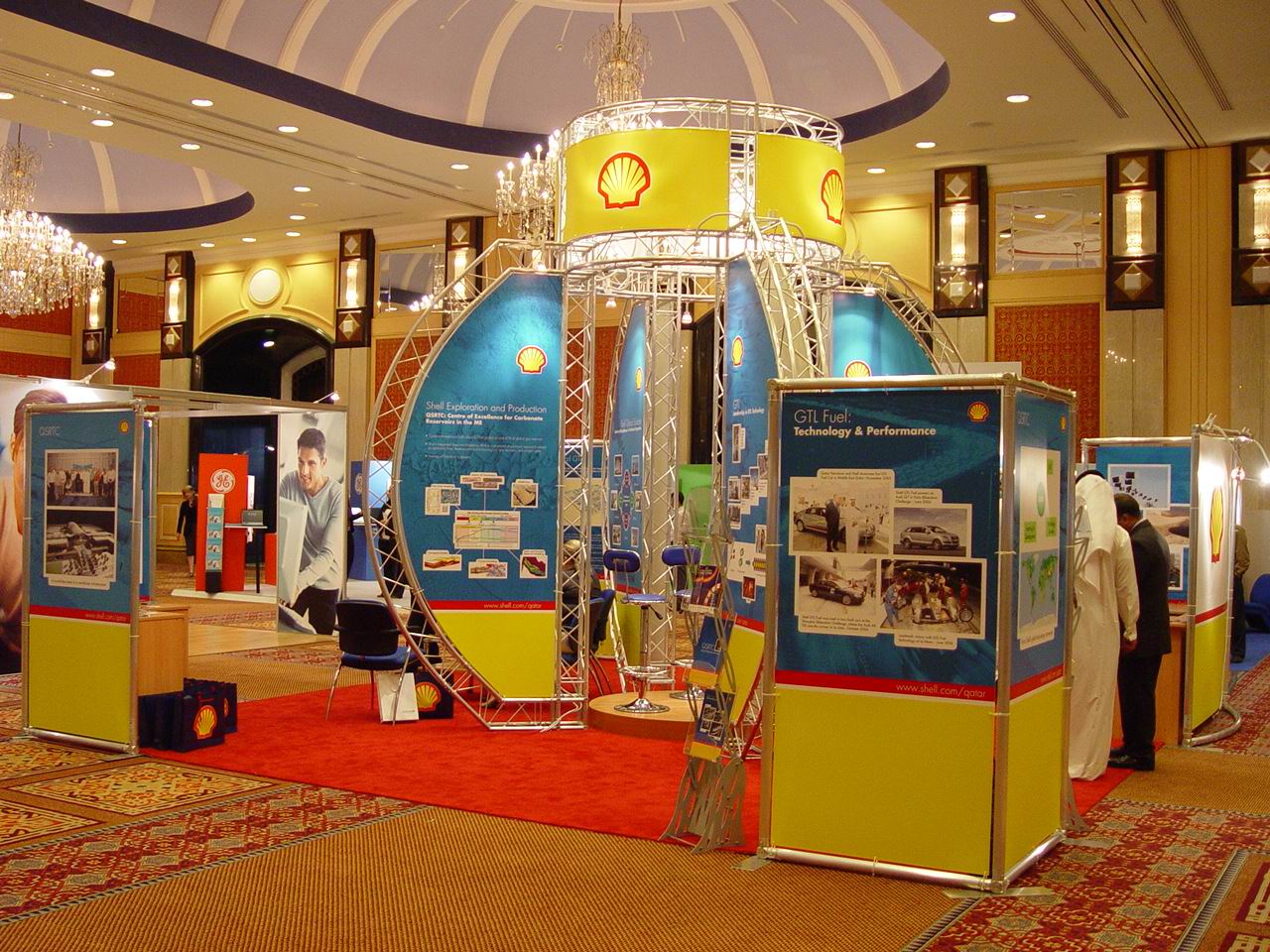

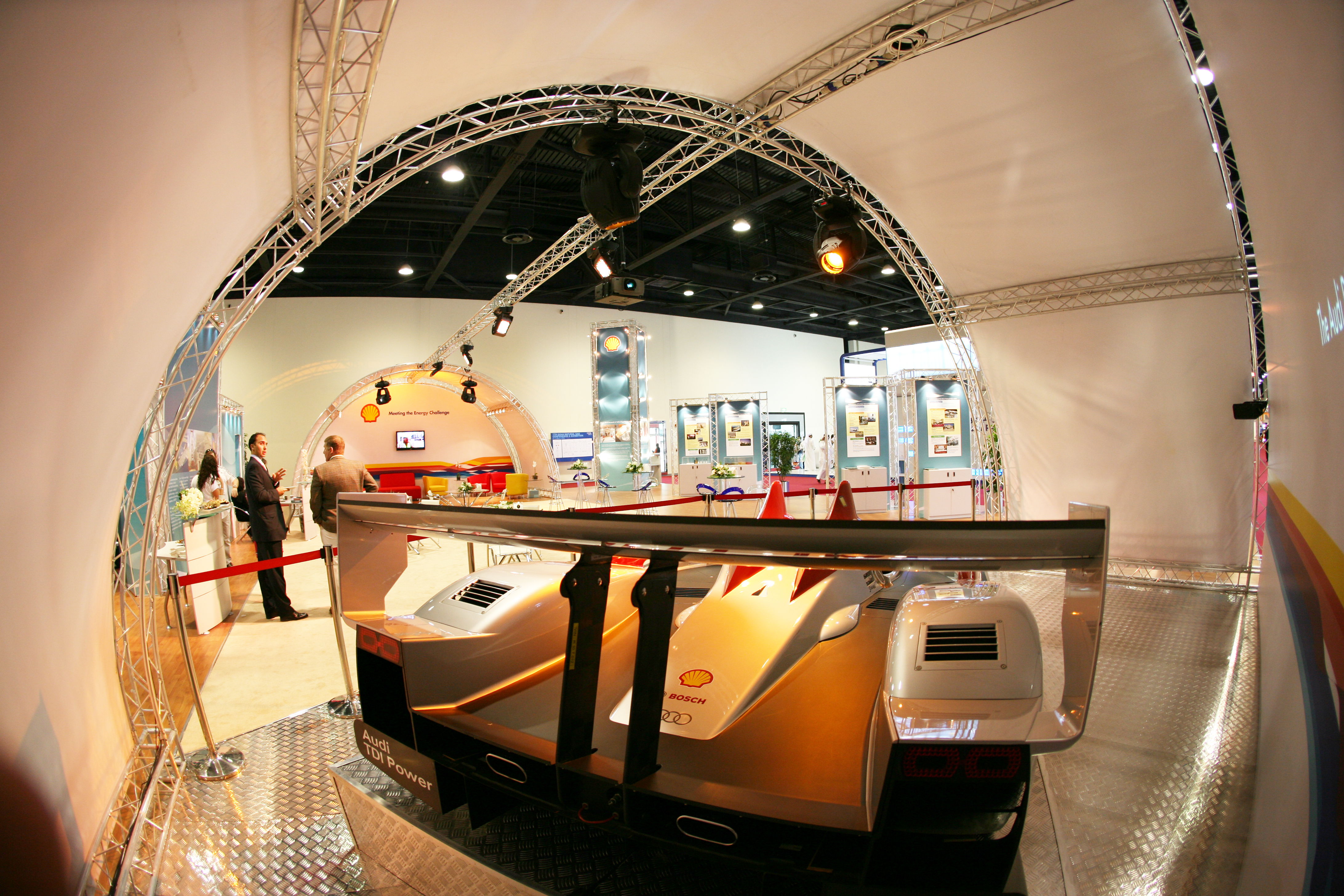

The M222 system offers outstanding weight loading capabilities despite its small size and light weight. The combination of compact transport/storage size and reduced weight of the truss makes M222 the right choice for retail, truss display booths at trade shows and decorative applications.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • Compact display series system

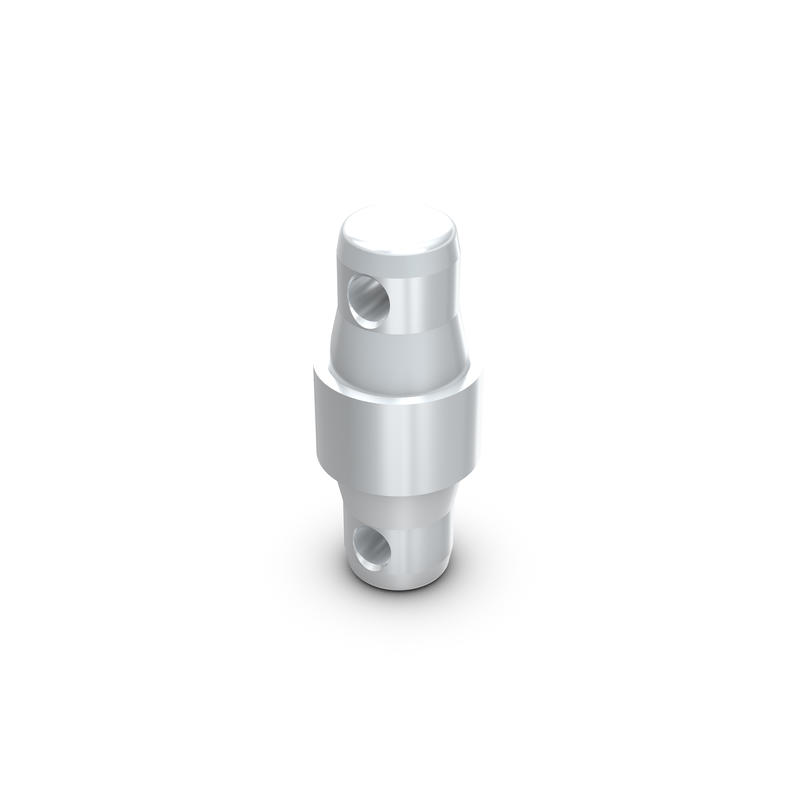

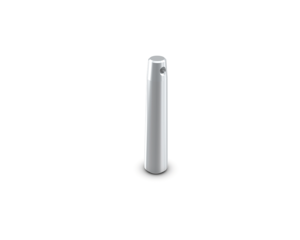

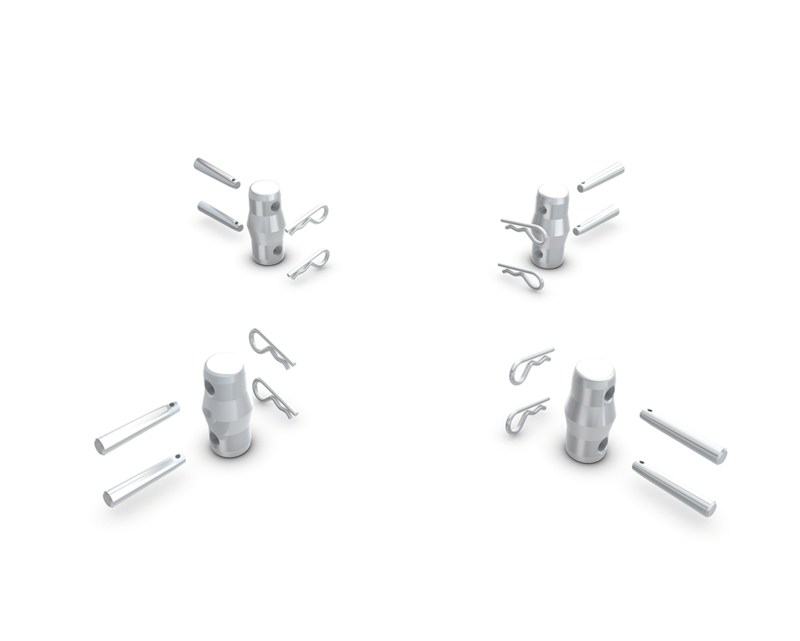

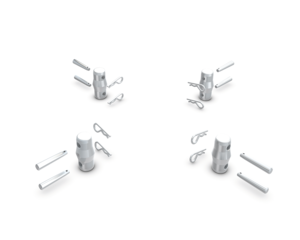

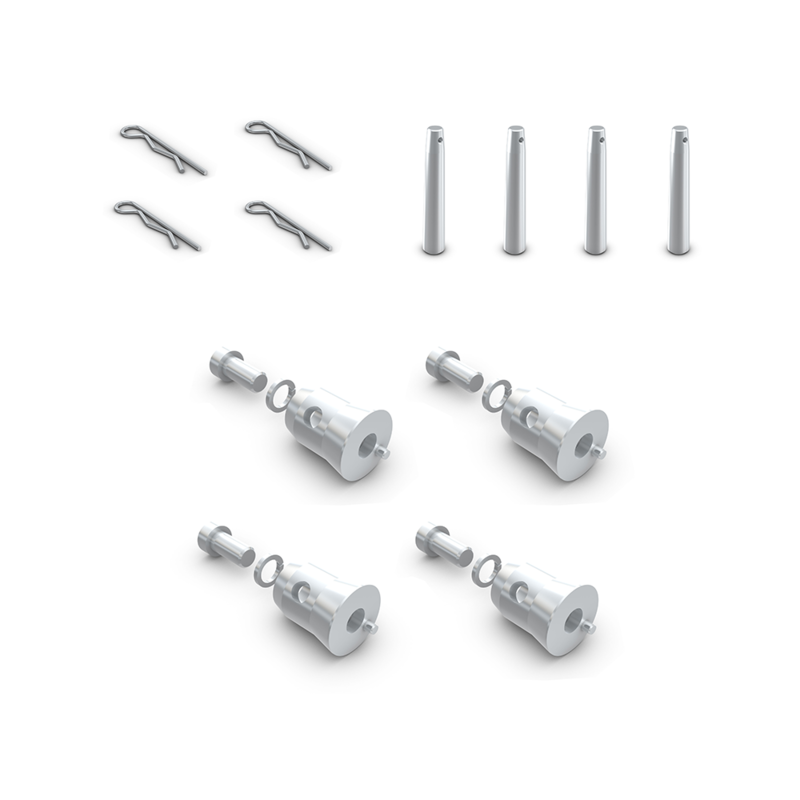

  • Connection kit supplied with every truss length or junction
  • Lightweight, modular construction
  • Compatible with cell 100 series
  • Fast connection for quick, simple and secure assembly
  • Compatible with Xtruss accessories
  • Impressive free-span characteristics for its size
  • Powder coat colour finish available on request
Standart lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft
Duo 1.97 lbs 3.75 lbs 5.62 lbs 7.5 lbs 9.37 lbs 11.24 lbs 14.99 lbs
Trio 2.54 lbs 5.07 lbs 7.61 lbs 10.14 lbs 12.69 lbs 15.21 lbs 20.29 lbs
Quatro 3.96 lbs 6.61 lbs 10.03 lbs 13.23 lbs 16.53 lbs 20.06 lbs 27.07 lbs
