M222 - Compact & Lightweight

M222 conical truss is the right choice for retail, display booth and decorative applications.
Code
BTM
Main Tube
1.26 x 0.06 inch
Braces
0.39 x 0.06 inch
Available Length
1.64 - 13.12 ft
Max. SWL
612.89 lbs
Size
8.74 inch
Span
26.25 ft
M222 - Compact & Lightweight

Detailed information

Description

The M222 system offers outstanding weight loading capabilities despite its small size and light weight. The combination of compact transport/storage size and reduced weight of the truss makes M222 the right choice for retail, truss display booths at trade shows and decorative applications.
Call or e-mail us today for more information or to request a quote.

NOTE: Duo loading data are based on use in vertical orientation with lateral stabilisation of both the top and bottom main chord every 1m”.


Key benefits

  • Compact display series system

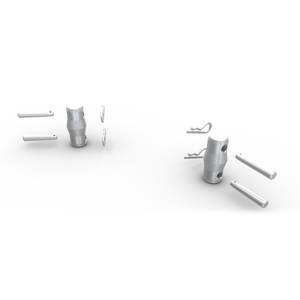

  • Connection kit supplied with every truss length or junction
  • Lightweight, modular construction
  • Cell 100 series compatible
  • Fast connection for quick, simple and secure assembly
  • Xtruss accessories compatible
  • Impressive free-span characteristics for size
  • Powder coat colour finish available on request
Standart lengths and weights available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft
Duo 1.33 lbs 2.43 lbs 3.53 lbs 4.63 lbs 5.3 lbs 6.39 lbs 8.38 lbs
Trio 2.21 lbs 4.41 lbs 5.95 lbs 7.49 lbs 9.26 lbs 11.02 lbs 14.33 lbs
Quatro 3.09 lbs 5.29 lbs 7.49 lbs 10.58 lbs 12.13 lbs 14.55 lbs 19.18 lbs
