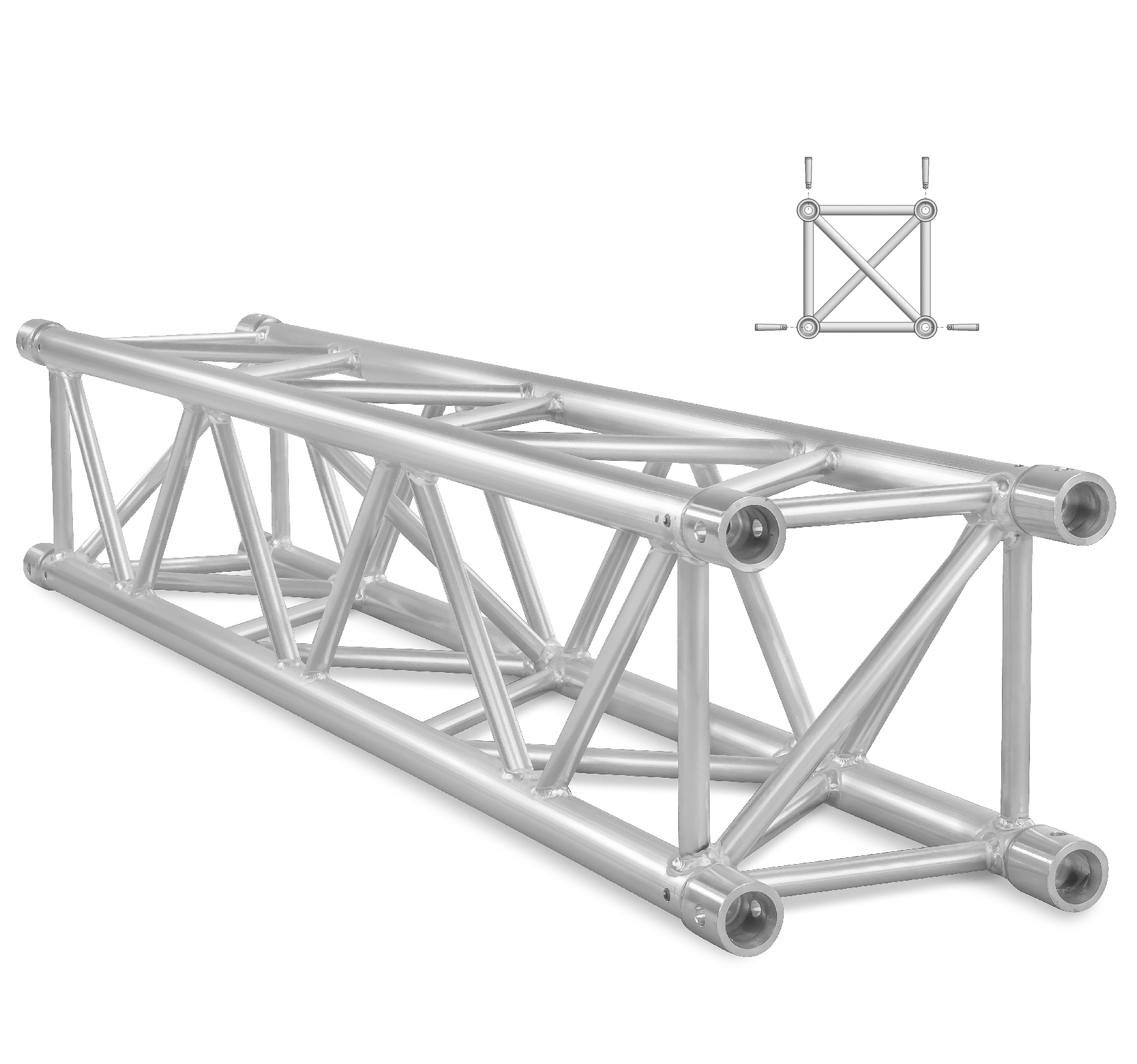

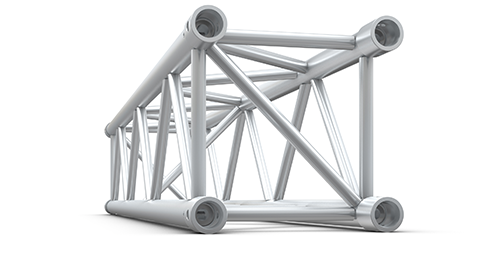

M400 - Mid Range series with high end performance

Strong and reliable heavy-duty truss series for the stage and rental markets featuring pin holes at 90 degree angles to the ground for convenient access on flat surfaces.
Select format:
QuatroRect
Code
QTO
Main Tube
2 x 0,16 inch
Braces
0,98 x 0,12 inch
Available Length
1,64 - 13,12 ft
Max. SWL
9907,57 lbs
Size
14,10 x 14,10 inch
Span
32,81 ft

Download PDF

Basic info

Description

M400 has been specifically designed for heavy-duty applications and is ideally suited for the truss stage and rental markets. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface. Trust the strength and reliability of the M400 for your events that require an outdoor stage or concert stage.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • Compact medium-duty M400 Series truss range
  • Great free-span & loading characteristics (up to 20m / 65.61 ft)
  • Square or compact rectangular format for low volume
  • Connection kit supplied with every truss length & junction
  • Super-size conical connection for maximum rigidity
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • User-friendly tapered pin holes with 90 degree orientation to ground when laid flat for ease of assembly
  • Powder coat colour finish available on request

Tables

M400 - Standard lengths and weight available
  1.64 ft 3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 13.12 ft
Rect 17.42 lbs 26.23 lbs 35.05 lbs 43.23 lbs 52.05 lbs 60.87 lbs 77.38 lbs
Quatro 18.74 lbs 28.88 lbs 38.8 lbs 48.3 lbs 58.2 lbs 68.67 lbs 87.3 lbs
