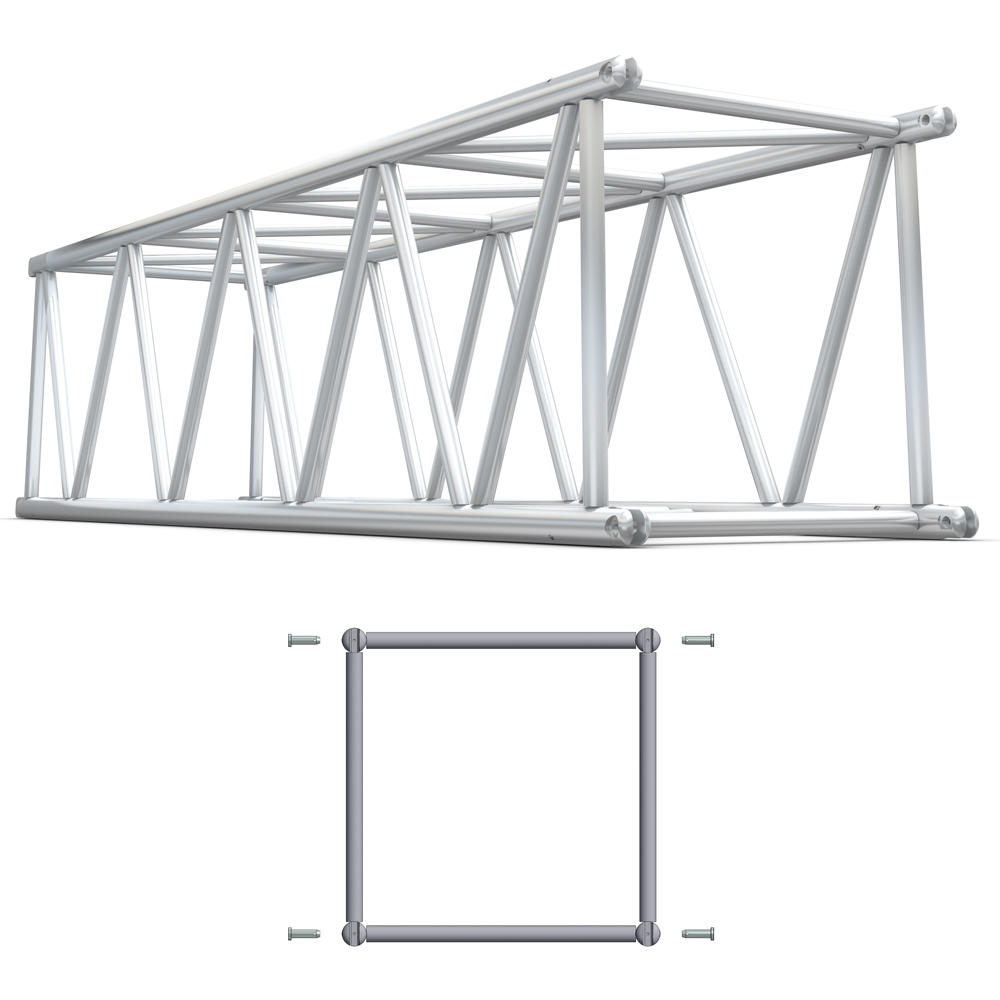

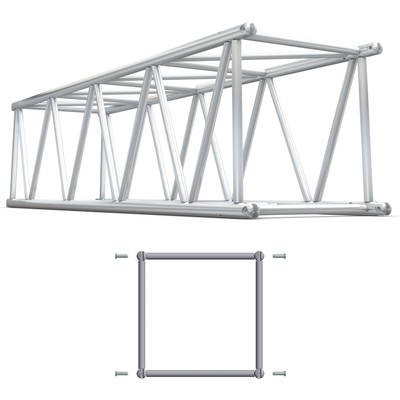

4GS-62 - High Capacity Fork

Modular, space saving aluminum truss system with extended capacity and span specifications, as well as traditional fork & tongue connections for the stage, lighting and rigging tower needs of touring productions.
Select format:
RectFold
Code
4GS-62
Main Tube
1,89 x 0,16 inch
Braces
0,98 x 0,12 inch
1,26 x 0,12 inch
Available Length
3,95 - 9,84 ft
Max. SWL
16317,73 lbs
Size
24,29 x 24,29 inch
Span
59,06 ft

Download PDF

Basic info

Description

Our 4GS-62/62F range of modular aluminum systems provide reliable high loading capacity for your touring productions. The superior performance and durability of the traditional fork and tongue connection is popular with rental companies worldwide. The 4GS-62F folding format combines a high level of free-span and load capacity with reduced space requirements for storage and transportation. Perfect for your stage truss, lighting truss, and rigging tower needs.
Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Great free-span & loading characteristics (upto 30m / 98.43 ft)
  • High capacity fork-connection series
  • Wide range of standard lengths & accessories
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • Square or compact folding formats available
  • Powder coat colour fi nish available on request
  • All components supplied complete with connection accessories

Tables

4GS-62 - Standard lengths and weights available
  3.95 ft 5.33 ft 7.87 ft 9.84 ft
4GS-62 44 lbs 61.6 lbs 88 lbs 112.2 lbs
4GS-62F 41.8 lbs 55 lbs 81.4 lbs -
