Products / Truss / M760 - High Capacity truss range
Products

Detailed information

Description

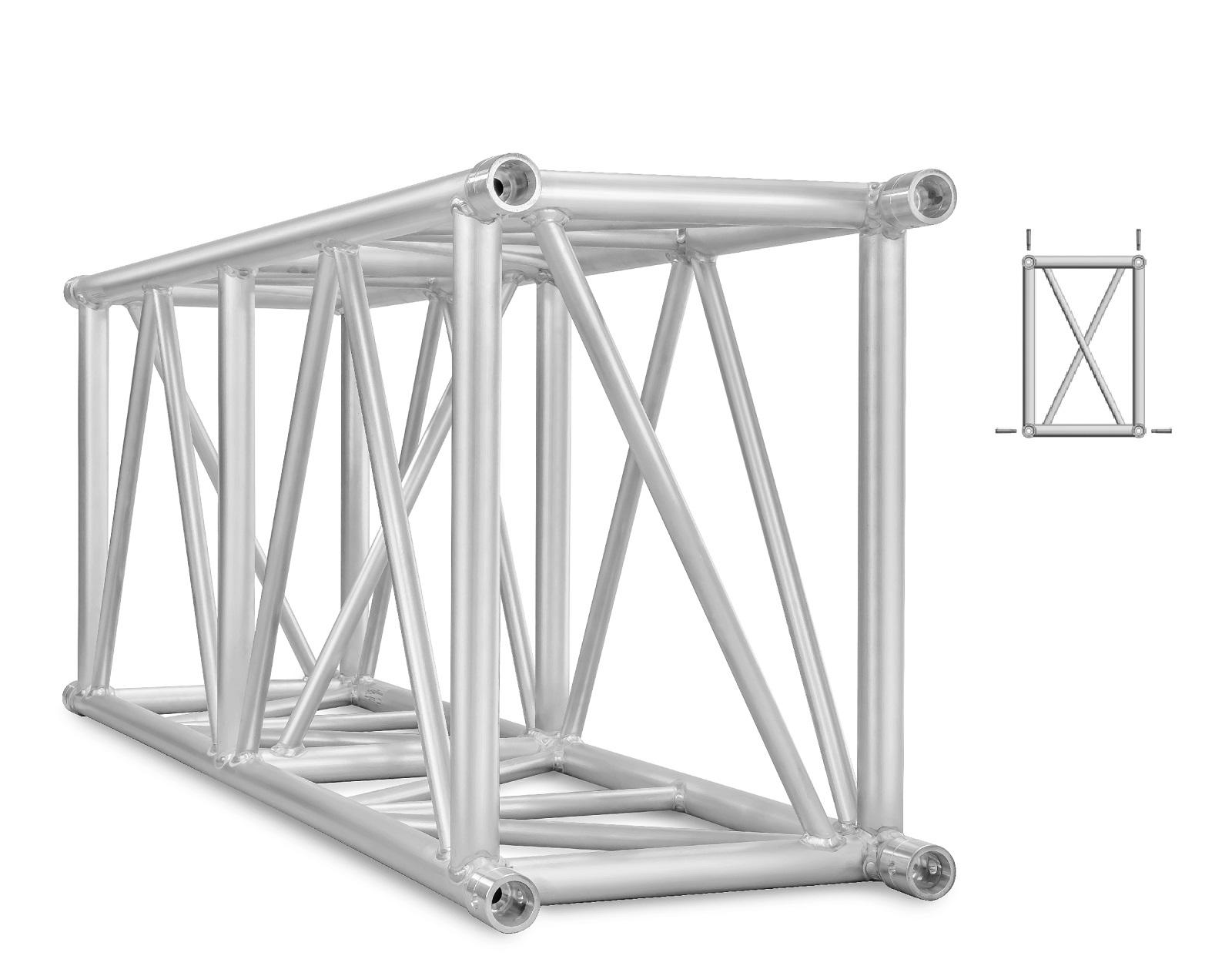

M760 is a high-capacity truss system which adapts to its users' needs. All events which require an outdoor stage, concert stage or podium will be well-served by the M760. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • NEW high-capacity M760 Series truss range

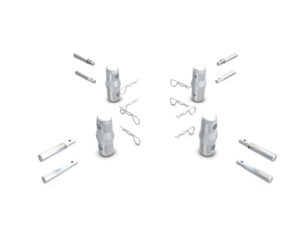

  • Connection kit supplied with every truss length & junction
  • Super-size conical connection for maximum rigidity
  • Compatible with 200 / 400 / 500 / 600 series cell clamps
  • User-friendly tapered pin hole orientation for ease of assembly
  • Powder coat colour finish available on request
  • Great free-span & loading characteristics (up to 30m / 98.43 ft)
M760 - Standard lengths and weights available
  3.28 ft 4.92 ft 6.56 ft 8.2 ft 9.84 ft 11.48 ft 13.12 ft
Fold 48.88 lbs 73.49 lbs 81.82 lbs 105.38 lbs 113.63 lbs 137.19 lbs 145.37 lbs

M760 - High Capacity truss range

High-capacity truss series for outdoor stages, concert stages or podiums featuring pin holes at 90 degree angles to the ground for convenient access on flat surfaces.
Available colors:
Code
RTP
Main Tube
2 x 0.16 inch
Braces
1.18 x 0.12 inch
Size
20.47 x 30 inch
Span
104.98 ft
