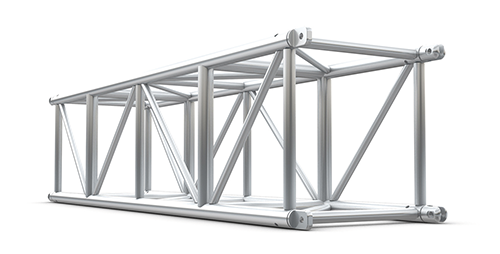

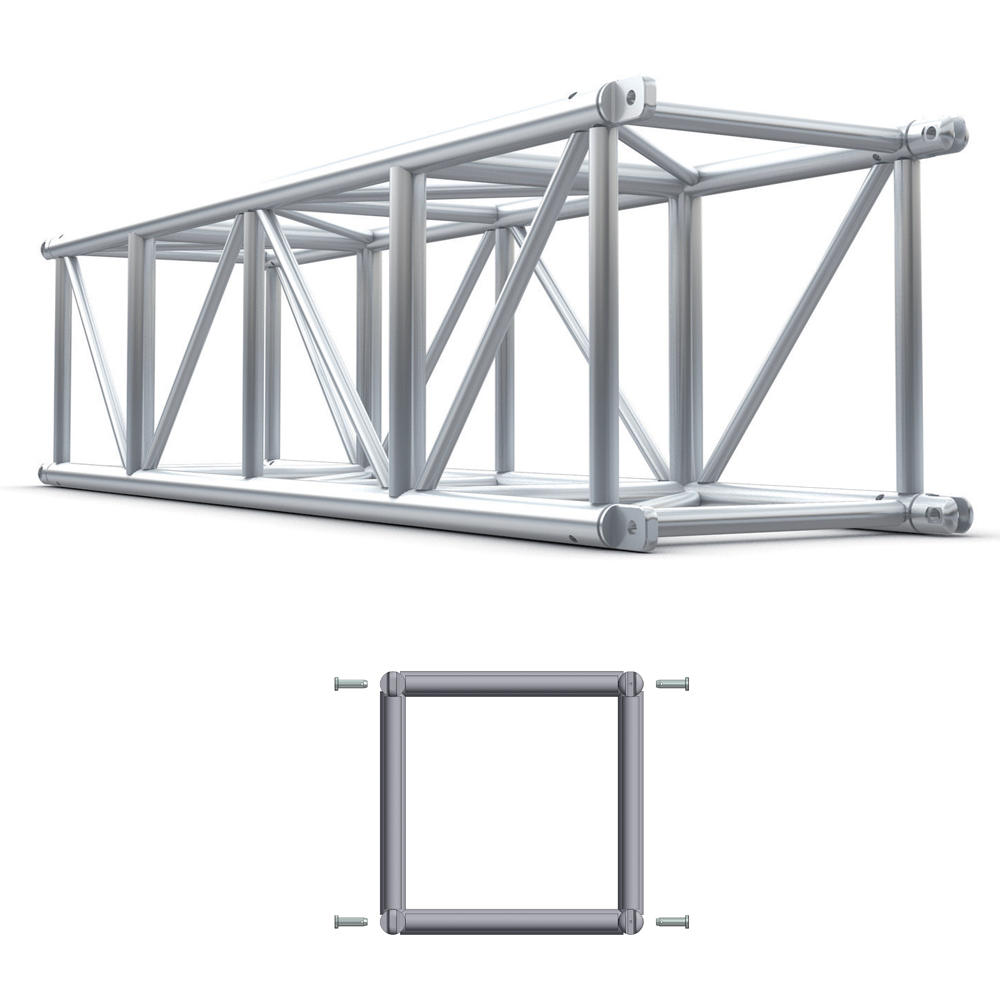

4GS-50 - High Capacity Fork Connection Series

Modular aluminum truss system for large truss structures, concert stages, towers and gantries with traditional fork & tongue connection.

Code
4GS-50
Main Tube
1.89 x 0.18 inch
Braces
0.98 x 0.12 inch
Available Length
1.64 - 13.12 ft
Size
19.68 x 19.68 inch
Span
65.62 ft

Download PDF

Basic info

Description

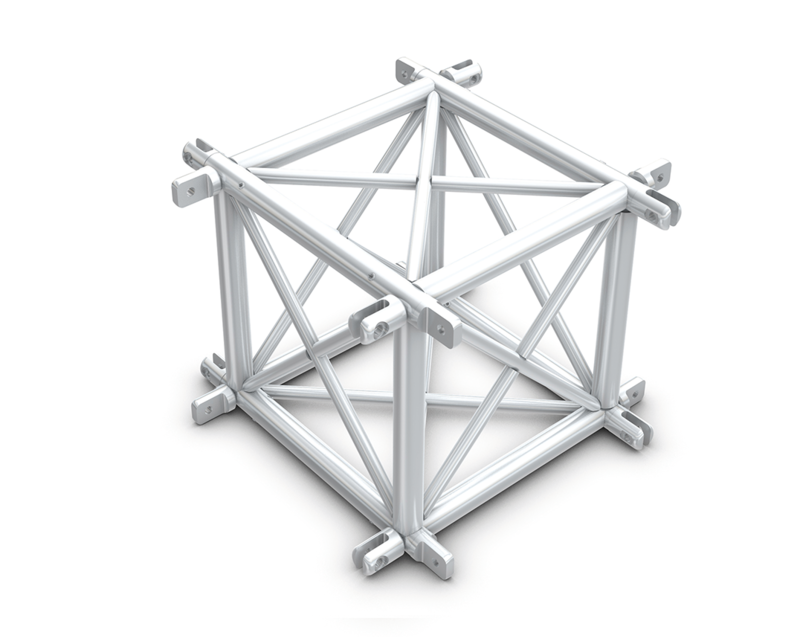

Our 4GS-50 range of modular aluminium systems are ideal solutions for large truss structures, towers and gantries. Superior performance and durability of the traditional fork and tongue connection is popular with rental companies worldwide. They have come to rely on the 4GS-35 and 4GS-50 for all forms of rigging towers, exhibition gantries and large concert stages. Components can be supplied in either Natural Mill Aluminium or a variety of Powder Coated colours and finishes.

Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Medium-duty truss range

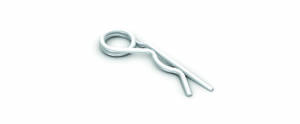

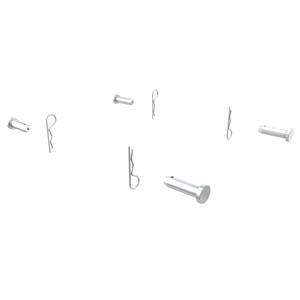

  • All components supplied complete with connection accessories
  • Wide range of standard lengths & accessories
  • Compatible with 200 / 400 / 500 / 600 series cell clamps
  • Powder coat colour finish available on request
  • 4GS-50 great free-span & loading characteristics (up to 30m / 98.43 ft)

Tables

4GS-50 - Standard lengths and weights available
1.64 ft 3.28 ft 6.56 ft 9.84 ft 13.12 ft
22 lbs 35.2 lbs 70.4 lbs 105.6 lbs 140.8 lbs
