Detailed information

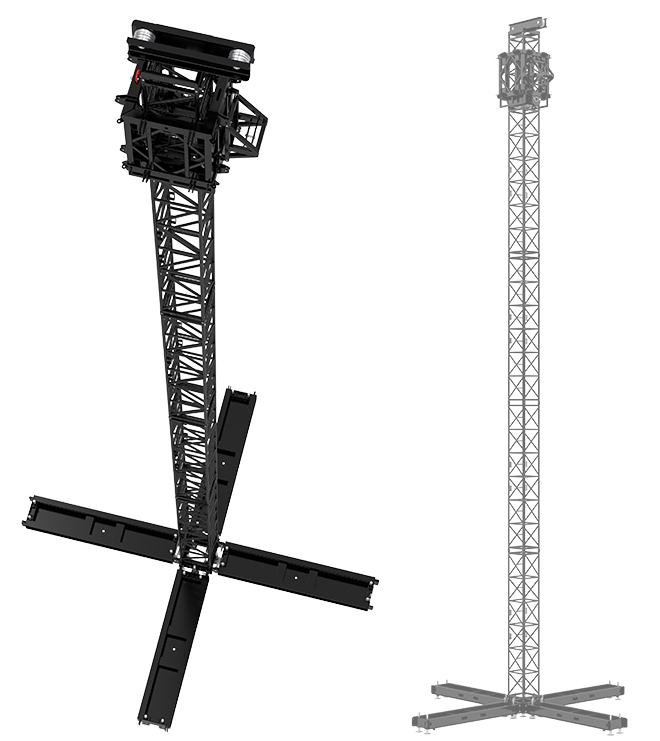

The S-MT-Q - Steel Tower is constructed with special, ultra high-strength steel alloy truss sections that allow it to handle an average of 2.5x more loading at just double the weight compared to aluminium systems with the same dimensions and under the same deflection.
When used as 20 m high, free-standing tower integrated in S-MT-Q-01 Base, the load capacity is up to 50 960 kg or when used with a Locking Unit of to 45 333 kg.

When used as a 20m high tower in a guy-wire braced ground support, the load capacity is up to 70 189 kg, or reduced to 45 333 kg when used with a sleeve block and locking unit configuration.

  Features and benefits:

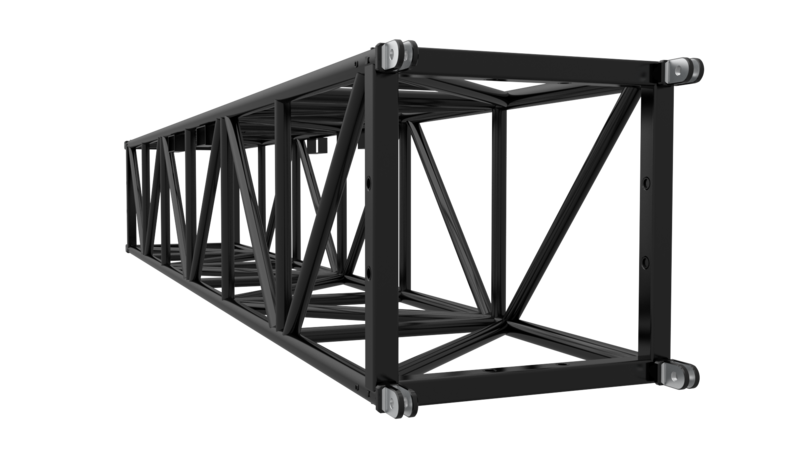

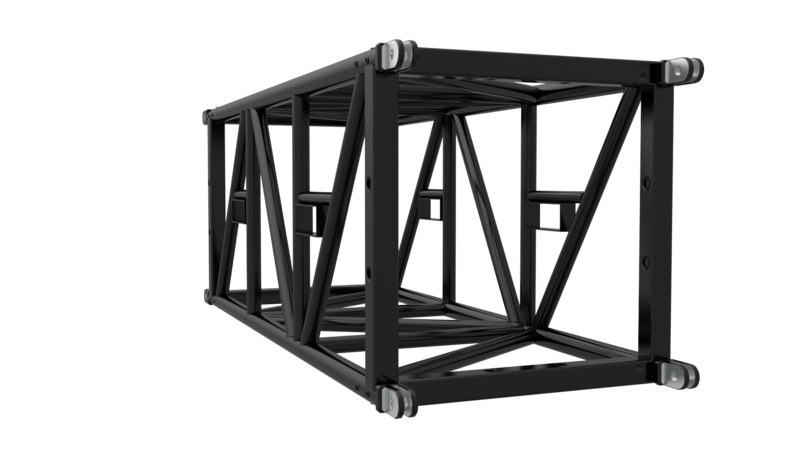

  • Constructed with MILOS S-QTQT Ultra High-Strength Steel Truss (780 x 780mm; 40m spans with UDL 76kg/m)
  • Steel sleeve block, steel head-section with aluminium wheels equipped with heavy-duty bearings, and a unique locking unit for protection of the sleeve block/mother grid against drop AND lift
  • End frames equipped with lateral connection options
  • Integrated ladder for easy climbing
  • Locking unit with a capacity of 45 333 kg
  • EXE hoists recommended

S-MT-Q - Steel tower

depends on configuration
S-MT-Q - Steel tower
