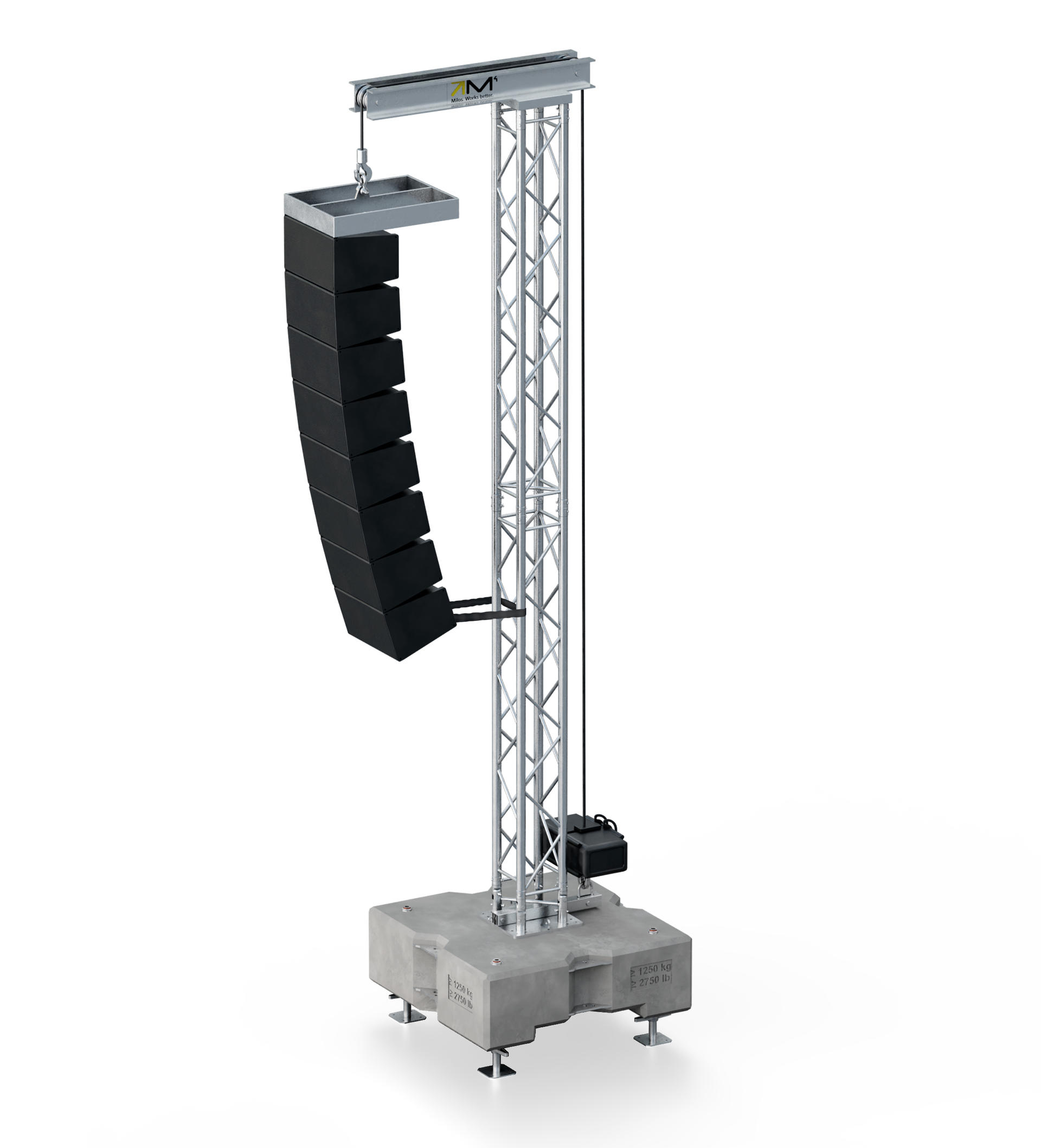

Consisting of M290V trusses, this specially designed MILOS tower is supplied together with the MILOS Concrete Ballast Base (MCBB 1.25 t). With a total height of 5 metres, it has a maximum loading capacity of 400 kg.
The loading capacity can be increased to 750 kg simply by adding two 1.25-t MCBBs stacked on top of one other.
If a higher tower is needed, simply connect the two 1.25-t MCBBs horizontally to increase the footprint area.
PA system: 400 kg (881 lbs) and a surface area of 2.0 m² (21.5 ft²)
• Tower height = 5 m (16.4 ft)
• 1x MCBB: 1x1250 kg (2755 lbs) = 1250 kg (2755 lbs) ballast
PA system: 750 kg (1653 lbs) and a surface area of 3.5 m² (37.7 ft²)
• Tower height = 5 m (16.4 ft)
• 2x MCBB: 2x1250 kg (2755 lbs) = 2500 kg (5511 lbs) ballast

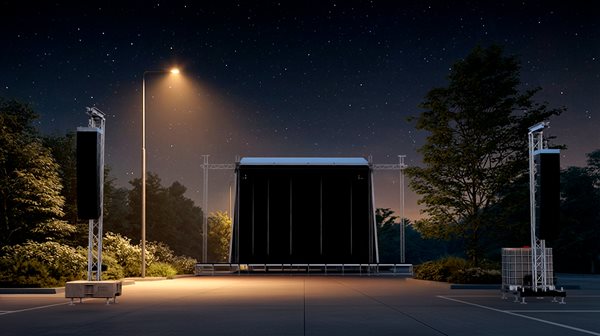

Example of use:
