Go back to Towers & LED Screens
Detailed information
Basic info
Lengths & Weights
Download section
Key benefits

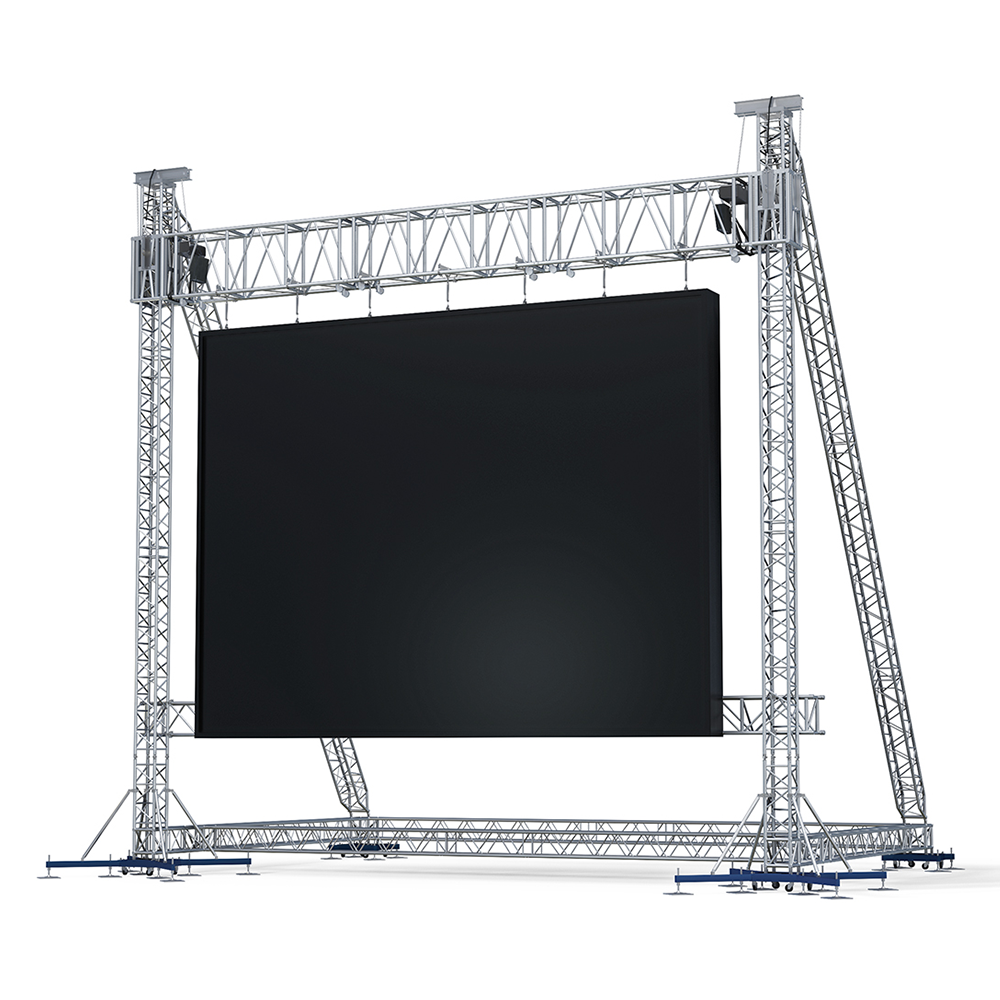

Large format MT Tower LED Screen Support solution
Various system options available to suit specific screen size & weight
Self-climbing towers ( MT3) with electric or manual hoists
EXE hoists recommended
Rear base frame & diagonal stabilizer provide obstruction-free viewing
Powder coat colour finish available on request
Technical specification
Dimensions
LED screen size
10x6 m
32.80x19.70 ft
8x6 m
26.30x19.70 ft
A
Internal width
11.36 m
37.26 ft
9.36 m
30.71 ft
B
Overall external width
13.99 m
45.89 ft
11.99 m
39.34 ft
C
Overall external depth
8.38 m
27.49 ft
8.38 m
27.49 ft
D
Clearance
8.50 m
27.88 ft
8.31 m
27.27 ft
E
Overall height
10.56 m
34.64 ft
10.56 m
34.65 ft
Loading capacity
Loading capacity
LED screen size
10x6 m
32.80x19,70 ft
8x6 m
26.30x19.70 ft
LED Screen
8x point loads equally divided
400 kg
882 lbs
500 kg
1101 lbs
4x point loads equally divided
800 kg
1764 lbs
1000 kg
2203 lbs
Max. total load
3200 kg
7056 lbs
4000 kg
8811 lbs
*See structural report for exact load positioning
Operational specifications
Design standarts
DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800
Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminum structures
Design of steel structures
• All of our structures are produced as standard under EN 1090 EXC2, including the neccessary guy wires, instruction manual and engineering report
Wind management
Max. wind speed incl. screen
28m/s - 100km/h - 62mph (Max. basic wind speed)
* Screen to be stabilized against swinging by cross truss at bottom of screen

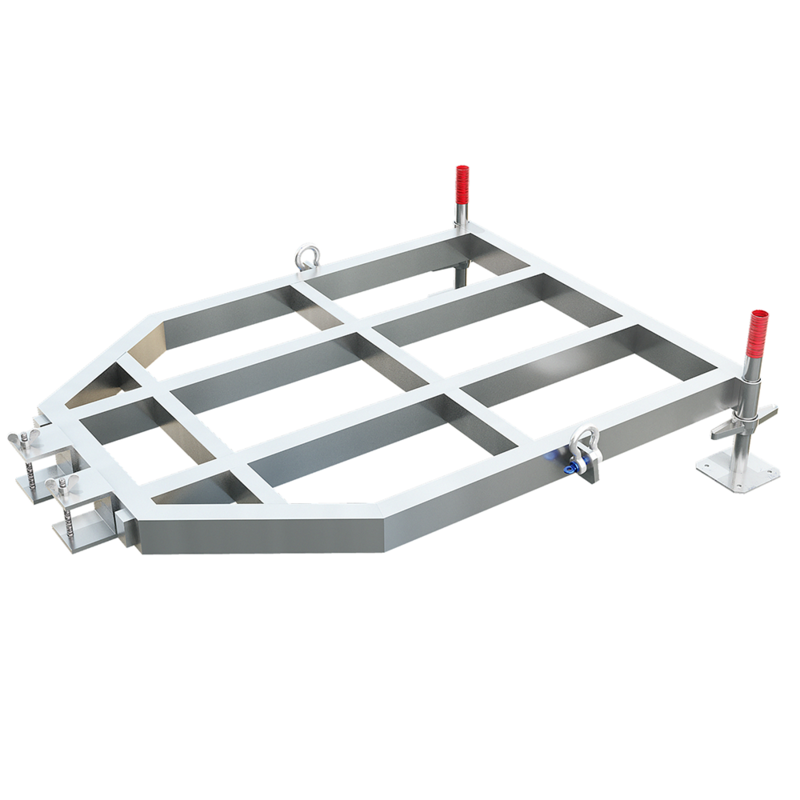

Ballast
4x 1400kg / 3808lbs at each end of the outrigger
Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized
Customization, i.e. truss configuration, alternative dimensions, on requirement
Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration
Transportation data
Self-weight
LED screen size
10x6 m
32.80x19.70 ft
8x6 m
26.30x19.70 ft
* Exact self-weight depends on configuration
2400 kg
5291 lbs
1858 kg
4093 lbs
Transport volume
* Packed in carton boxes and bubble foil
15 m3
530 ft3
12 m3
424 ft3
LSG3

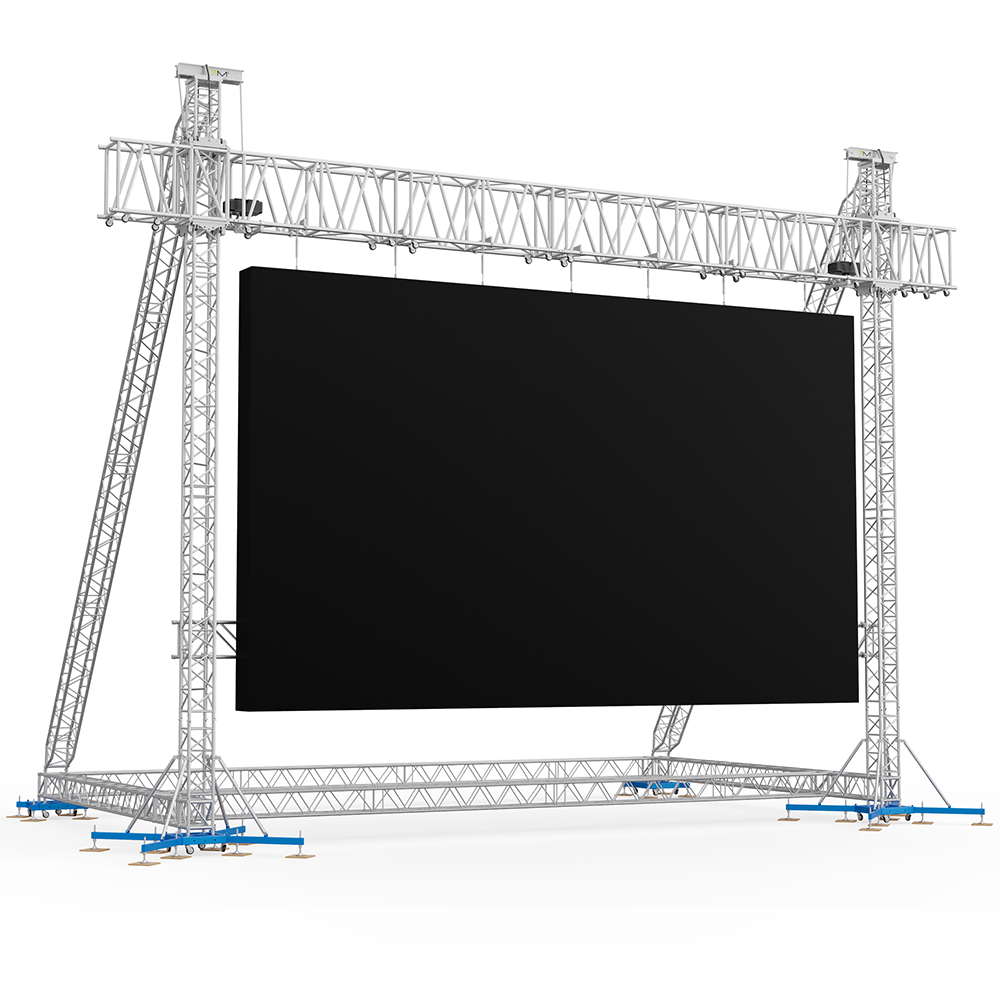

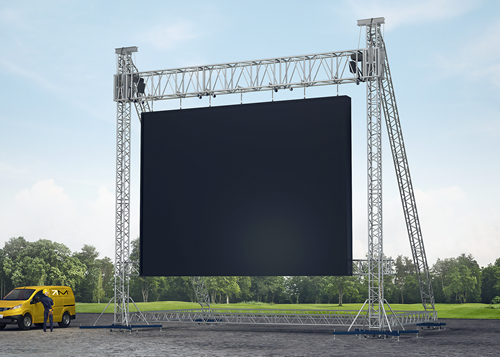

LSG3 LED Screen structures
Large format LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.
Available colors:
Code
LSG3 10x6m, LSG3 8x6m
Self Weight
5291 lbs
Contact Us
UK
+44 (0)1945 410700
USA
+1 800 411 0065
DE
+49 251 2024014-0
EU
+420 416 837 846
Click here to contact us
