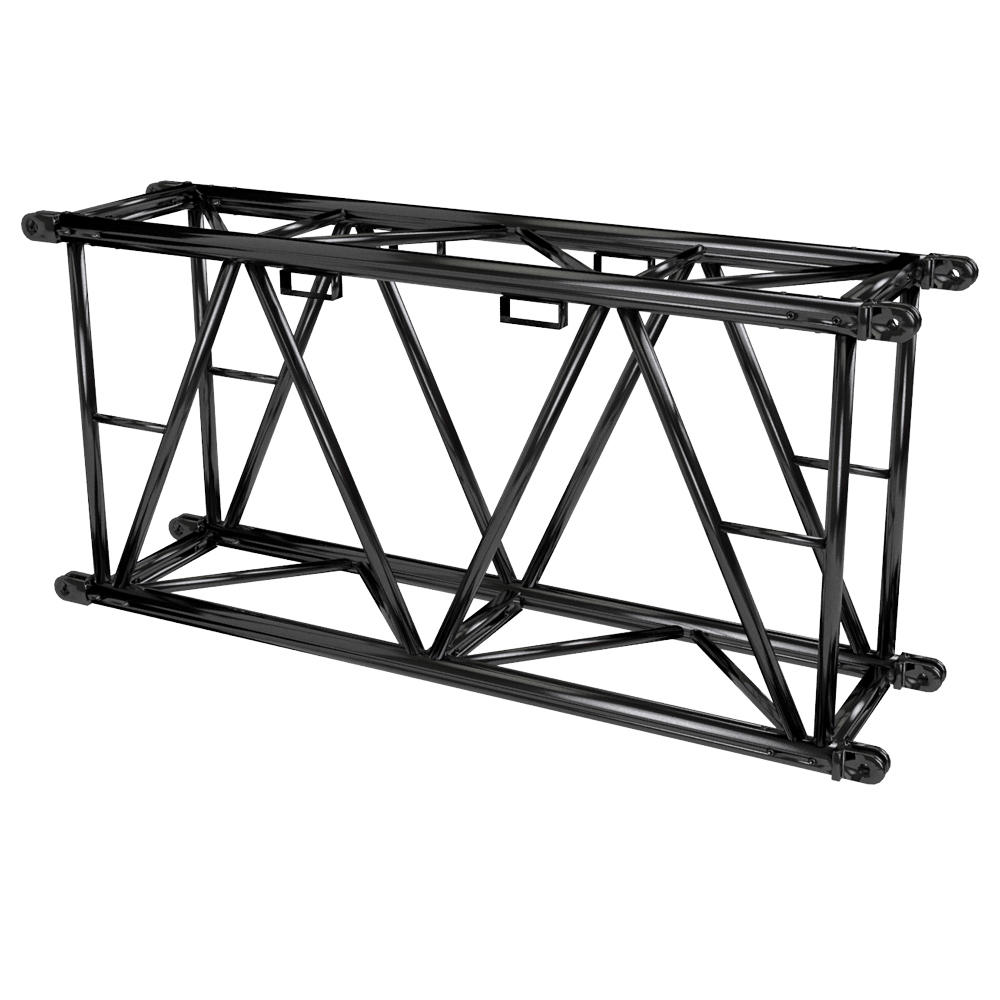

S-RTW 145 Rectangular Steel Truss

Rectangular steel truss for the most demanding applications
Code
S-RTW
Width
770 mm
Height
1450 mm
Main Tube
101.6 x 4 mm
Braces
60.3 x 4 mm / 48.3. x 3 mm
Self Weight
130 kg/m
S-RTW 145 Rectangular Steel Truss

Detailed information

Description

The 1450 x 770 mm MILOS 1450 Rectangular ultra-strength truss is made from special, ultra-high-strength steel alloys and handles 2.2 times more load than aluminium truss with similar dimensions at just double the weight.

It features connection points in the end frames and compression tubes for slinging relevant framework nodes. It also has additional tubes to assist with climbing up the truss. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.








Key benefits

  • Webbing pattern allows the insertion of cross trusses
  • Compression tubes at important rigging points
  • Tubes on the side to assist in climbing
  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses
  • End braces with 22mm holes for lateral connection
Loading chart
Span 49,2 ft 65,6 ft 82 ft 98,4 ft 114,8 ft 131,2 ft 147,6 ft 164,1 ft
Point load 66986 lbs 49110 lbs 38127 lbs 30590 lbs 25022 lbs 20685 lbs 17168 lbs 14227 lbs
Deflection 1,83 inch 3,32 inch 5,23 inch 7,61 inch 10,49 inch 13,96 inch 18,02 inch 22,7 inch
Two point load 46576 lbs 36832 lbs 28594 lbs 22943 lbs 18767 lbs 15514 lbs 12877 lbs 10670 lbs
Deflection 2,18 inch 4,17 inch 6,51 inch 9,40 inch 12,83 inch 16,85 inch 21,41 inch 26,56 inch
Three point load 31051 lbs 24555 lbs 19064 lbs 15296 lbs 12511 lbs 10344 lbs 8584 lbs 7113 lbs
Deflection 2,03 inch 3,86 inch 6,08 inch 8,81 inch 12,09 inch 15,91 inch 20,28 inch 25,31 inch
Four point load 23287 lbs 20462 lbs 15887 lbs 12745 lbs 10425 lbs 8619 lbs 7153 lbs 5927 lbs
Deflection 1,95 inch 4,10 inch 6,44 inch 9,28 inch 12,68 inch 16,65 inch 21,18 inch 26,33 inch
Distributed load 1892 lbs 1400 lbs 929 lbs 622 lbs 435 lbs 315 lbs 233 lbs 173 lbs
Deflection 1,60 inch 3,82 inch 6,40 inch 9,20 inch 12,6 inch 16,54 inch 21,06 inch 26,17 inch
