Products / Roofs / S-MR20 Steel roof (32x25)

Detailed information

  • UDL on the main roof 60 tons
  • PA in total 12 tons (4 tons per main PA, 2 tons per sidefill PA)
  • LED in side wing 500 kg/m
  • total load 80 tons

* See structural report for exact load positioning

  • Constructed from Ultra High Strength Steel
  • Dimensions 32x25 m (105x82 ft)
  • Unique locking system with 45t capacity per tower
  • Integrated steel base with interconnecting towers
  • Towers with integrated ladder for easy climbing
  • Base with multiple attachment points for steel wires
  • Canopy tensioning system for roof top canopies
  • Keder profiles for secure attachment of canopies
Technical specification
Dimensions   Stage size 32x25 m 104.98x82.02 ft
A Internal width 32.70 m 107.28 ft
B Overall external width 54.10 m 177.49 ft
C Depth 20.00 m 65.61 ft
D Overall external depth 26.30 m 86.28 ft
E Clearance 18.40 m 60.36 ft
F Overall height 23.10 m  75.78 ft

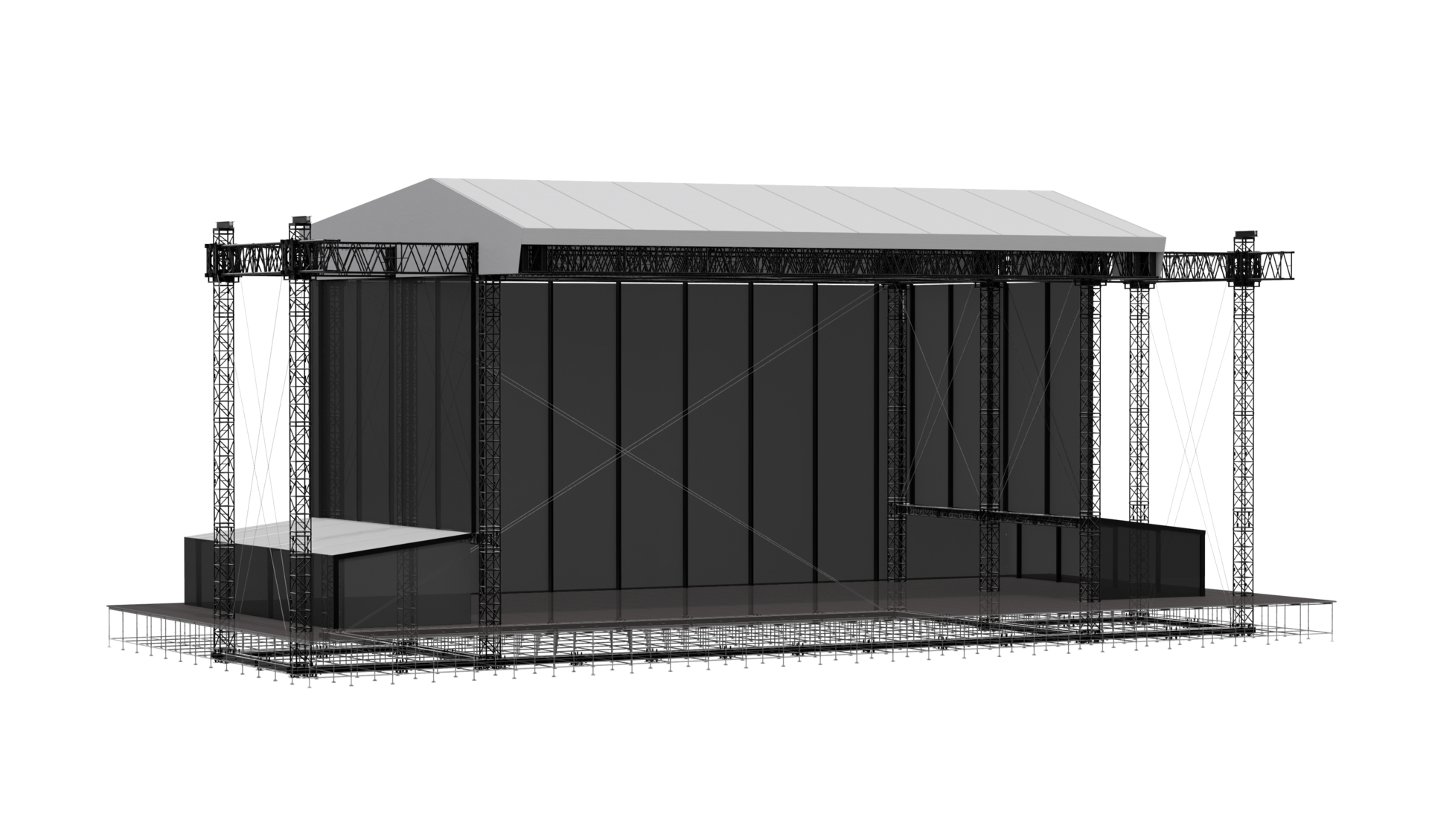

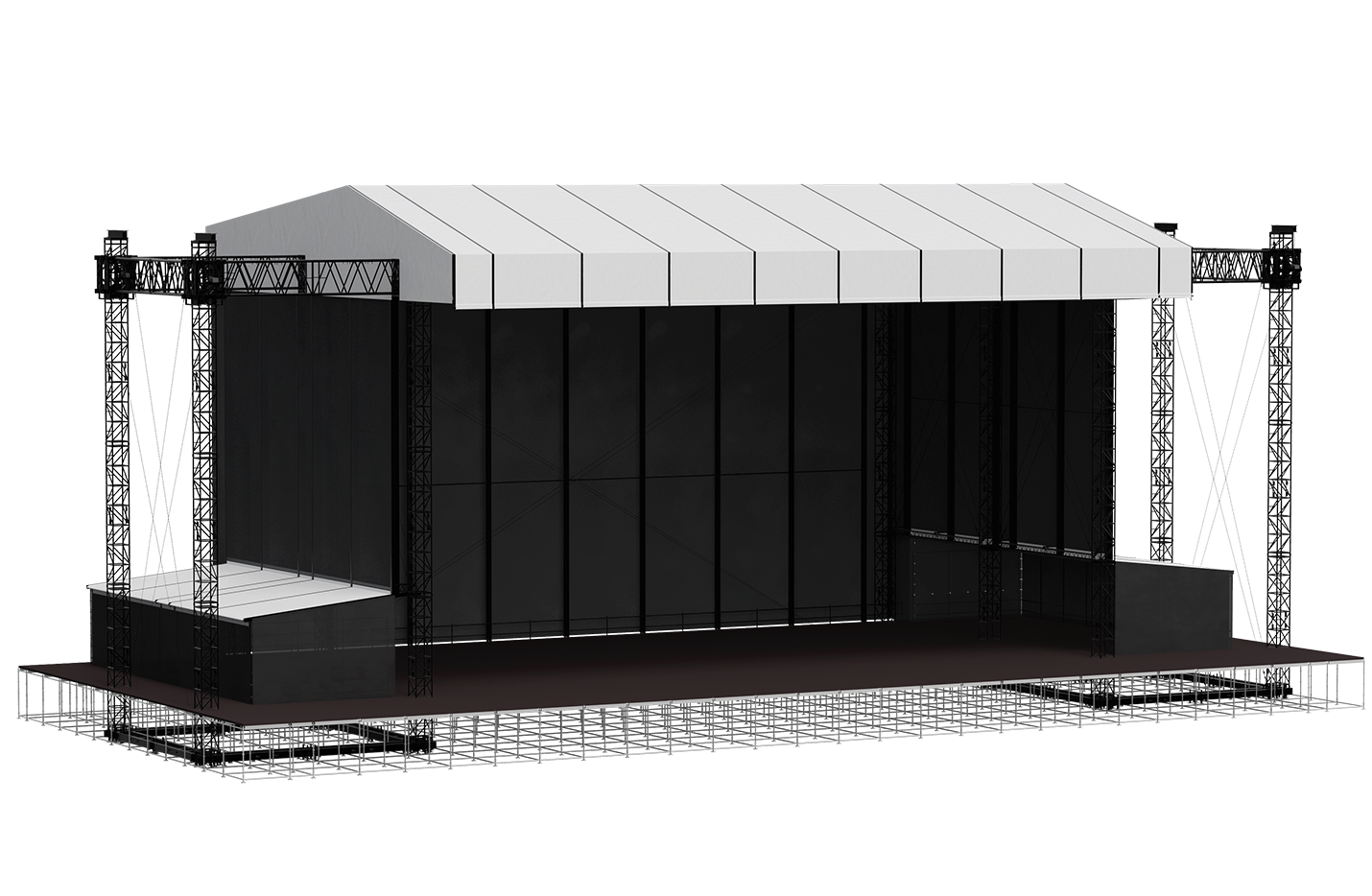

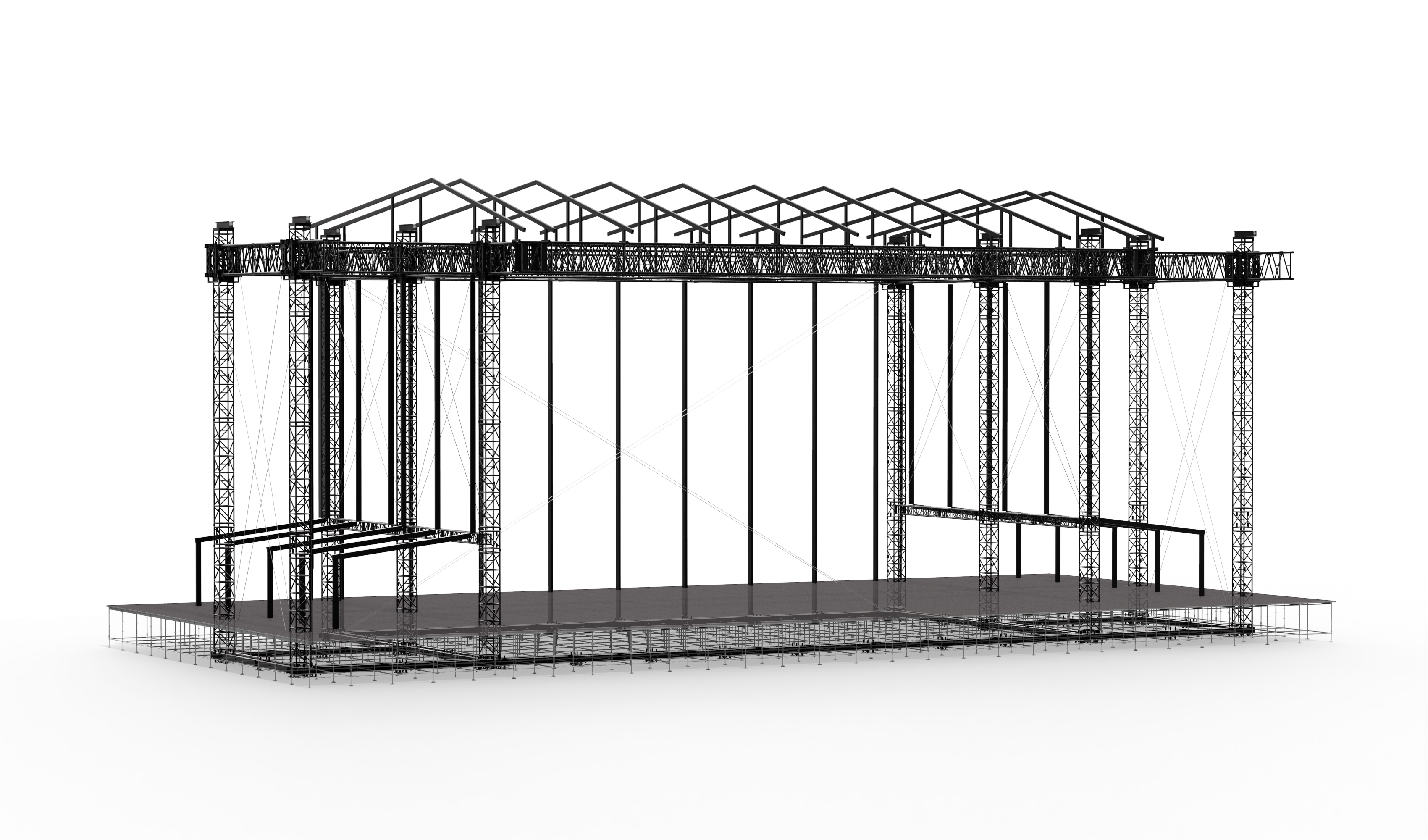

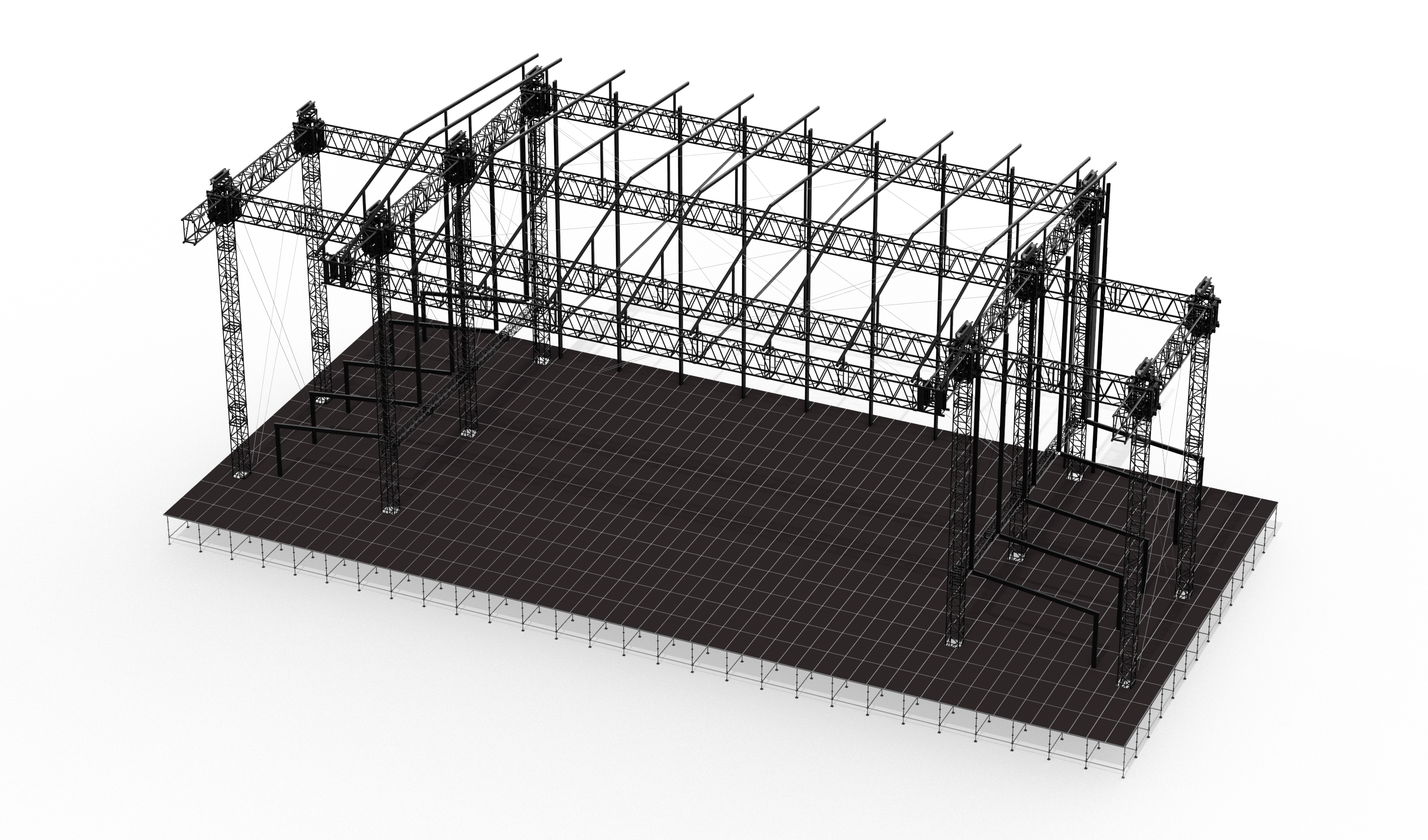

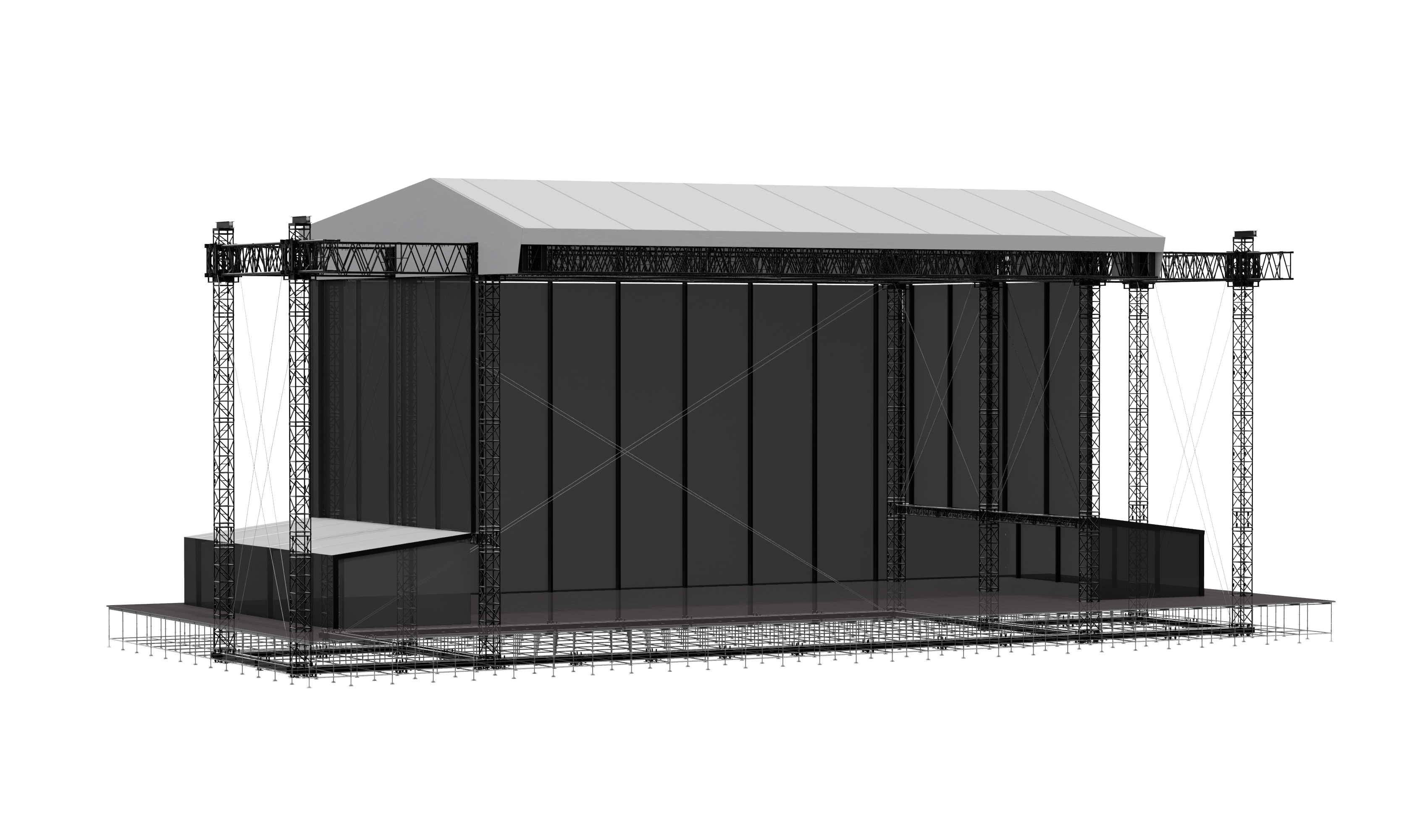

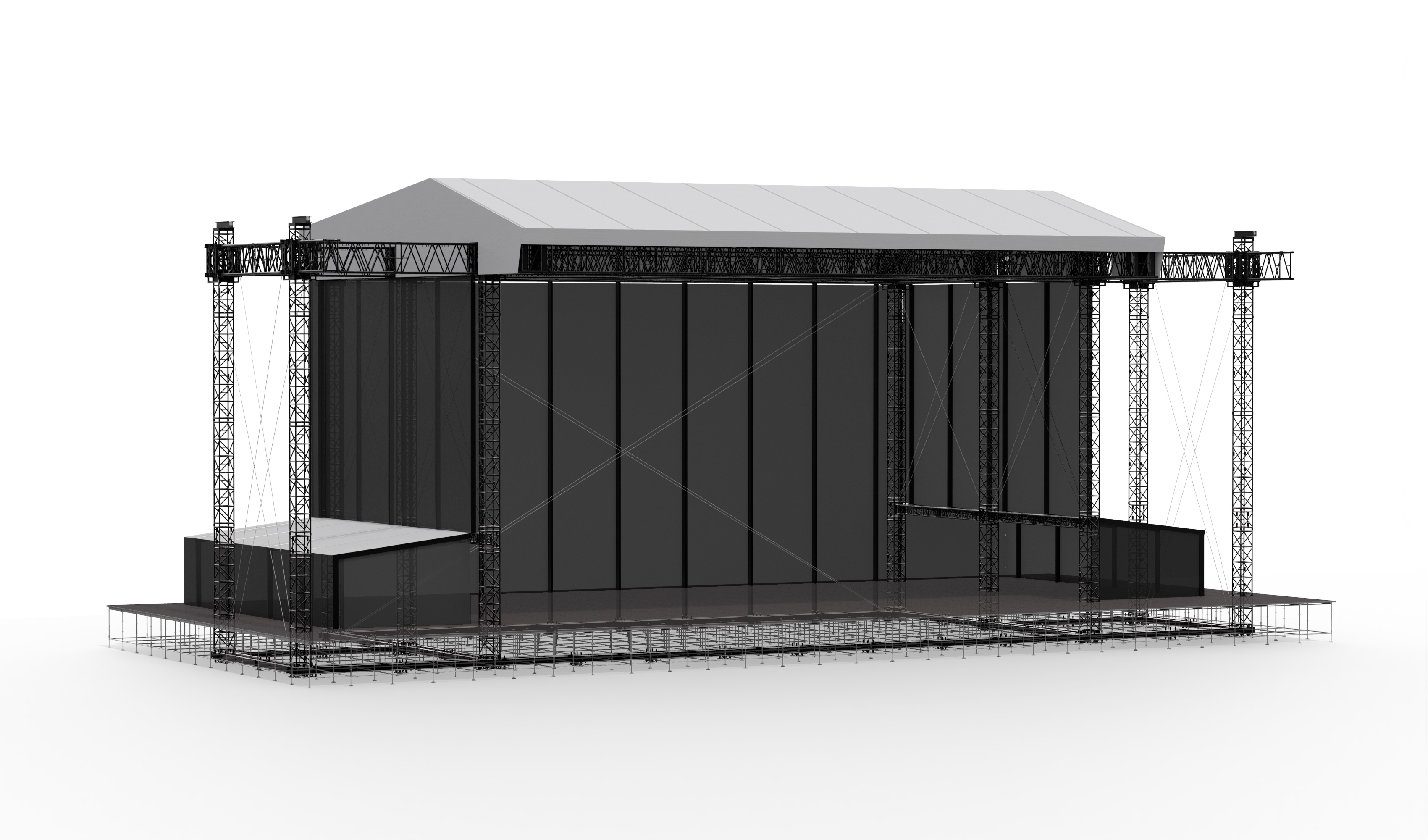

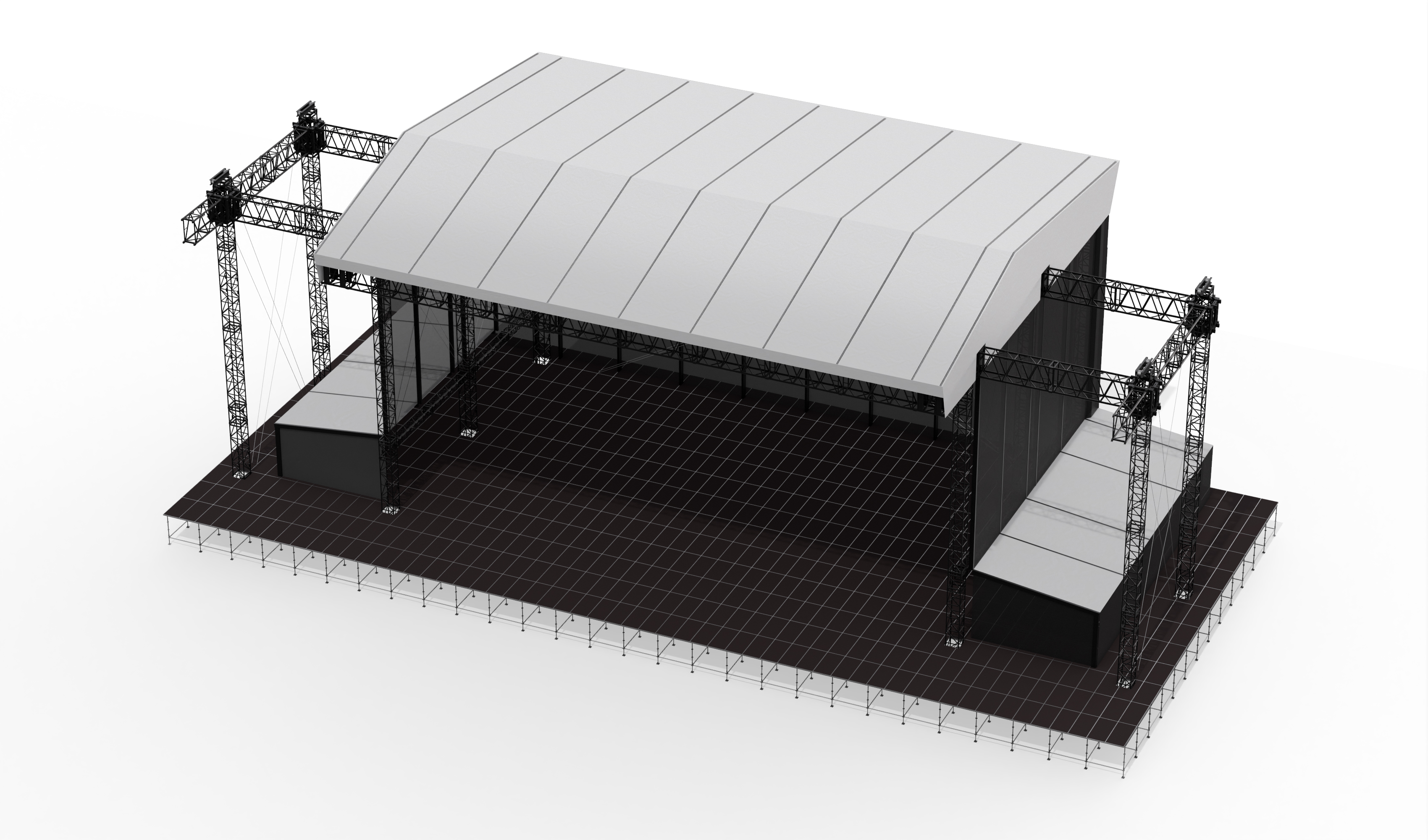

S-MR20 Steel Roof

The MILOS Steel Truss Roof achieves an amazing UDL 60 000kg which handles the most demanding needs of the world’s biggest shows.
Available colors:
S-MR20 32x25
S-MR20 Steel Roof
S-MR20 Steel Roof
