Products / Roofs / MR6 26x16 Pitched Roof

Detailed information

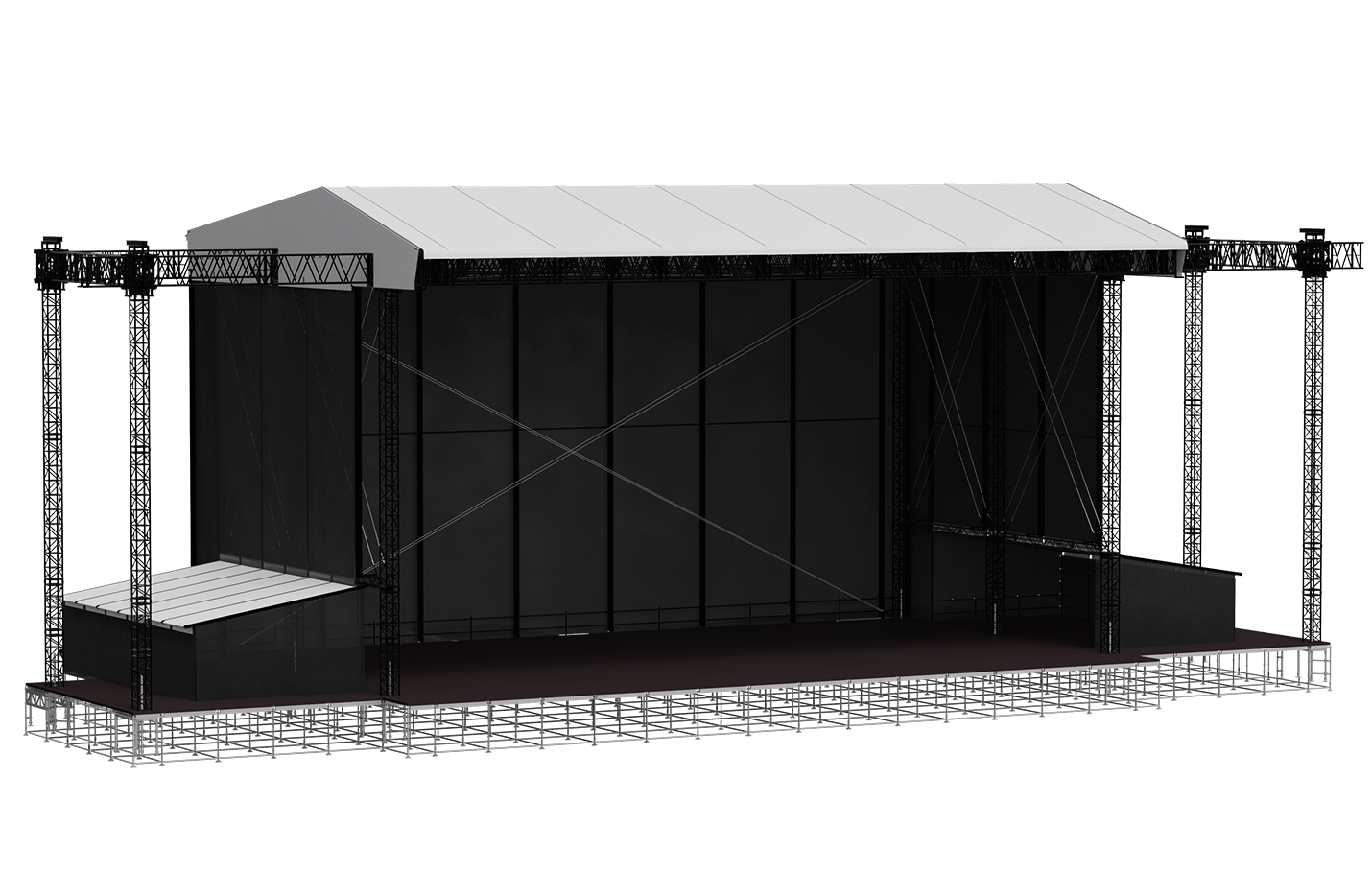

A large roof for your outdoor event? That's precisely what the MILOS MR6 large-scale pitched roof is.
An aluminium roof that offers the highest quality and safety. It is designed to meet all the requirements that large-scale events require.
Roof stands on six robust M520 QTPT Truss towers. The Grid of the roof is formed from Truss M1200 RTR, which, with its unique features and large SPAN up to 50m, can support even the largest outdoor events.
The height under the roof is almost 14m and provides plenty of room for lighting, effects and other required elements.
The roof boasts a load capacity of up to 32t so that it is possible to fit the desired equipment and effects without any limits.
  • MR6 large scale pitched roof structure
  • Stage size 520m²
  • MR6 large scale pitched roof structure
  • Stage size 520m²
  • Main grid made of 5 spans of M1200 RTR truss
  • Clearance height nearly 14 m
  • Side stage structures on request
  • PA / video wing options available on request
  • Rear wall made of keder profile 300x122 mm
  • Side wall made of keder profile 250x122 mm
  • Range of coloured PVC covers available
Technical specification
Dimensions   Stage size 26x16 m 85,3x52.49 ft
A Internal width 26.47 m 89.84 ft
B Overall external width 40.56 m 133.07 ft
C Depth 17.70 m 58.07 ft
D Overall external depth 20.70 m 67.91 ft
E Clearance 13.30 m 43.63 ft
F Overall height 16.70 m 54.79 ft

MR6 Pitched Roof (26x16)

Available colors:
MR6 Pitched Roof (26x16)
MR6 Pitched Roof (26x16)
