Products / Roofs / MR2K Keder (49,21x39,37 ft)
Products

Detailed information

Description

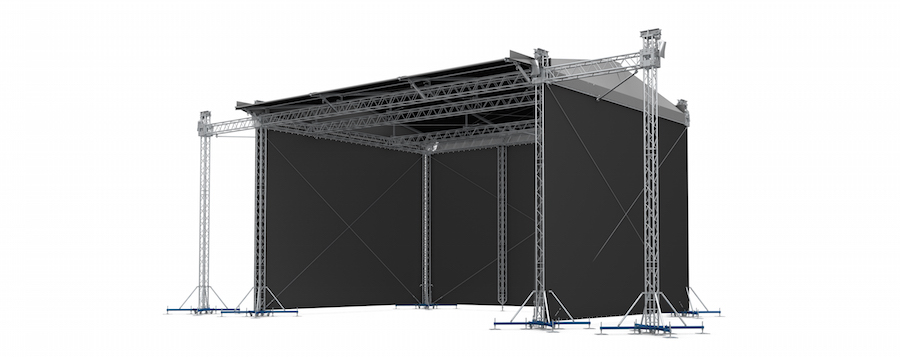

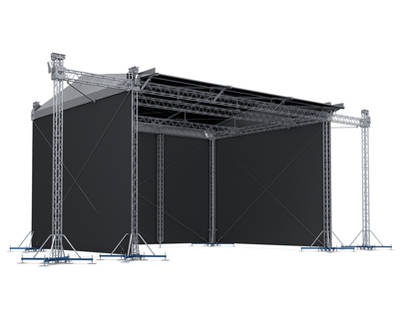

New Milos MR2K Roof with low profile Keder canopy and versatile horizontal truss grid layout for maximum event rigging solutions.

Complies with latest EuroCode specifications.

Key benefits

  • Roof TOP frame work can be adapted additionally into existing ground support inventory
  • Keder Roof structure for temporary events

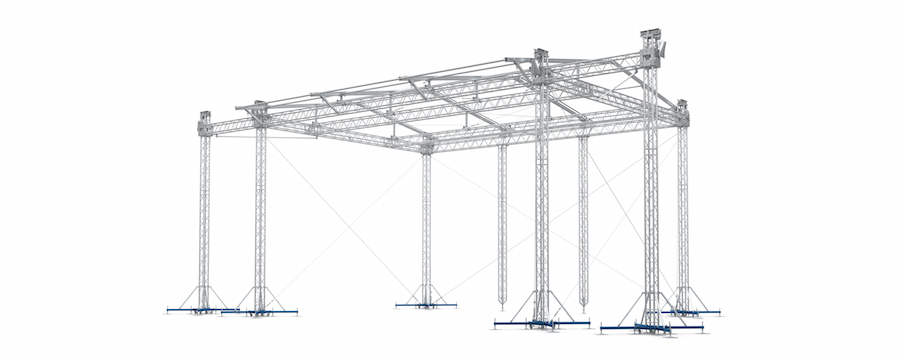

  • MT1 Towers with horizontal M390 grid for maximum production rigging
  • MT2 Tower with horizontal M520 grid for higher loading also available

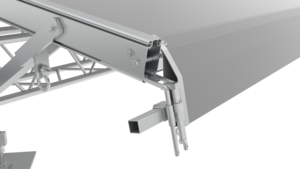

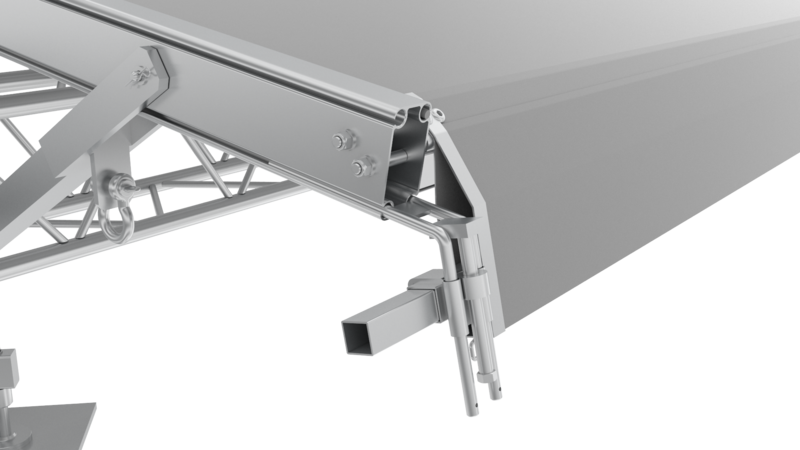

  • Low profile keder roof construction for ease of installation
  • Additional rear towers for LED support off back stage beams
  • MT1 Towers with M390 roof and lightweight canopy support structure
  • Operate with manual chain block or electric chain hoist (bracket required)

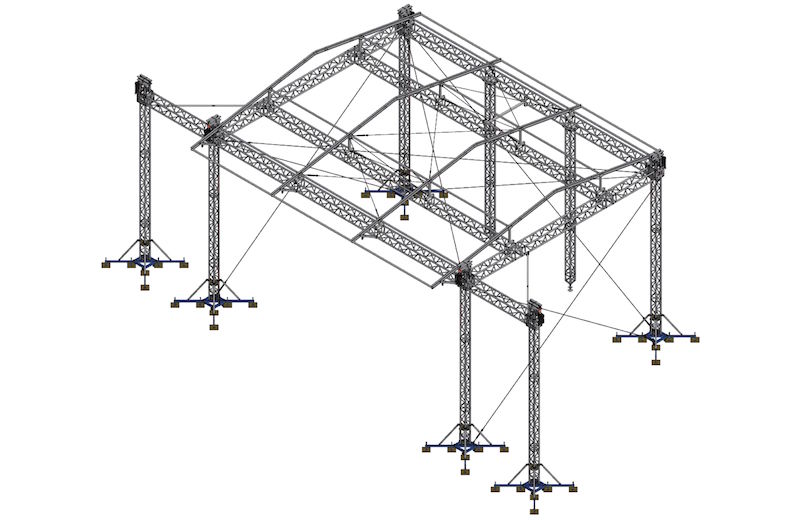

  • Supplied complete with internal wind bracing wires & connection accessories
  • Full structural calculation report & build manual available
  • PVC roof colour and side walls ( mesh or solid ) options

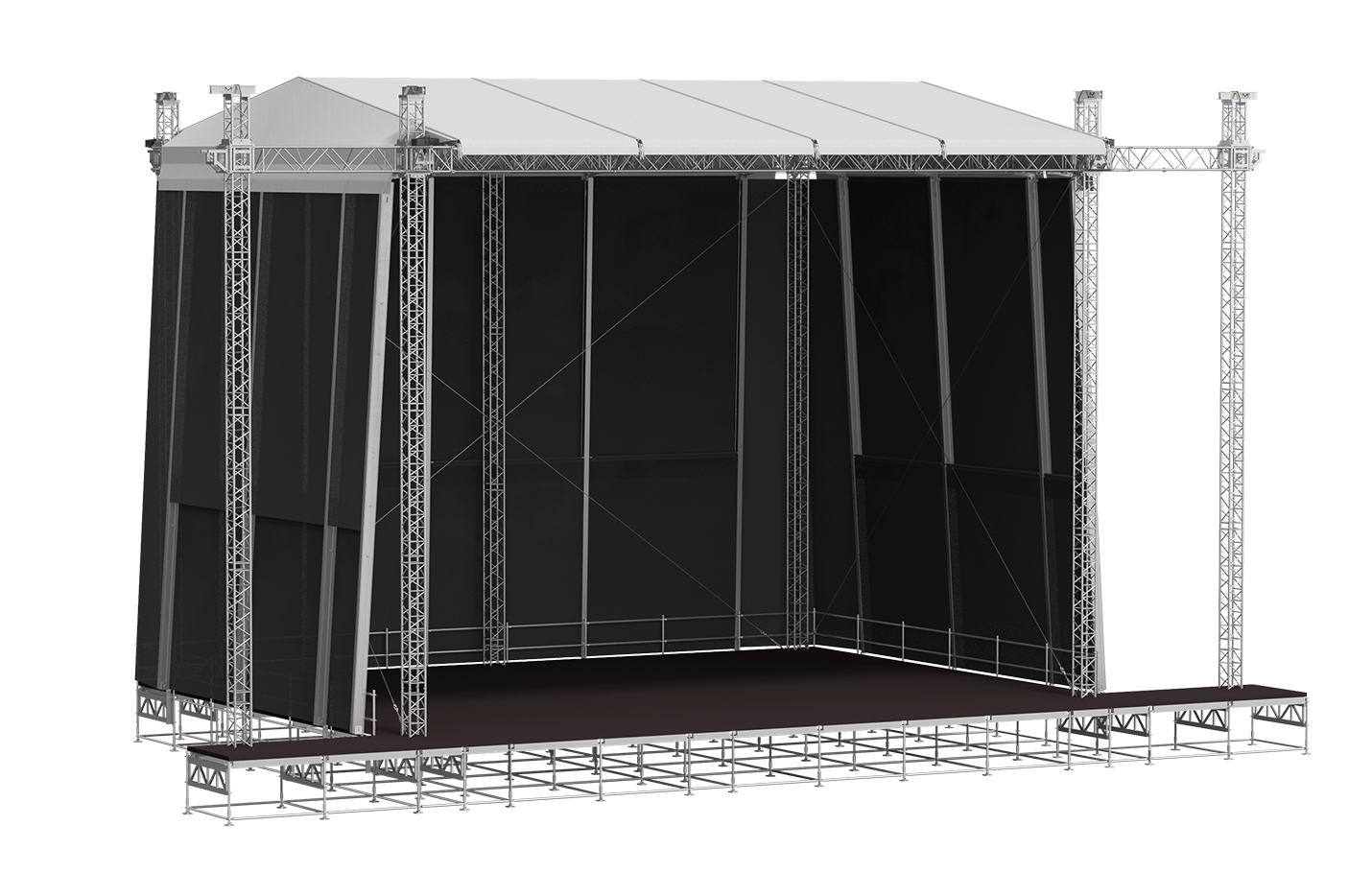

  • Integrated tower base / stage components available
  • PA wing options available on request
  •  EXE hoists recommended

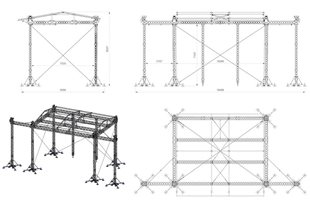

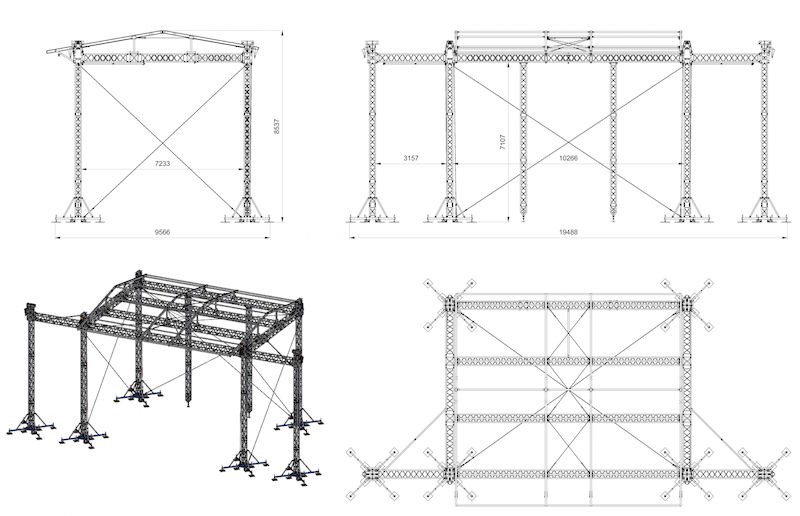

Technical specification

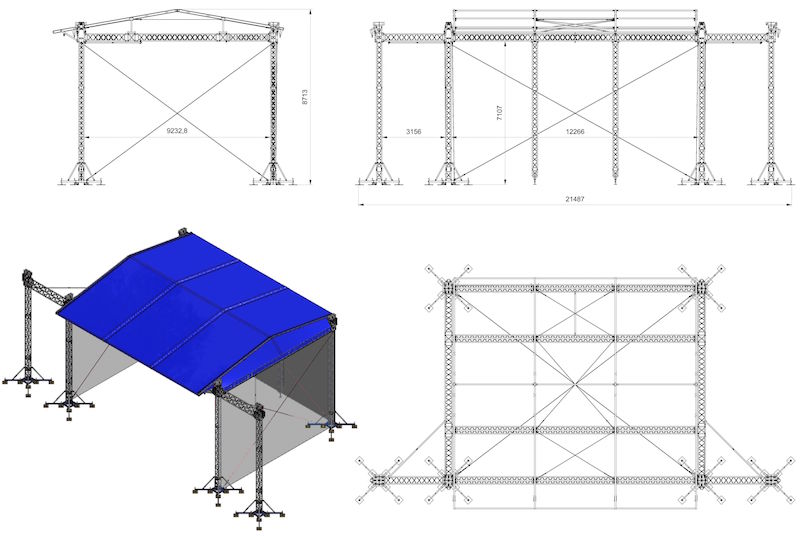

Dimensions   Stage size 15x12 m 49.21x39.37 ft 12x10 m 39,37x32,81 ft 10x8 m 32,81x26,30 ft
A Internal width 15,31 m 50.23 ft 12,26 m 40.22 ft 10,26 m 33.66 ft
B Overall external width 17,95 m 58.89 ft 14,60 m 47.90 ft 12,60 m 41.34 ft
C Internal depth 11,73 m 38.48 ft 9,23 m 30.28 ft 7,23 m 23.72 ft
D Overall external depth 14,41 m 47.28 ft 11,57 m 37.96 ft 9,57 m 31.40 ft
E Clearance 10,51 m 34.48 ft 7,10 m 23.29 ft 7,10 m 23.29 ft
F Overall height 12,19 m 39.99 ft 8,70 m 28.54 ft 8,53 m 27.99 ft
G PA wing - internal width 3,15 m 10.33 ft 3,15 m 10.33 ft 3,15 m 10.33 ft
G PA wing -Overall external width 4,26 m 13.98 ft 3,44 m 11.29 ft 3,44 m 11.29 ft

Loading capacity
Loading capacity   Stage size 15x12 m 49.21x39.37 ft 12x10 m 39,37x32,81 ft 10x8 m 16.4 x 16.4 ft
Main grid Uniformly distributed (UDL) 6500 Kg 14330 lbs 3040 Kg 6696 lbs 3040 Kg 6696 lbs
  Point loads 8700 Kg 19180 lbs 7700 Kg 16 960 lbs 7700 Kg 16 960 lbs
Cantilever 2x Point loads on outer
beams
2x 500 Kg 2x 1101 lbs 2x 500Kg 2x 1101 lbs 2x 500 Kg 2x 1101 lbs
PA wing Central Point load (CPL) 1500 Kg 3304lbs 1500 Kg 3304 lbs 1500 Kg 3304 lbs

Operational specifications
Design standarts DIN EN 13814 (2012)
DIN EN 1991 / Eurocode 1
DIN EN 1999 / Eurocode 9
DIN EN 1993 / Eurocode 3
Fairground and amusement park machinery and structures
Actions on structures
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management Out of service
In service
28,8m/s - 103km/h-64mph (Max. gust windspeed)
17,8m/s - 64km/h - 40mph (Max. gust windspeed)
* Calculations based on 100% closed side canopies
* Side canopies to be removed above this wind speed if not considered

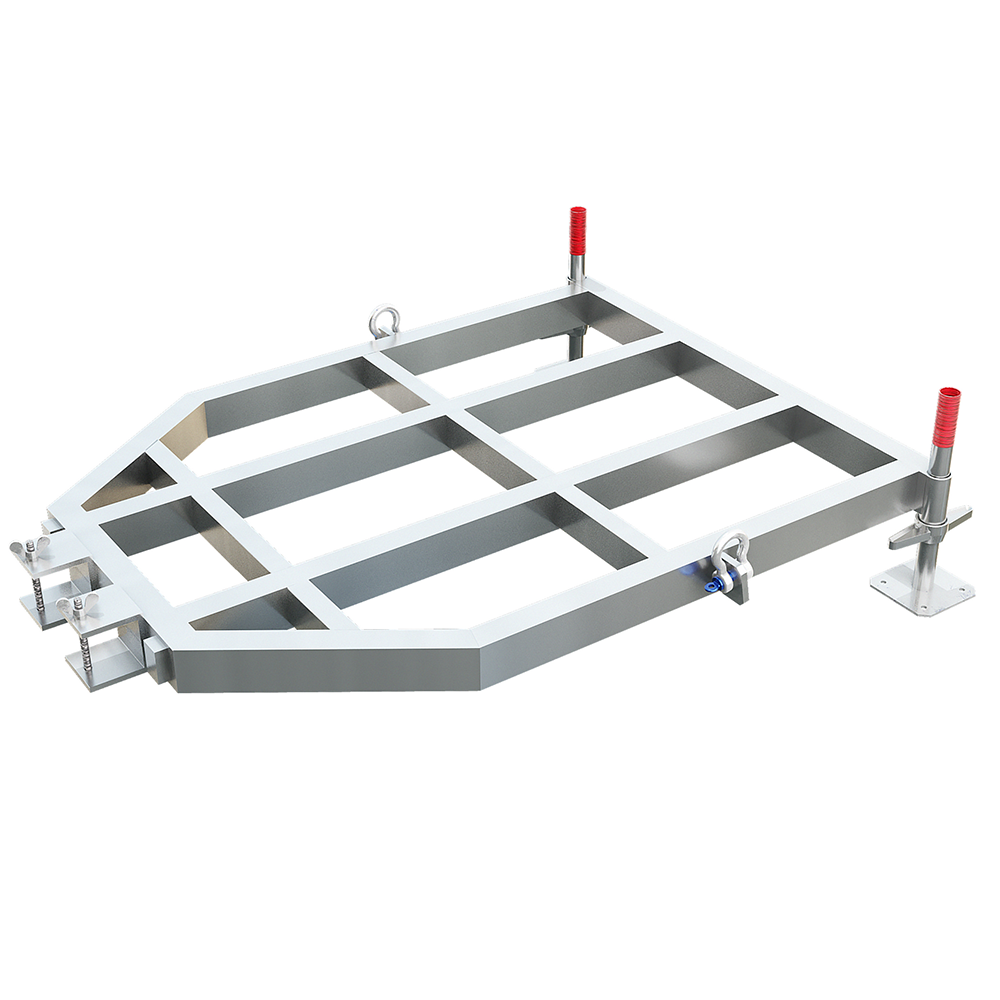

Ballast This can vary per tower from 1000kg / 2203lbs up to 8000kg/17637lbs and depends on:
• If tower bases are interconnected or free-standing
• Layout of canopies
• Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions)
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls B1 fire retardant canopy on request, in kedders, configurable for various sizes
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customized Customisation (i.e. truss configuration, alternative dimensions) on requirement

Transportation data
Self-weight Stage size 15x12 m 49.21x39.37 ft 12x10 m 39,37x32,81 ft 10x8 m 32,81x26,30 ft
* Exact self-weight depends on configuration 5000 kg 11023 lbs 3010 kg 6630 lbs 2785 kg 6134 lbs
Transport volume * Packed in carton boxes andbubble foil 50 m3 1765 ft3 30 m3 1060 ft3 25 m3 882 ft3

MR2K Kedder (49,21x39,37 ft)

Low profile Keder canopy with horizontal truss grid layout for versatile rigging solutions.
Code
MR2K 15x12m, MR2K 12x10m, MR2K 10x8m
Max. Stage Dimensions
49.21x39.37 ft
Max. Clearance
39.99 ft
Max. SWL
6702 lbs
Wind Rating
40/64 mph (in/out of service)
