Products / Roofs / MR2 Saddle (32.80x26.25 ft & 39,4x32,8 ft)

Detailed information

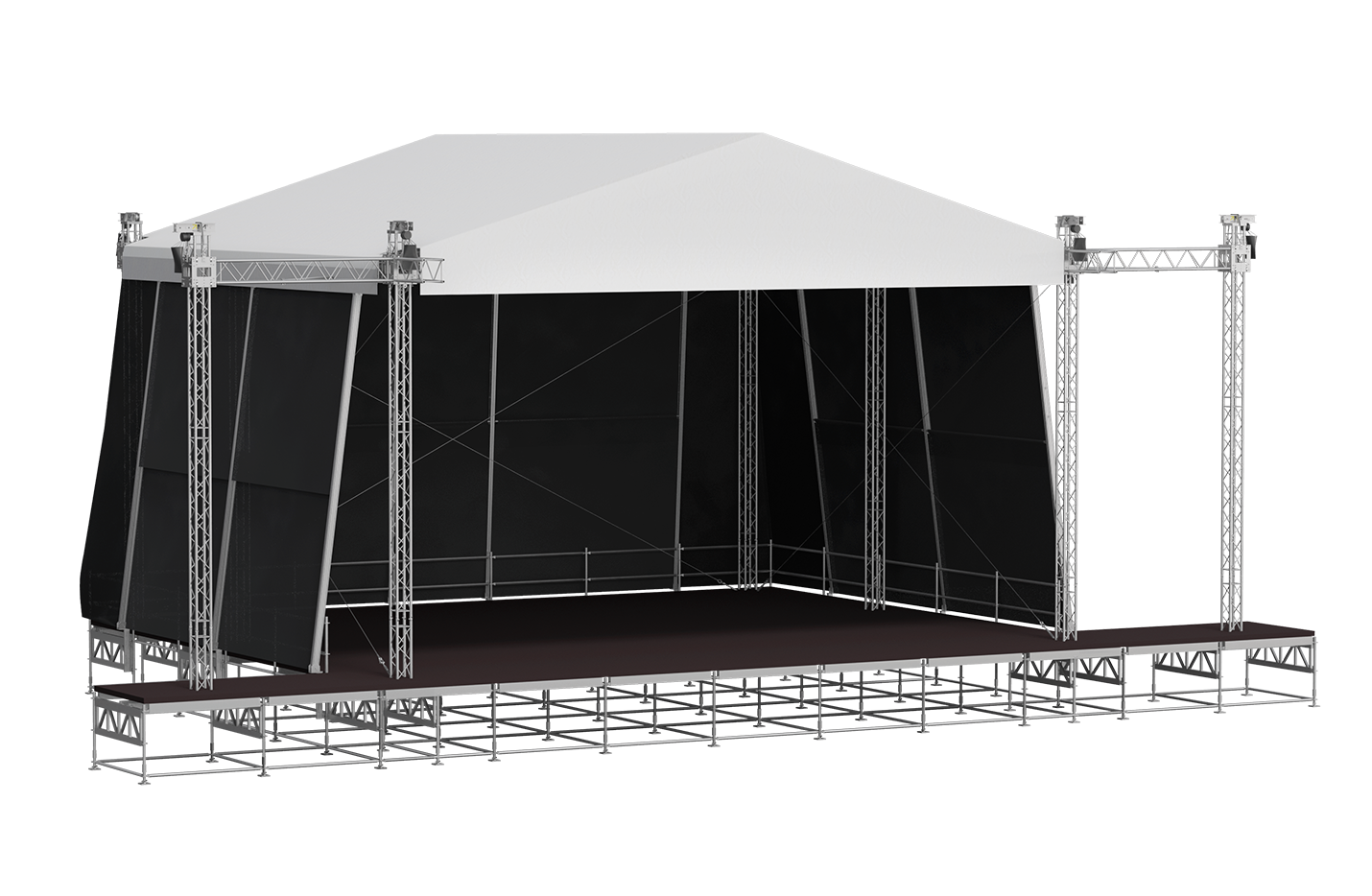

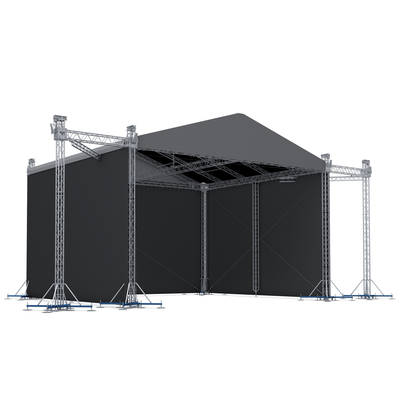

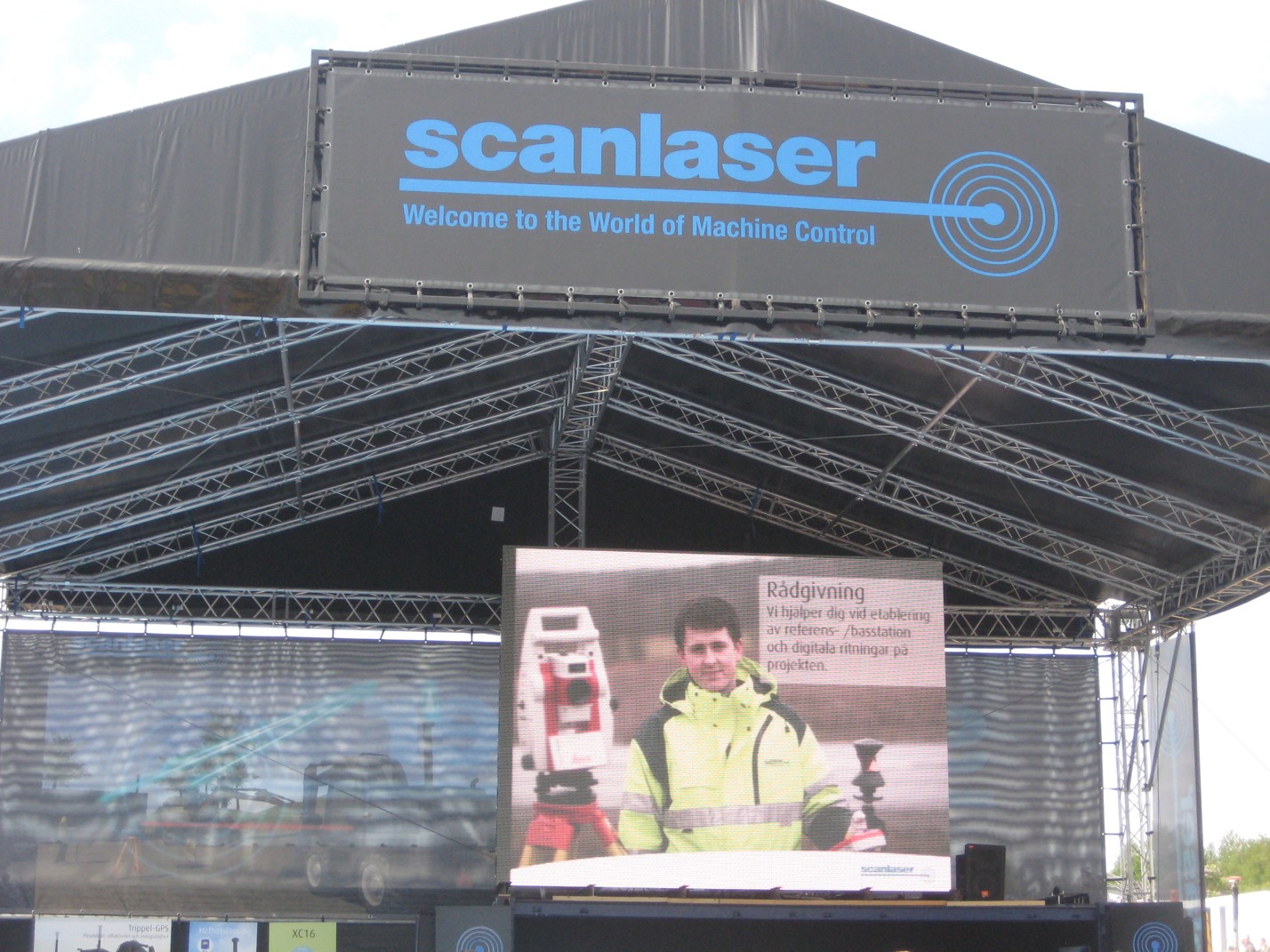

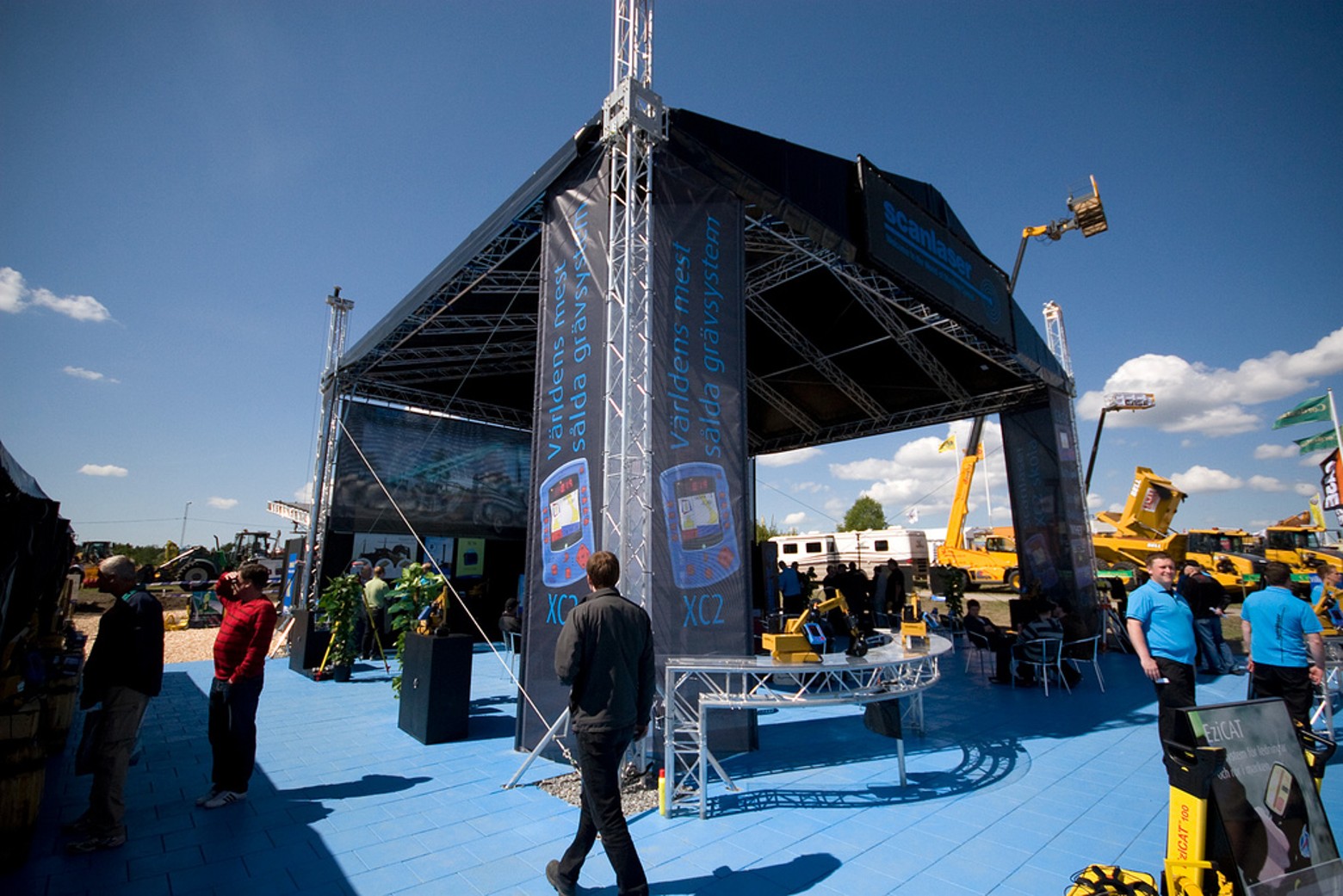

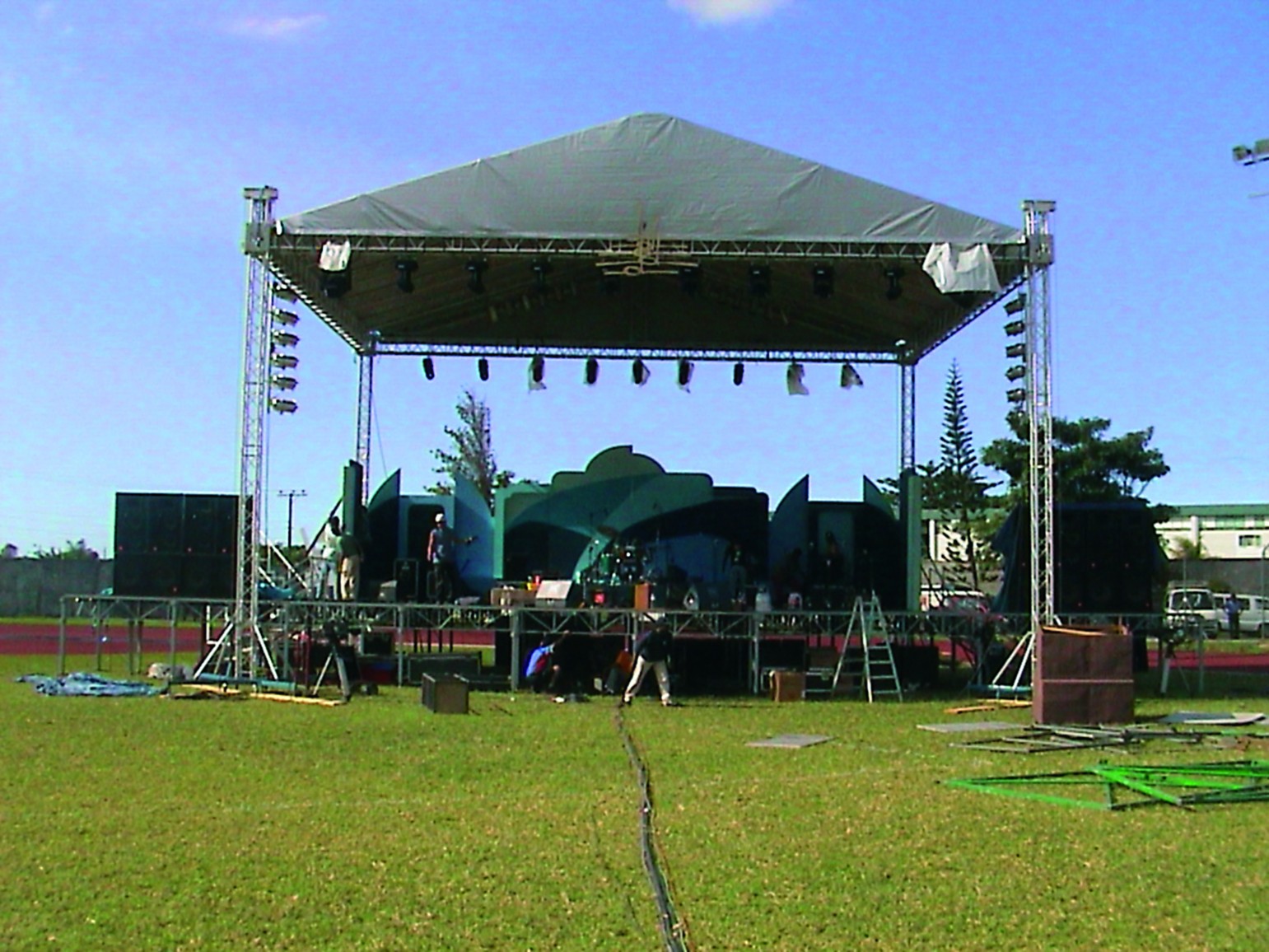

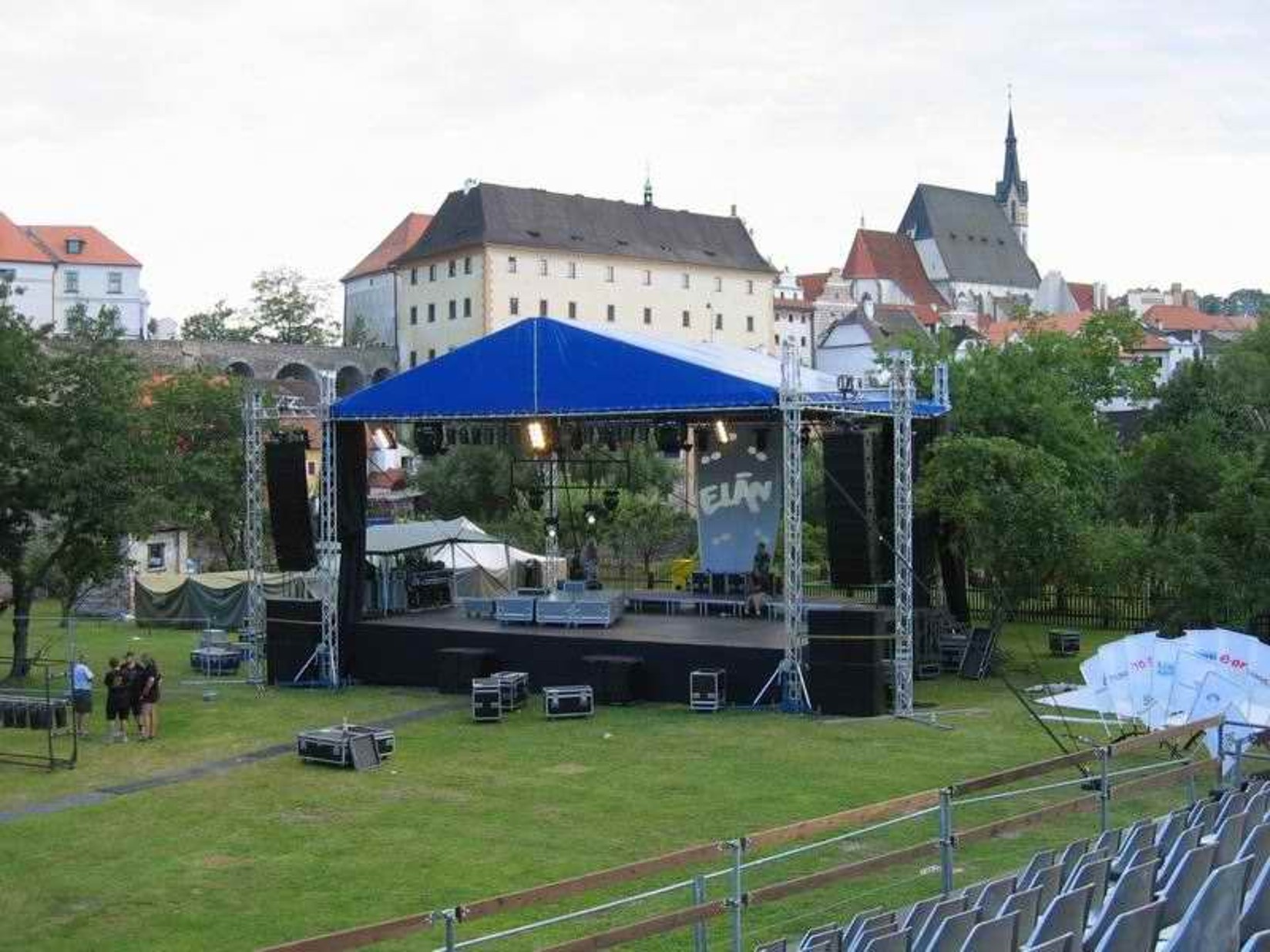

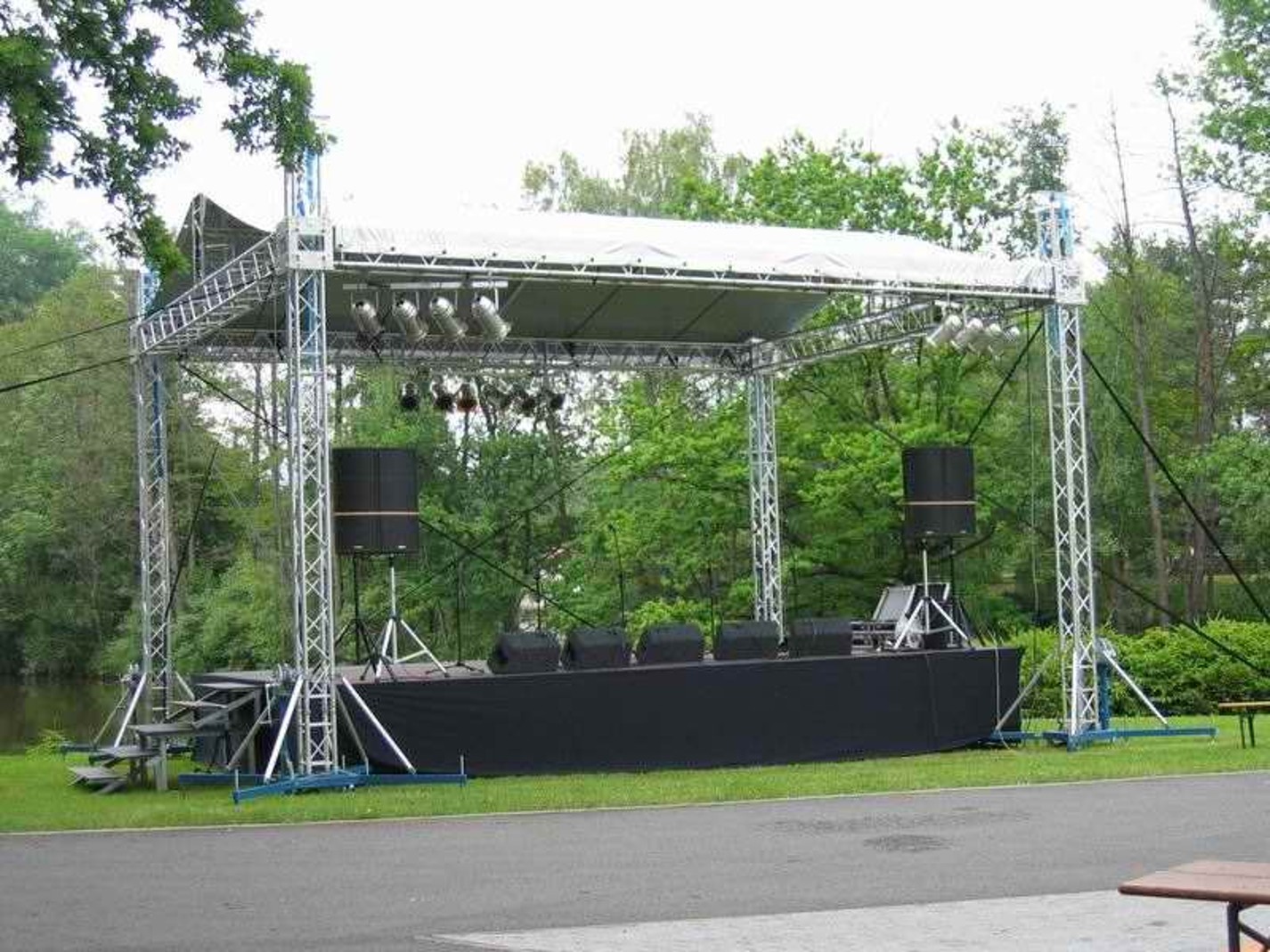

The MR2 roof is a suitable choice for concerts, exhibitions and a large variety of outdoor events. The sloping frame construction gives the roof a dynamic look while allowing water to easily drain from the canopy. Contact us today for more information or to request a quote.

Key benefits

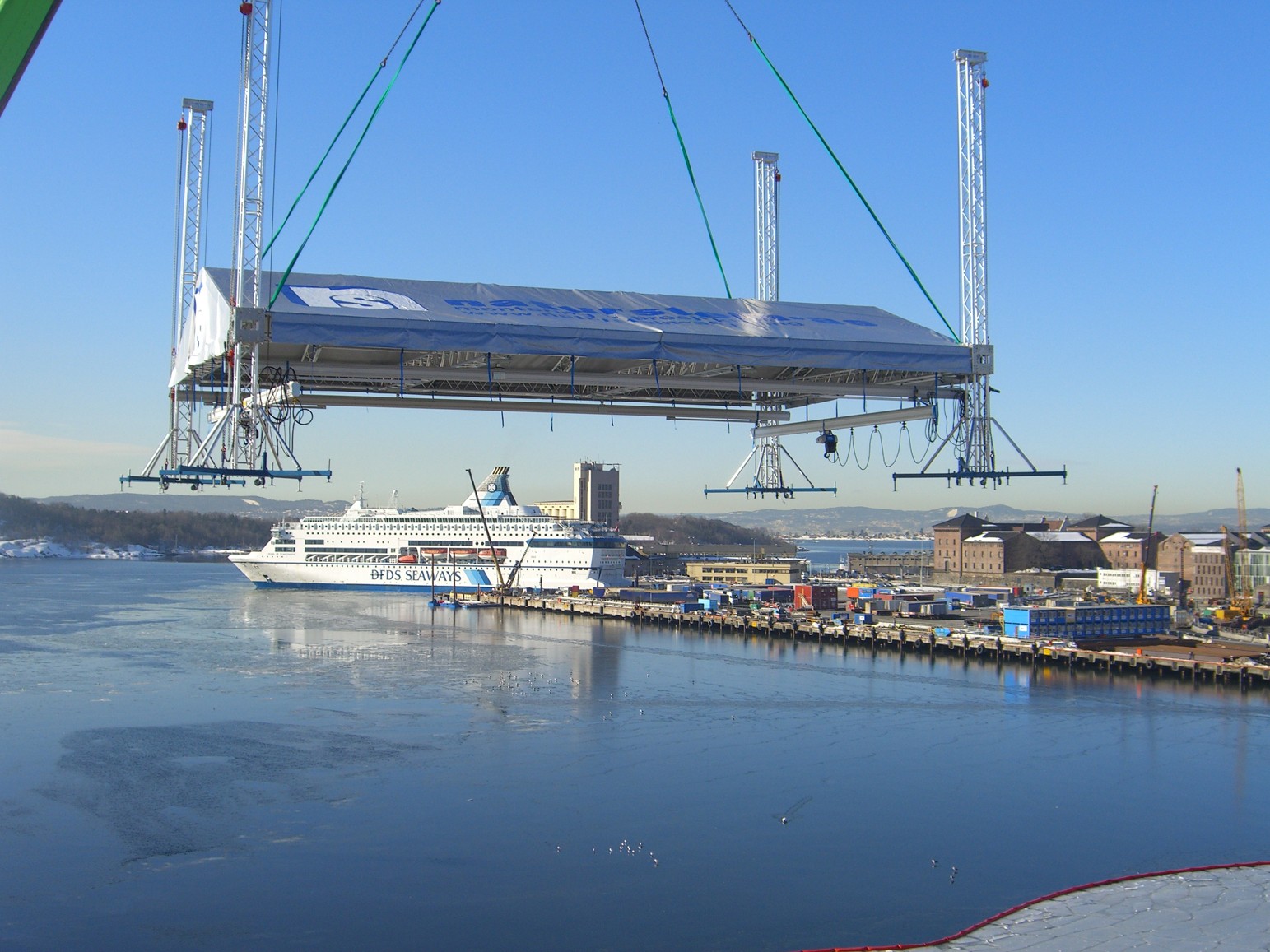

  • MR2 Saddle Roof structure for temporary events
  • MT1 self-climbing towers  32.81x26.25 ft, 39.37x32.81 ft options available
  • Fast connection for quick, simple and secure assembly
  • Operate with manual chain block or electric chain hoist (bracket required)
  • Supplied complete with internal wind bracing wires & connection accessories
  • Full structural calculation report & build manual available
  • PVC roof colour and side walls options
  • Integrated tower base / stage components available
  • PA wing options available on request
  •  EXE hoists recommended
Technical specification
Dimensions   Stage size 12x10 m 39,40x32,80 ft 10x8 m 32,80x26,30 ft 10x6 m 32,80x19,70 ft
A Internal width 12,30 m 40.35 ft 10,42 m 34.19 ft 10,42 m 34.19 ft
B Overall external width 14,64 m 48.03 ft 12,74 m 41.80 ft 12,74 m 41.80 ft
C Internal depth 10,60 m 34.78 ft 8,65 m 28.38 ft 6,65 m 21.82 ft
D Overall external depth 12,99 m 42.62 ft 10,97 m 35.99 ft 10,97 m 35.99 ft
E Clearance 7,12 m 23.36 ft 7,12  m 23.36 ft 7,12 m 23.36 ft
F Overall height 9,43 m 30.94 ft 9,14 m 29.99 ft 9,14 m 29.99 ft
G PA wing - internal width 3,15 m 10.33 ft 3,15 m 10.33 ft 3,15 m 10.33 ft
H PA wing -Overall external width 3,44 m 11.29 ft 3,44 m 11.29 ft 3,44 m 11.29 ft
Loading capacity
Loading capacity   Stage size 12x10 m 39,40x32,80 ft 10x8 m 32,80x26,30 ft 10x6 m 32,80x19,70 ft
Main grid Uniformly distributed (UDL) 3480 Kg 7665 lbs 2160 Kg 4758 lbs 1920Kg 4229 lbs
  Point loads 8x400kg + UDL total 4600 Kg 10 132 lbs 4140 Kg 9919 lbs 3980 Kg 8767 lbs
PA wing Central Point load (CPL) 1500 Kg 3304 lbs - Kg - lbs - Kg - lbs
Cantilever Point load (CPL) - Kg - lbs 150 Kg 330.4 lbs 150 Kg 330 lbs
* See structural report for exact load positioning
Operational specifications
Design standarts DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800
Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management Out of service
In service
29,6m/s - 106km/h-66mph (Max. gust windspeed)
17,8m/s - 64km/h - 40mph (Max. gust windspeed)
* Calculations based on 100% closed side canopies
* Side canopies to be removed above this wind speed if not considered

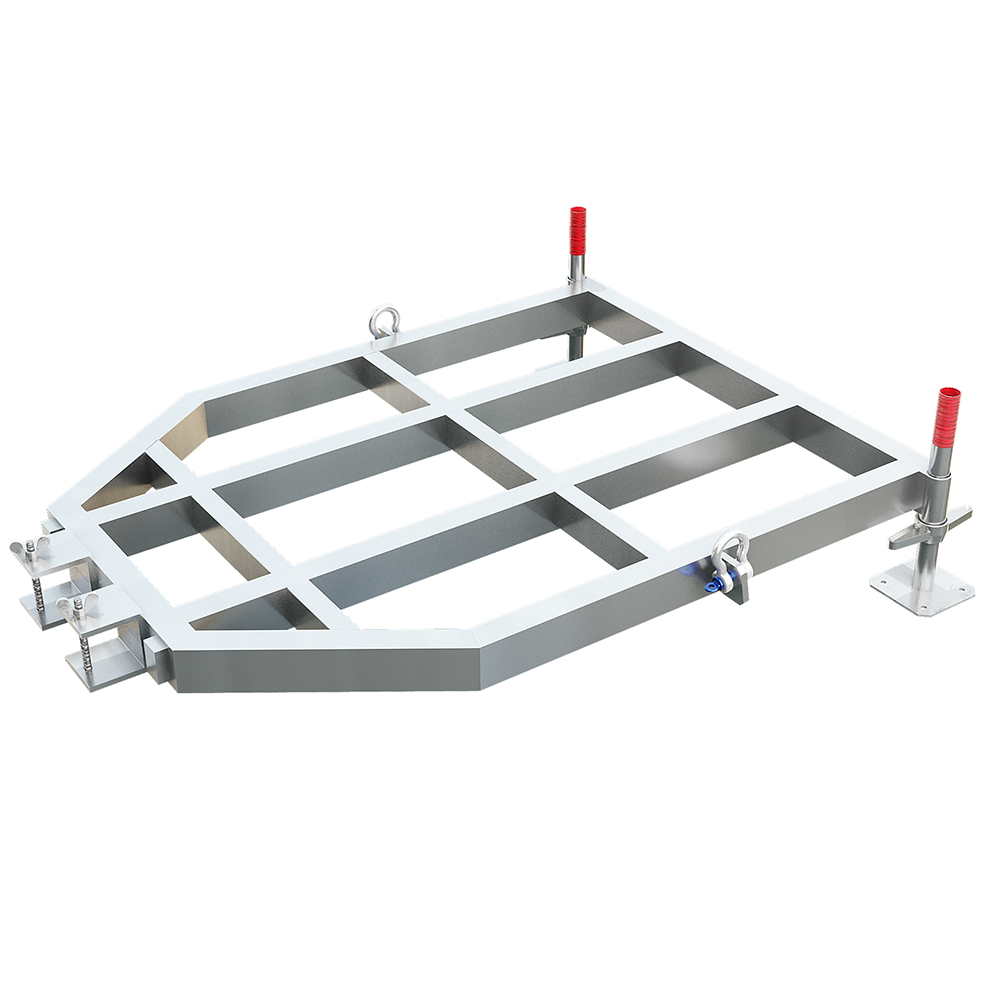

Ballast This can vary per tower from 200kg / 440lbs up to 5300kg / 11674lbs and depends on:
• If tower bases are interconnected or free-standing
• Layout of canopies
• Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions)
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls B1 fire retardant canopy on request, single piece format or kedder profiles
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customized Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on requirement
Transportation data
Self-weight Stage size 12x10 m 39,40x32,80 ft 10x8 m 32,80x26,30 ft 10x6 m 32,80x19,70 ft
* Exact self-weight depends on configuration 2100 kg 4626 lbs 1950 kg 4295 lbs 1785 kg 3932 lbs
Transport volume * Packed in carton boxes and bubble foil 30 m3 1060 ft3 25 m3 882 ft3 20 m3 706 ft3


MR2 Saddle (32.80x26.25 ft & 39,4x32,8 ft)

A dynamic, sloping frame saddle roof that sheds water and features quick & easy assembly. It’s the perfect choice for concerts, exhibitions and other outdoor events.
MR2 12x10m, MR2 10x8m,
Max. Stage Dimensions
39.40x32.80 ft
Max. Clearance
30.94 ft
Max. SWL
7665 lbs
Wind Rating
40/66 mph (in/out of service)
