Products / Roofs / MR0 No Guy Wires Saddle Roof 6x5 m
Products

Detailed information

Description

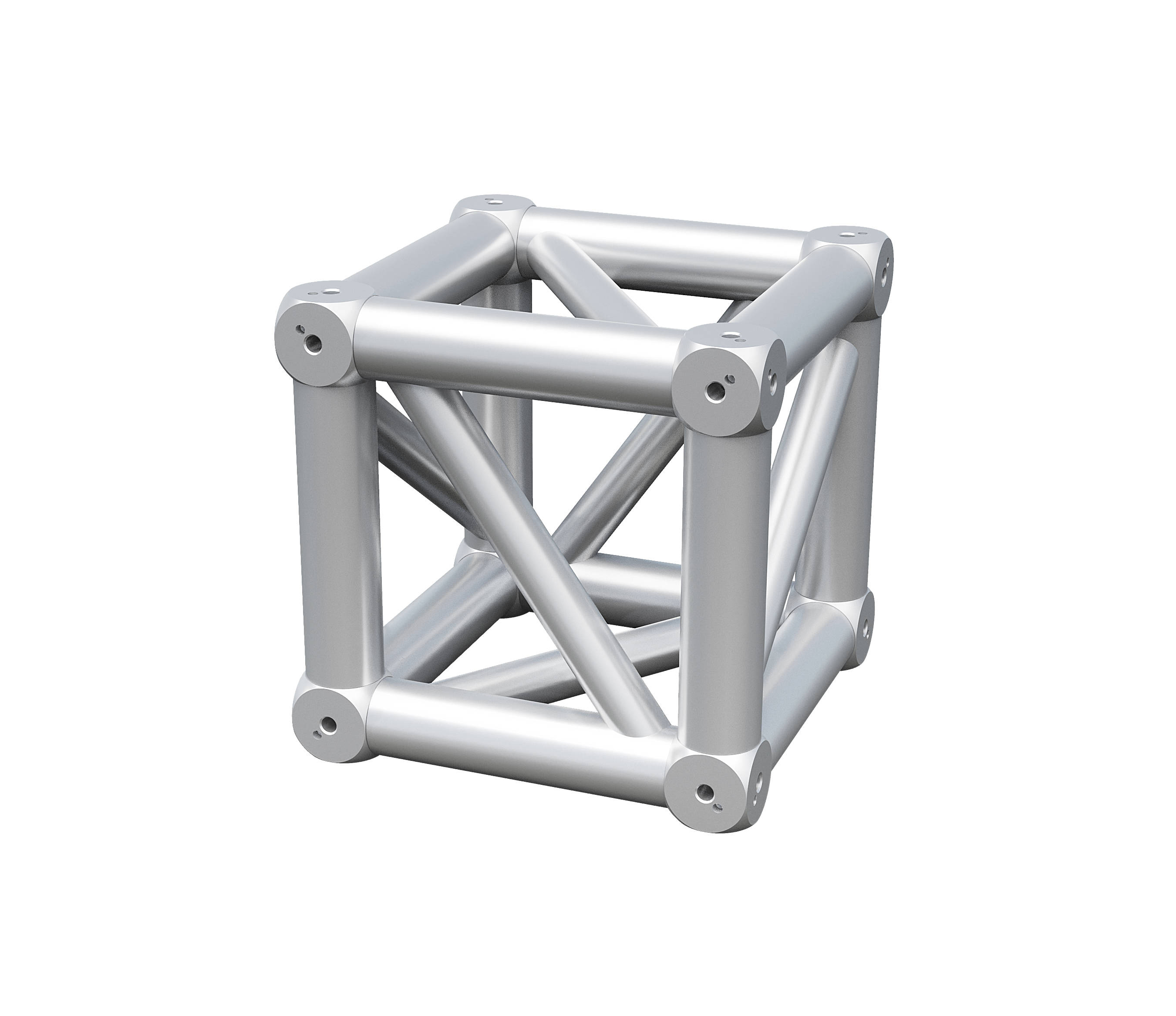

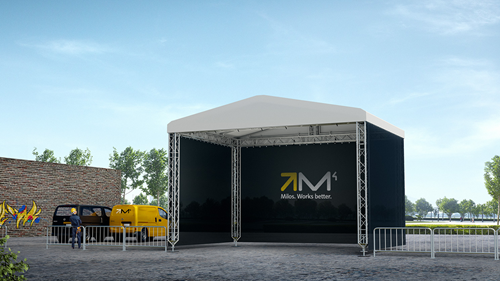

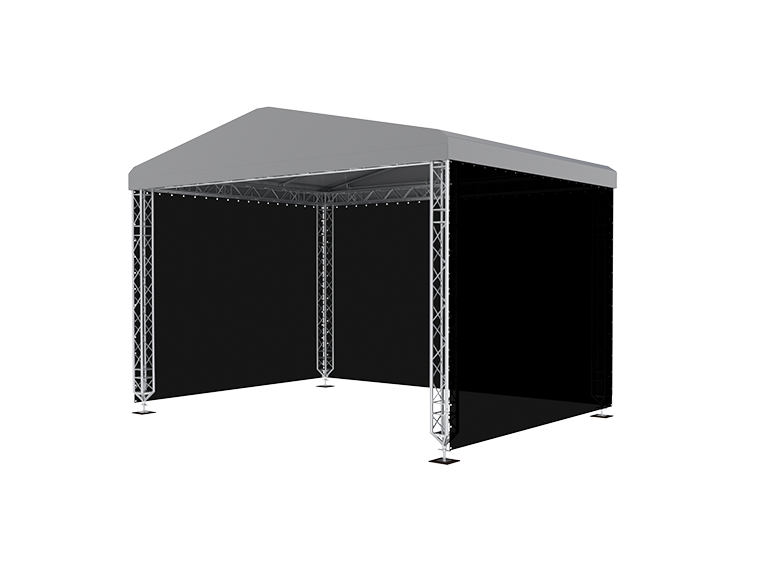

The MILOS 6x5m aluminium roof is designed for medium-sized events and requires NO GUY wires in its construction, due to the use of Multicube HD. Not only do you achieve the same stability as roofs with guy wires, but the total time for roof construction is decreased and ballast requirements are reduced.
No extra skills for guy wire attachment and pretension.


​Key benefits

  • Decreased times for roof construction
  • Reduced ballast requirements
  • No obstacles for artists
  • Clear entry area from all sides
  • Loading capacity of up to 30 kg /m plus 200kg for the PA
  • Adjust to terrain due to pedestal leg 572-950mm

Technical specification
Dimensions   Stage size 6x5 m 19.68x16.40 ft
A Internal width 6.13 m 20.11 ft
B Overall external width 6.73 m 22.08 ft
C Internal Depth 4.42 m 14.50 ft
D Overall external depth 5.00 m  16.40 ft
E Clearance 3.95 m 12.95 ft
F Overall height 4.95 m 16.24 ft

MR0 No Guy Wires Saddle Roof 6x5 m

The MILOS 6x5m aluminium roof is designed for medium-sized events and requires NO GUY wires.
Code
MR0 NGW 6x5 m
Size
6x5 m
MR0 No Guy Wires Saddle Roof 6x5 m
