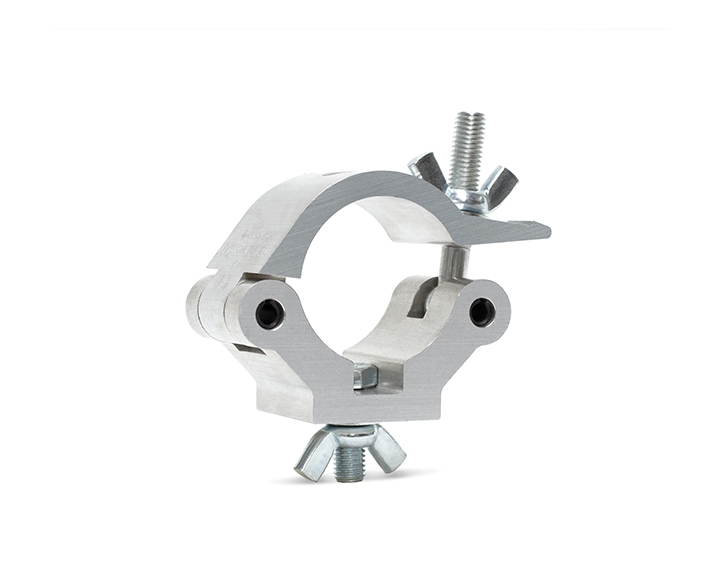

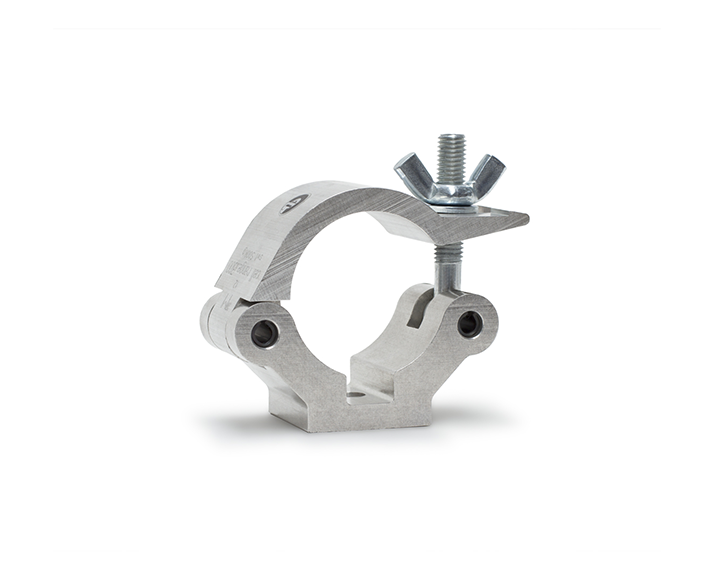

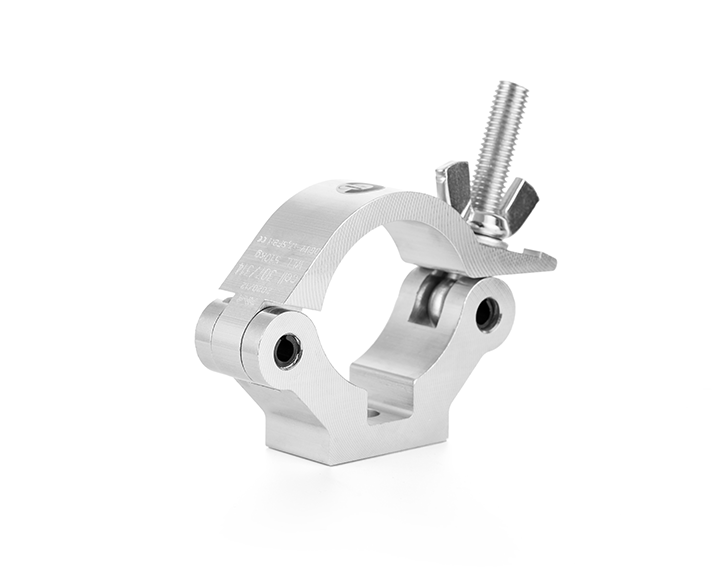

Cell 300 (tube 2 3/8''- 2 1/2'')

The 300 series cell clamps are designed for use with 60 – 63,5mm (2 3/8"– 2 1/2"). Mounting hole suitable for up to 13mm (1/2") bolt. Call or e-mail us today for more information or to request a quote.

Download PDF

Basic info

Description

The 300 series cell clamps are designed for use with 60 – 63,5mm (2 3/8"– 2 1/2"). Mounting hole suitable for up to 13mm (1/2") bolt. Call or e-mail us today for more information or to request a quote.

Key benefits

  • Designed to suit 60-63.5mm (2 3/8"-2 1/2") diameter tubes
  • Mounting hole suitable for up to 13mm (1/2") bolt
  • Precision extruded high tensile aluminium alloy
  • Polished surface with micropercussion marking
  • DGUV 17 / BGV C1 rating

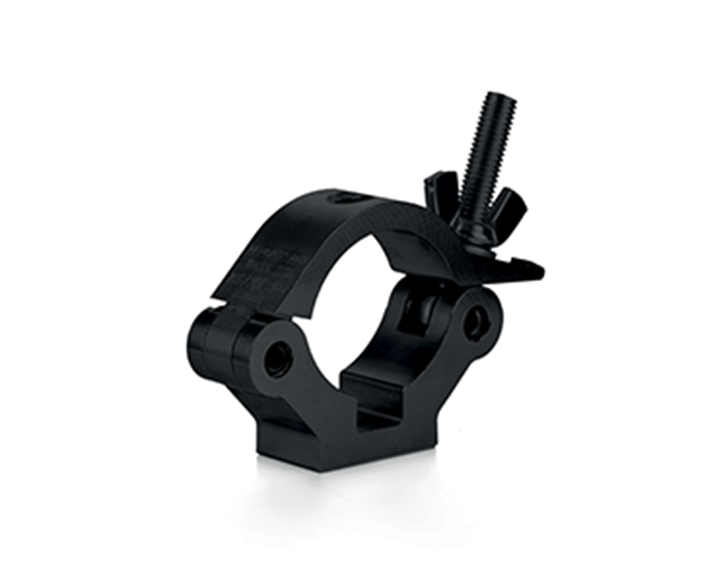

  • Powder coated versions available on request
  • M950 / 4GS-91 compatible
  • Rated with SF 8:1 (kg) DGUV-17/BGV C1 (SWL1)
  • Supplied with M12 closing bolt & wingnut
  • Rated with SF 4:1 (kg) 2006/42/EC (SWL2)
