HP-QTB-FLEX

HP-QTB-FLEX

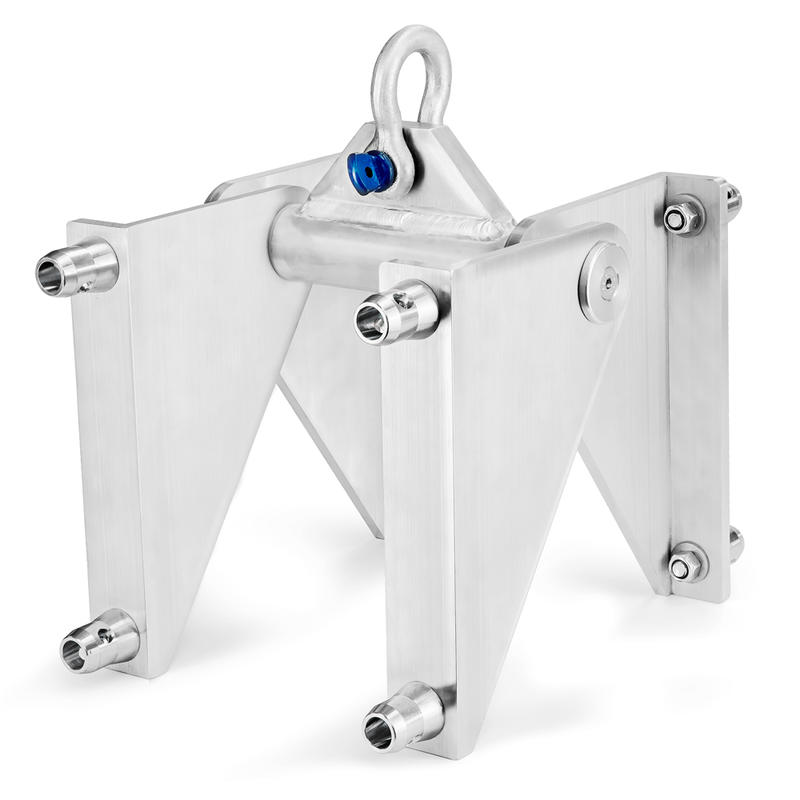

This hanging point is designed to be used with M290 Quatro trusses

Technical details

Code
HP-QTB-FLEX
SWL
2204 lbs (DGUV 17 / BGV C1)
Self Weight
21.37 lbs

Detailed information

Basic info

Description

This hanging point is designed to be used with M290 Quatro trusses. The suspension point is designed for overhead lifting. This unique solution allows lifting of long spans without the need of a 100% simultaneous lift. As the hanging point hinges, there is no shear and bending at the suspension point. The ideal solution for rigging long spans of truss by means of manual chain blocks. Version for M390 trusses available.

The M290, M390 comes in three connection system versions – B, F, and U – for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Key benefits

  • Design suitable for overhead lifting as per DGUV 17 / BGV C1
  • Stamped with WLL 1000kg and CE
  • Hinges upwards and downwards
  • Increased truss stability due to lower point of gravity by eccentric pick up point
  • Adapts 3.2 ton shackle
  • Unique bolted design
