Delta plate and Gravity bar

Delta plate and Gravity bar

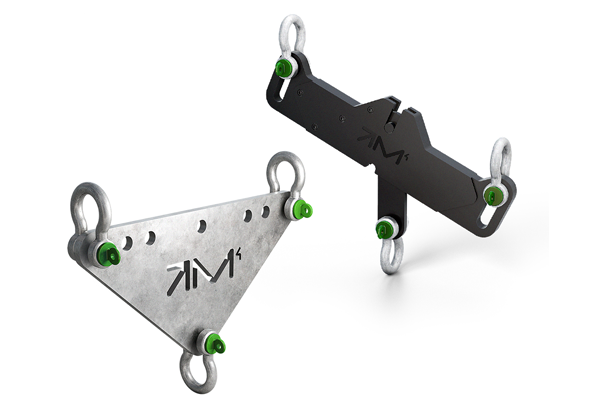

Delta Plate
The Milos Delta Plate is a robust rigging accessory made out of high-grade steel. It can be used for controlling the horizontal aiming of an array to distribute the weight of the array to two points.
Distributing the load
• Disassembling a chain hoist / switching from one attachment point to another/
• Adjusting PA line array systems
• WLL 4000 kg respectively 2000 kg when used over head (acc. to DGUV V17)
• Including dynamic factor of 1.2
https://www.milossystems.com/accessories/deltaplate


Gravity Bar- Two Products in One.
To achieve a perfectly balanced weight distribution even if one chain hoist moves slower than its partner.
Gravity Bar- Two Products in One.
The idea was based on the design and functionality of a Delta Plate. Perhaps one disadvantage of the Delta Plate is that is unlikely to achieve a perfect 100% load distribution of 50-to-50.
Thanks to our new design you will always achieve a perfectly balanced weight distribution even if one chain hoist moves slower than its partner.
When using the Gravity Bar upside down, meaning with a fixed inner hanger, you can adjust the bottom hanging point horizontally. This e.g. allows for adjusting the direction of a PA line array system.

• Two products in one
• Distribution of the load is always 50:50 between hanging points
• Allows for horizontal adjustment of the bottom hanging points
• WLL 4000 kg respectively 2000 kg when used over head (acc. to DGUV V17)
• Including dynamic factor of 1.2
https://www.milossystems.com/accessories/gravitybar
