CELL131|anodized

CELL131|anodized

Technical details

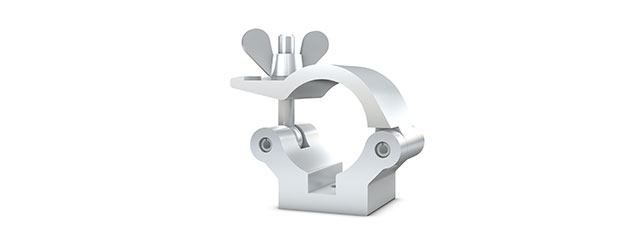

Basic Clamp can be used for most applications.
Code
CELL131|anodized
Main Tube
1 1/4''- 1 3/8''
SWL
SWL1: 353 lbs | SWL2: 728 lbs
Self Weight
0.20 lbs

Detailed information

Basic info

Basic Clamp can be used for most applications.


  • Rated with SF 8:1 (kg) DGUV-17/BGV C1 (SWL1)
  • Rated with SF 4:1 (kg) 2006/42/ES (SWL2)

Key benefits

  • Fits both 32 mm (1 1/4”) and 35 mm (1 3/8”) truss tubes
  • 160 kg (353 lbs) WLL* in accordance with DGUV 17
  • CE certified
  • Safety Factor 8:1
  • Interchangeable M10 screw ensures flexible attachment point
  • anodized

*WLL = Working Load Limit
